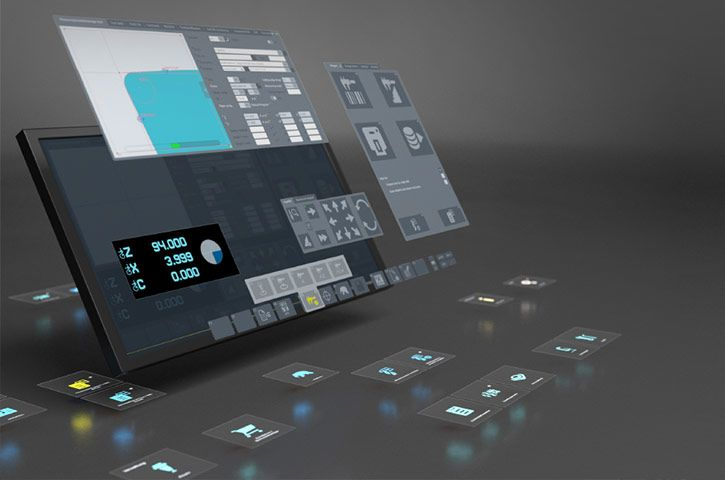

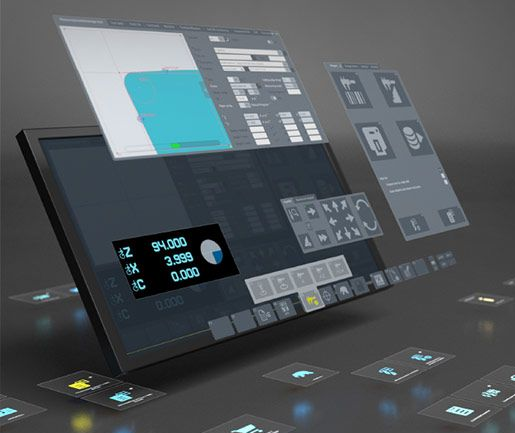

| The new »pilot 4.0« measuring machine software combines form and function based on one common denominator: performance. | Work processes can only be executed effectively and in the shortest possible time if features are accessible and processes are easy to understand. |  Simple – displays clear symbols for every function Modern – offers a state-of-the-art work environment Motivating – achieve success quicker than ever before Efficient – always takes the most direct path |
| Since 2006, the ZOLLER measuring device software »pilot« has been convincing like no other with its intuitive software interface, numerous functions and features and openness to third-party systems. With »pilot 4.0« we have not revolutionized our award-winning software »pilot 3.0«, but have done what really matters: we have brought it into line with the future. |

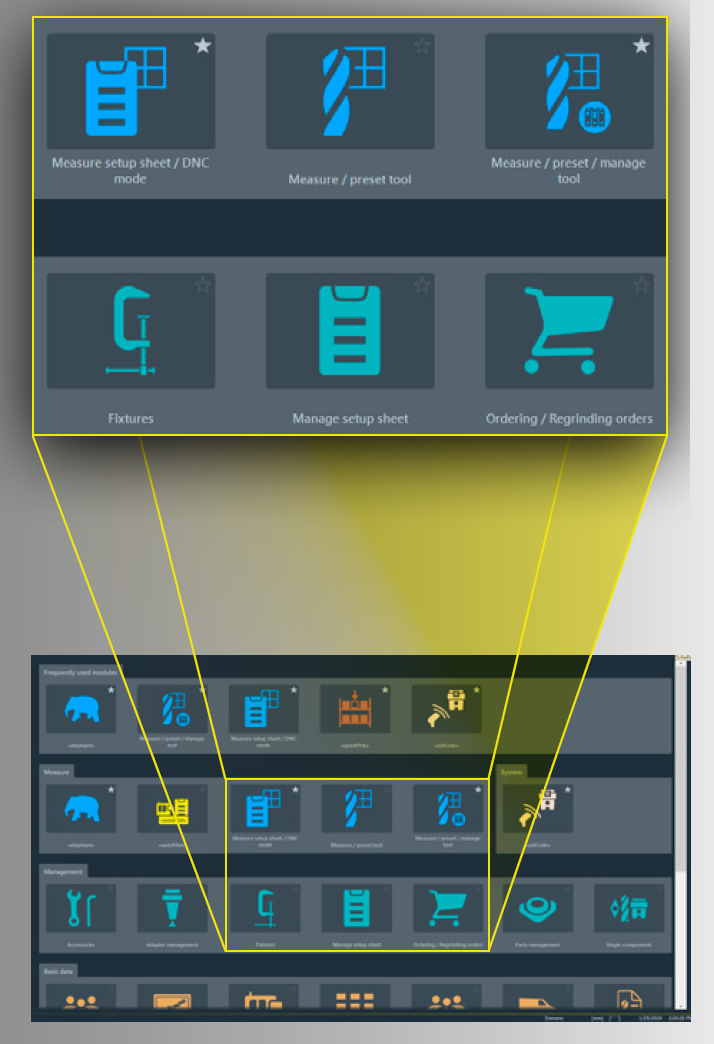

| Product Highlights Selections: New Main Menu Structure Clear design and flexible organization for programs and tools – the new main menu in »pilot 4.0« always adapts to your tasks. |
||
 |
|
Makes organization a priority and upon launch displays only your Cockpit All of your favorites are displayed on the first row, so you can activate key functions directly with just a click You set your identity via color codes or menu groups – to help you focus and select functions quickly |

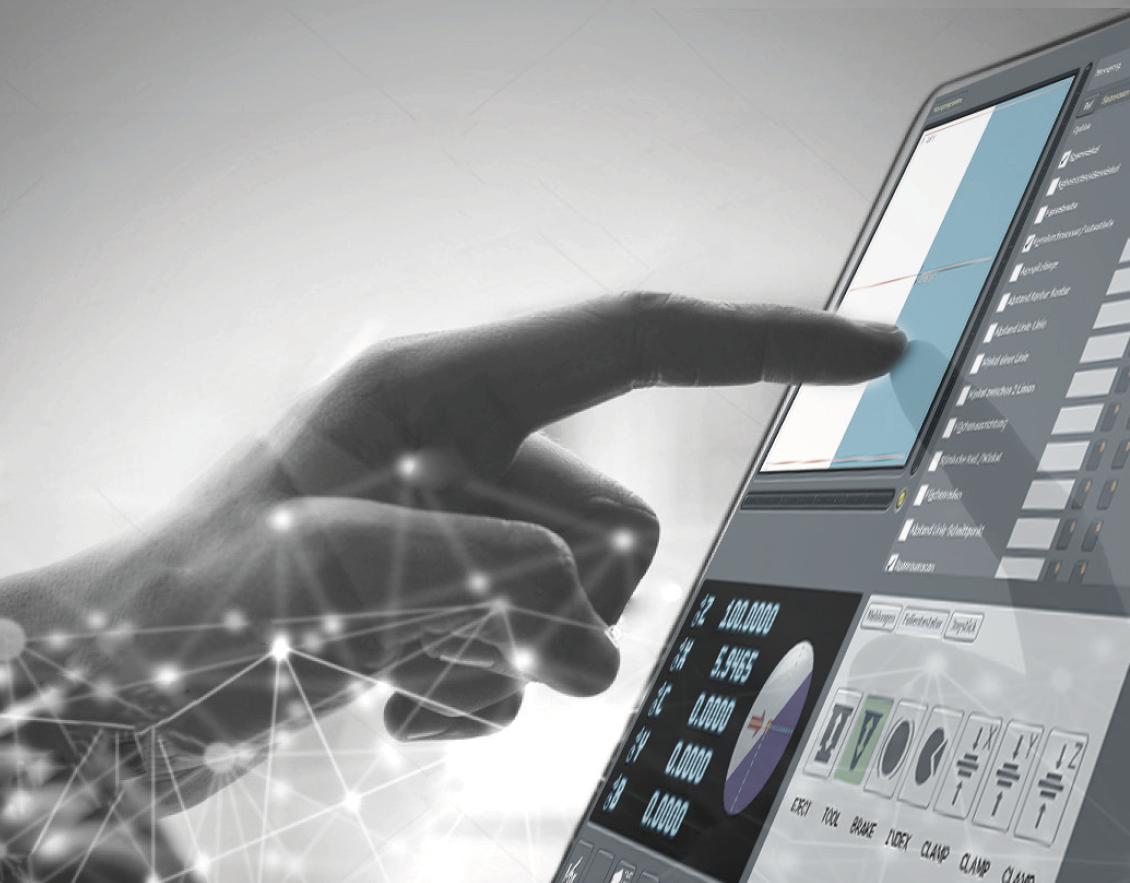

Customized: User interface After you log in with your ID, »pilot 4.0« displays the specific, personal work environment you have created. |
||
 |
|
Create personalized button menus via drag & drop Group function buttons for quick selection Highlight frequently used functions as favorites Label groups with custom color codes for faster guidance |

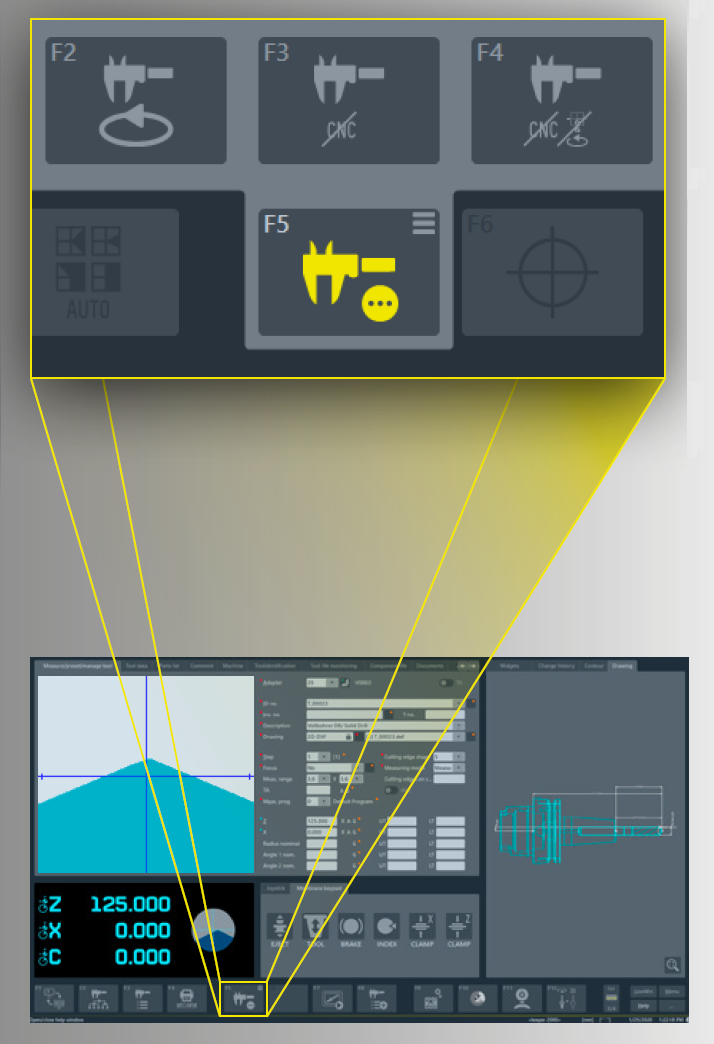

Configurable: New Buttons Click customizable buttons and widgets to enable all of your key work functions quickly and directly. |
||
 |
|

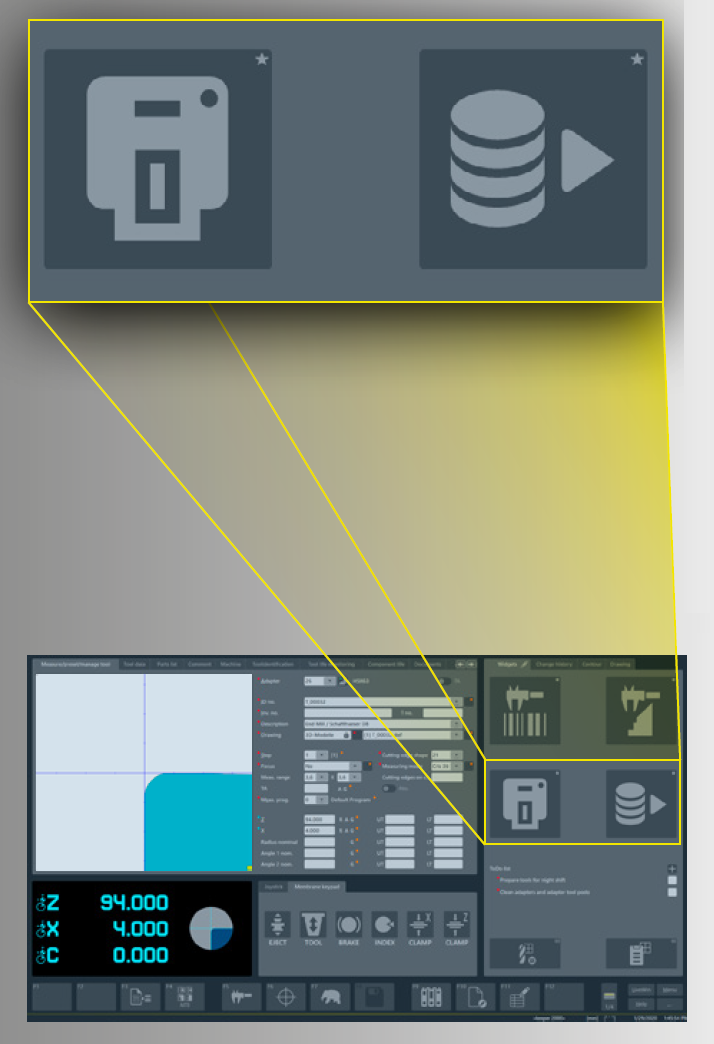

Large widget area Access your widgets from anywhere – on any ZOLLER machine, in the ZOLLER TMS web version, and at any ZOLLER TMS workplace To-do lists as widgets: all of your tasks with just one click Everything just how you like it: select widget position, size and appearance |

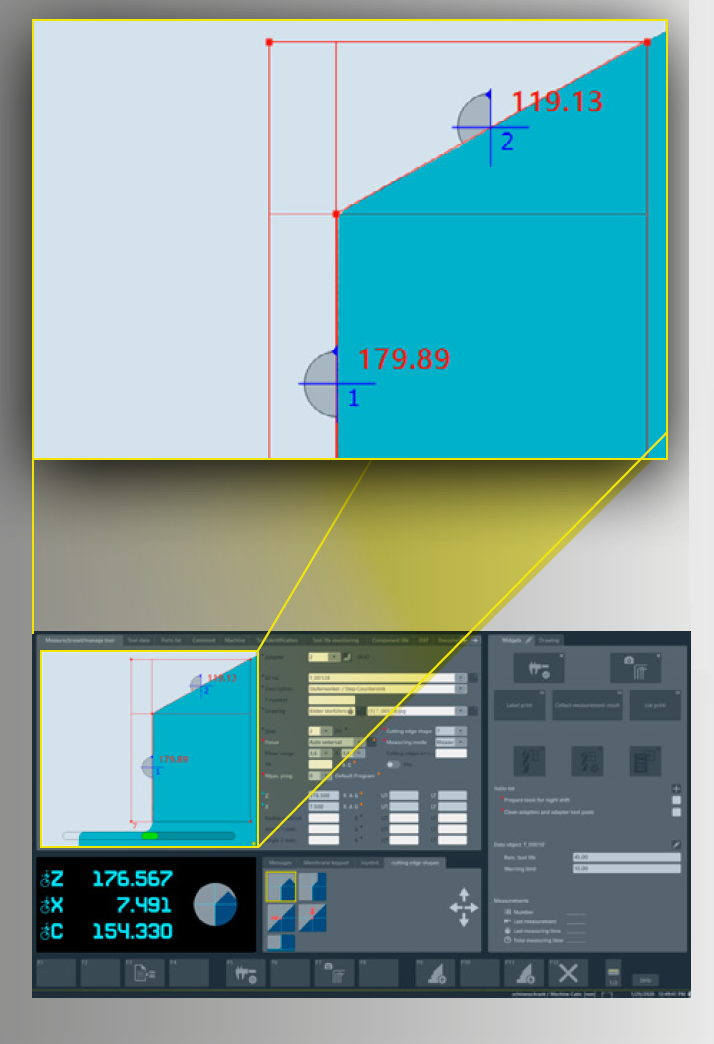

Large: New Cutting Edge Image »pilot 4.0« makes precision measurement down to the μm easy for anyone. Modern algorithms handle focus and automatic detection of cutting edge forms, numbers of cutting edges, numbers of stages and selecting the measuring range. |
||
 |
|
Large cutting edge display as a central element of the “Tool measurement, presetting, and management” module Detailed precision and easy overview: makes it easier to detect cutting edge geometries and displays key data at a glance »pilot 4.0« reorganizes the angle display so you can quickly compare the camera image, drawing, and tool Multiple angle displays in the camera window with angle mode individually selected for each angle |
We reserve the right to make technical changes.
