Threading Taps with long flutesISO Metric coarse thread DIN 13
 Heat treated and heat-resistant steelsup to 1.000 N/mm2 or 30 HRC   |
 High speed steel class E with 3%vanadium 1.3344 (EMo5V3) (M-3/2) |

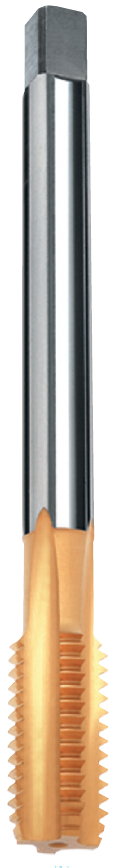

 T6462700064610 |

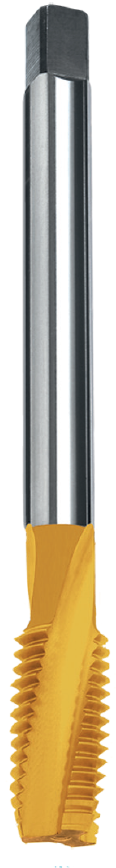

 T6402700064010 |
||||||||
HOLE |
≤ 3 x d1 Blind and through hole |
≤ 3 x d1 Blind hole |
|||||||||
 Chamfer lead acc. to DIN 2197 |
C = 2.5xP | C = 2.5xP | |||||||||
| LIMIT | 6HX | 6HX | |||||||||
| COATING |  TiN coating (Titanium nitride) |
TiN coating (Titanium nitride) |
|||||||||
| ≈ DIN | FERG | FERG | |||||||||
| ORDER No. EDP = Nr.+ ★ |
2700064610* T646 |
2700064010* T640 |
|||||||||
| l1 mm |
l2 mm |
FERG |  mm |
d1 mm |
P mm |
★ | |||||
| d2 mm |
a mm |
||||||||||
| Z | Z | ||||||||||
| 220 | 30 | 16 | 12 | 17.5 | M 20 | (2.5) | 200 | 4 ▼ | 4 ▼ | ||
| 240 | 36 | 18 | 14.5 | 21 | M 24 | (3) | 240 | 4 ▼ | 4 ▼ | ||
| 270 | 42 | 22 | 18 | 26.5 | M 30 | (3.5) | 300 | 4 ▼ | 4 ▼ | ||
| 290 | 42 | 25 | 20 | 29.5 | M 33 | (3.5) | 330 | 4 ▼ | 4 ▼ | ||
| 310 | 48 | 28 | 22 | 32 | M 36 | (4) | 360 | 5 ▼ | 5 ▼ | ||
| ■ = Stock | EDP: W640 M 24 = 2600064014240 | ||||||||||
