   2-jaw Chuck Serration 90° Tongue and Groove Flange Disc Asymmetrical Workpiece Length Machining Side Machining |

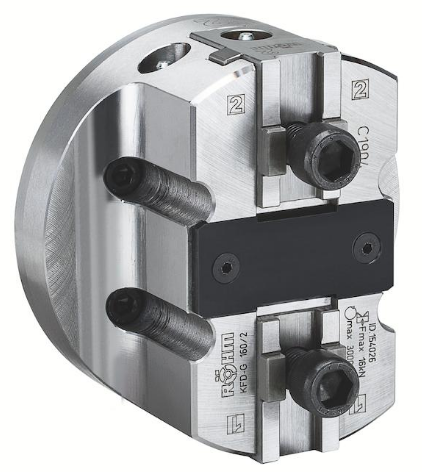

Power Chucks without Through-hole KFD-G - large jaw stroke  |

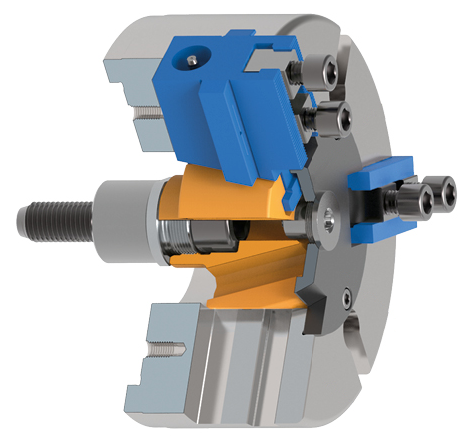

APPLICATION Power chuck without through-hole for clamping workpieces with collars or shoulders (e.g. fittings), without having to give up high clamping force. TYPE Power chuck is available with cylindrical centre mount. 2-jaw version with serration 90° (sizes 125 + 160 with tongue and groove). TECHNICAL FEATURES - Power transmission by means of wedge hook system - Direct lubrication of base jaws and pistons (4 lubrication points) - Full steel design |
 |
CUSTOMER BENEFITS » Minimization of the interference contours of the chuck by means of bevels on the chuck body » Excessively high jaw stroke for flexible chuck use » Long service life - sealed against dirt and water » High clamping precision thanks to proven wedge hook system |
|
| Included in the scope of delivery: tongue and groove Chuck, chuck and jaw mounting screws (without top jaws) Included in the scope of delivery: serration Chuck, chuck and jaw mounting screws, slot nuts (without top jaws) |
|
We reserve the right to make technical changes.
