   power operated |

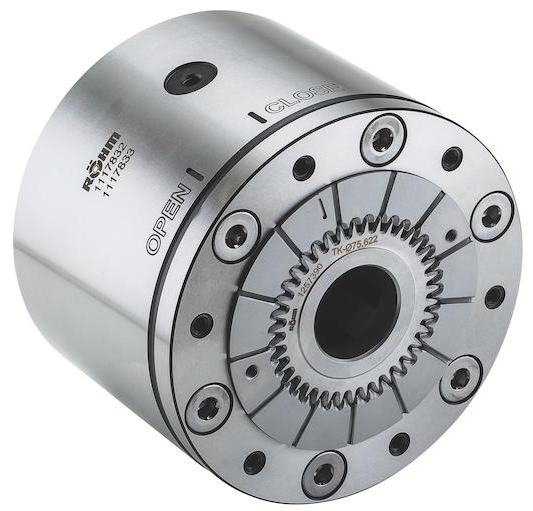

Power-operated Collet Chucks KZF-S - with axial tightening, bayonet quick lock  |
APPLICATION External clamping of round workpieces with smooth or toothed outer geometry for turning, milling, grinding and measuring operations. Clamping device/clamping optimal adapted to the workpiece/machining process. Ideal for short clamping lengths. TYPE Force-actuated. TECHNICAL FEATURES - Manual lubrication/low-maintenance - Prepared for internal media feed-through, e.g. air and coolant - Prepared for internal workpiece stop - Collet chucks and internal workpiece stop can be individually adapted to the workpiece - Sealing against chips CUSTOMER BENEFITS » Sturdy clamping of the workpiece thanks to axial tension against the workpiece stop |
| » Quick change of collet chuck by bayonet lock » High concentricity, axial run-out and repeatability » High flexibility thanks to modular system |
We reserve the right to make technical changes.
