   power operated |

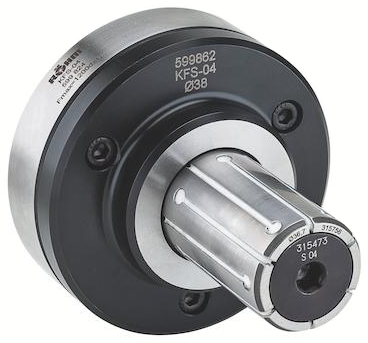

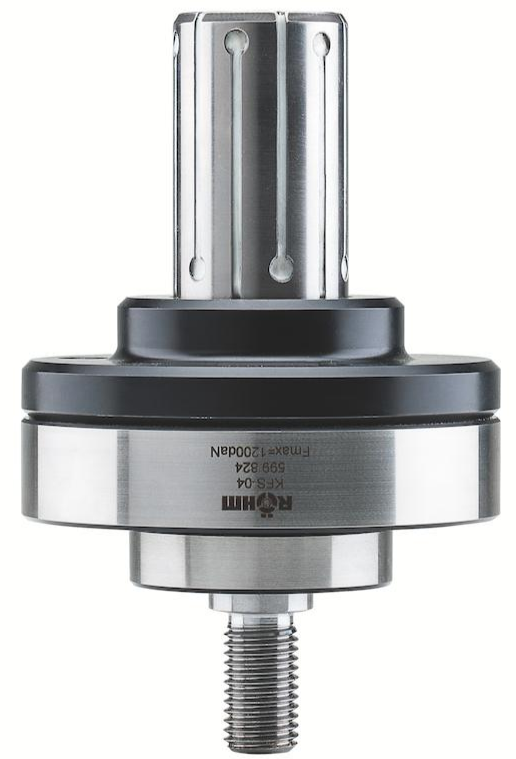

Cartridge Mandrel KFS - with axial tightening, force-actuated   |
APPLICATION Internal clamping of round workpieces. Turning, milling, grinding and toothing operations, as well as for balancing and measuring. Ideal for thin-walled and long workpieces or long clamping lengths. TYPE Force-actuated. Clamping sleeves optionally vulcanized. Convertible to MFS (required new intermediate piece). TECHNICAL FEATURES - Hardened, low-wear design - Integrated lubrication - Air sensing prepared |
 |
CUSTOMER BENEFITS » Sturdy clamping of the workpiece thanks to axial tension against the workpiece stop » High concentricity, axial run-out and repeatability » Light weight and reduced height thanks to compact design » High flexibility thanks to modular system » Fast change of clamping sleeves thanks to central clamping screw |
We reserve the right to make technical changes.
