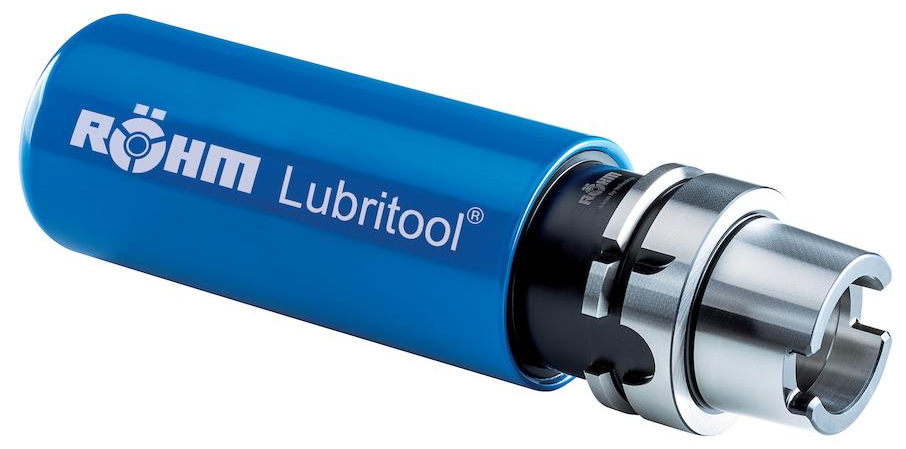

Lubrication Device LUBRITOOL®  |
APPLICATION For automated and manual maintenance of RÖHM clamping sets TYPE HSK-A for tool shafts A. CUSTOMER BENEFITS » Optimal lubrication – always the ideal lubricant, just at the right time, in the right quantity and place » No manual intervention needed – no failure to carry out maintenance » Reduced maintenance times – 5 seconds rather than 5 minutes » Compact design for more work space within the machine |
| Lubritool® lubrication device | ID 1334394 | ID 1334306 | ID 1330233 | ID 1323415 |
| Interface design (ISO12164-1) | HSK-A40 | HSK-A50 | HSK-A63 | HSK-A100 |

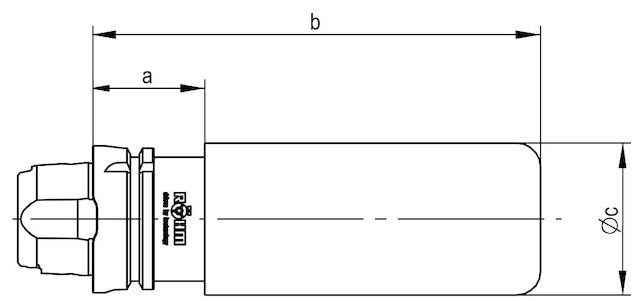

| a mm | 45 | 46.1 | 48 | 50.5 |
| b mm | 188.6 | 189.6 | 191.5 | 194 |
| Ø c mm | 65 | 65 | 65 | 65 |
| Weight kg (without cartridge) | 1.0 | 1.1 | 1.4 | 2.7 |
| Weight kg (with cartridge) | 1.2 | 1.3 | 1.6 | 2.9 |
| Lubrication applications | 100 cycles | 100 cycles | 100 cycles | 100 cycles |
| Lubriflux grease cartridge (1 piece) | ID 1339629 | ID 1339629 | ID 1339629 | ID 1339629 |
| Lubritool® is approved for all clamping sets from RÖHM and OTT-JAJOB.. | ||||
We reserve the right to make technical changes.
