   power operated |

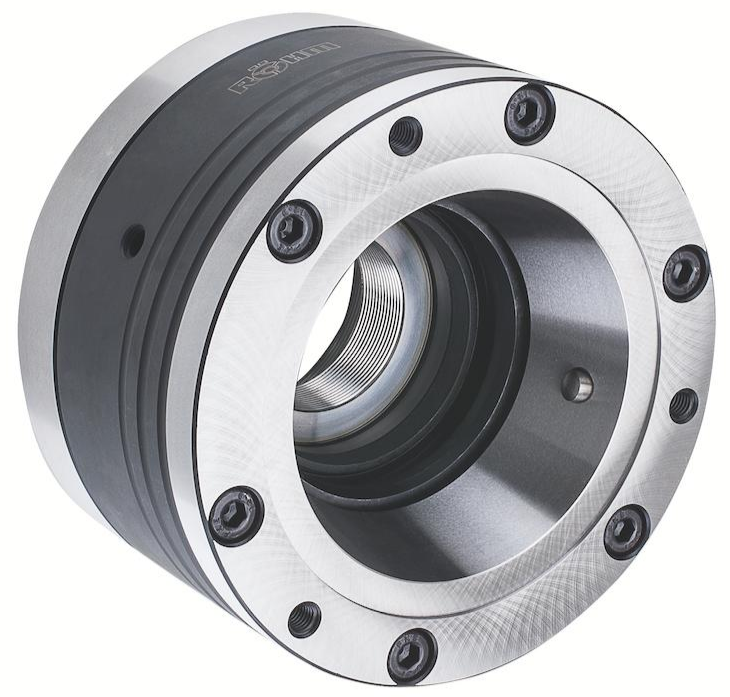

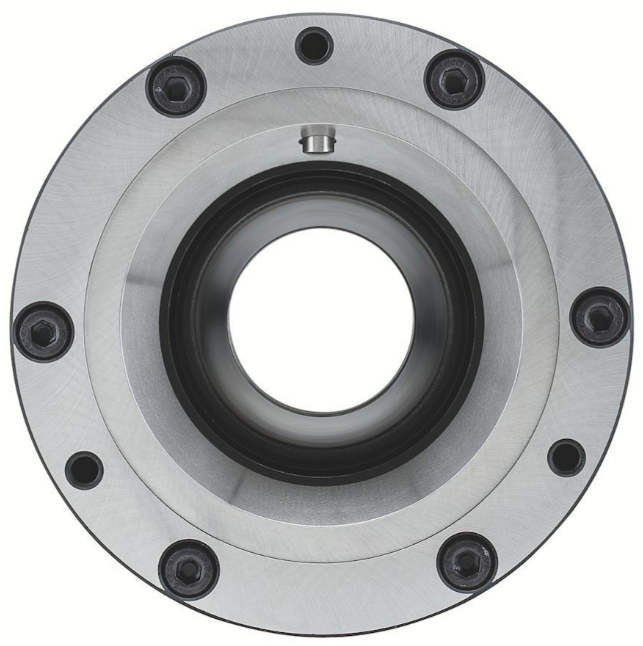

Collet Chucks CAPTIS-AF - axially fixed collet chuck   |
APPLICATION External clamping of round workpieces, as well as square and hexagon profiles. Turning, milling, grinding operations as well as for measuring. Ideal for delicate workpieces, short clamping lengths and for use in opposed spindles or counter spindles. TYPE Force-actuated. Optional through-hole for bar machining by removing the internal workpiece stop. Axially fixed collect chuck, no axial tension against internal workpiece stop. TECHNICAL FEATURES - Manual lubrication - Collet chucks with exchangeable and oil-resistant vulcanized rubber CUSTOMER BENEFITS » Maximum flexibility thanks to modular design and versatile combination and retrofitting options |
| » Low weight and low height thanks to compact design for more work area in the machine » Short setup and non-productive times thanks to fast collect chuck change as well as great expansion of the collet chucks » No damage, impressions on workpieces due to axially fixed collect chuck » Prepared for internal workpiece stop and front stop |
We reserve the right to make technical changes.
