H Slim -
Standard design

APPLICATION
For counter-clamping workpieces on turning and grinding machines.  Especially suited for cramped work area between centre point and workpiece.

TYPE
Compact design with minimum casing diameter.

TECHNICAL FEATURES
- Body hardened and ground
- Tip angle 60°
CUSTOMER BENEFITS
» Enlarged work area and better workpiece accessibility thanks to narrow casing diameter
» Maximum rigidity at high speeds thanks to compact design
» Maximum concentricity deviation of 0.005 mm for maximum precision


A06

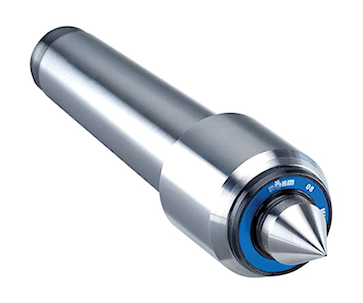

H Slim - Standard design, with small casing diameter, body hardened and ground - tip angle 60°
Item No.  005336  005429  005469  005490  005547
 Mount MT  2  3  4  5  6
 Size  02  04  08  10  14

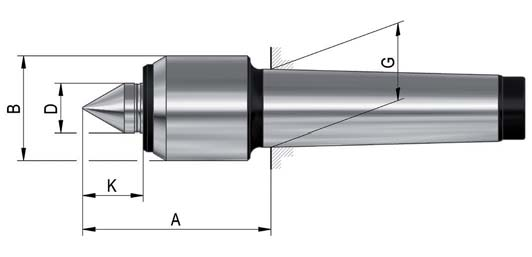

 A mm  62  62  75.5  106  143
 B mm  32  34  42  58  80
 D mm  15  15  20  30  42
 G mm  17.78  23.825  31.267  44.399  63.348
 K mm  19.5  19.5  24.5  37  49.5
 Weight approx. g  300  400  1000  2600  7100
 Workpiece weight max. kg  200  400  800  1600  3500
 Concentricity deviation max. mm  0.005  0.005  0.005  0.01  0.02
 Speed max. min-1  7000  7000  6300  4300  3000



We reserve the right to make technical changes.
