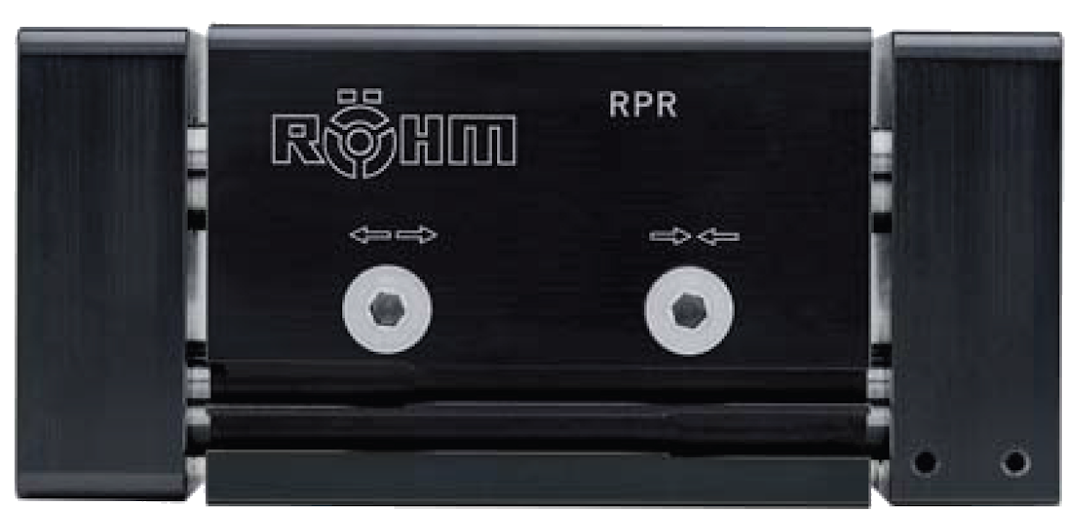

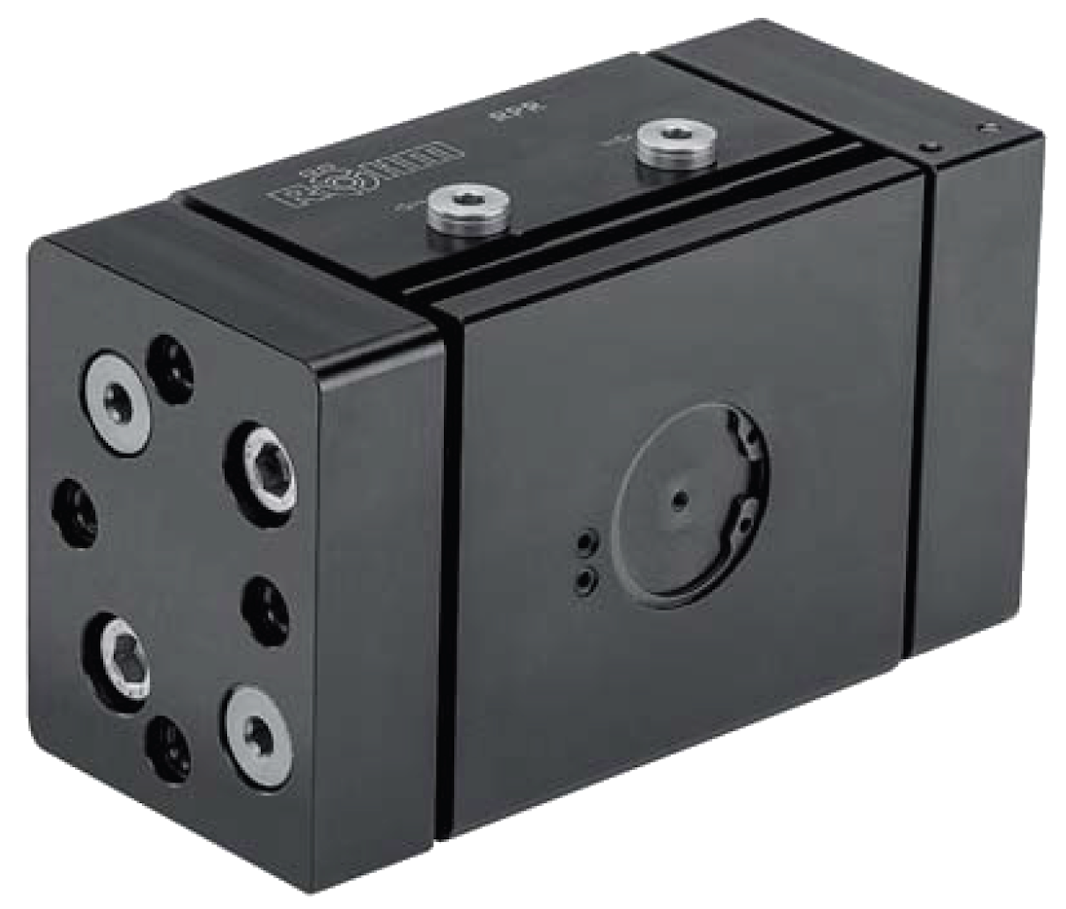

Application-Specific Grippers Compact Long Stroke Gripper RPR  |
APPLICATION Compact long stroke gripper for handling large parts and high part variety. TYPE Available in sizes 22 and 42 in especially compact design. High precision thanks to double-piston drive synchronized via gear wheel. |
| TECHNICAL FEATURES - Centrically clamping in compact design made of high-strength, hard-coated aluminium alloy - All functional parts made of hardened steel for maximum service life. - Robust double-piston guide in compact housing, pneumatically actuated. - Position can be queried using inductive and magnetic sensors. - Integrated damping ring in the end positions for high availability. - Other sizes available on request. - Optionally available with FKM seals for higher temperatures up to 150°C (on request). CUSTOMER BENEFITS » Compact design with long jaw stroke for especially cramped spatial conditions » High gripping force with simultaneously long jaw stroke by means of double-acting pressure pistons » Gripper fingers mounted laterally for minimum load distance » Maximum flexibility thanks to versatile connection and fastening options |
We reserve the right to make technical changes.
