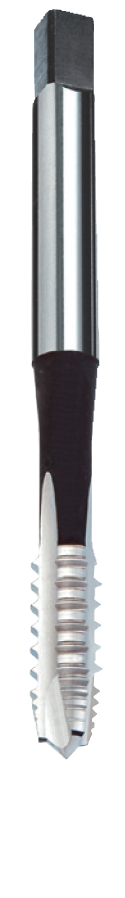

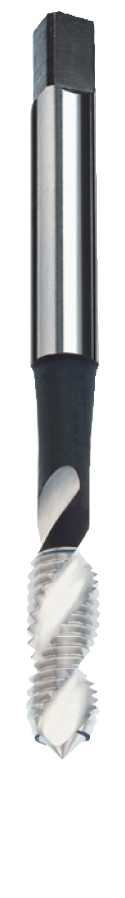

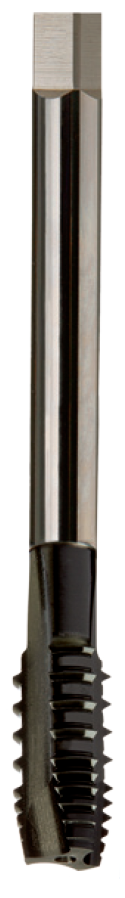

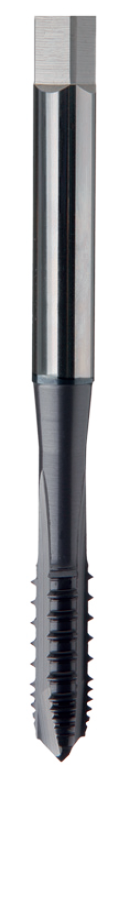

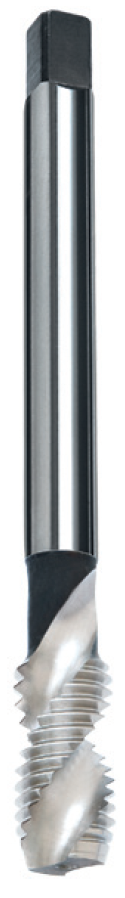

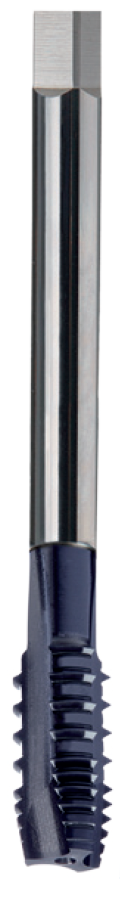

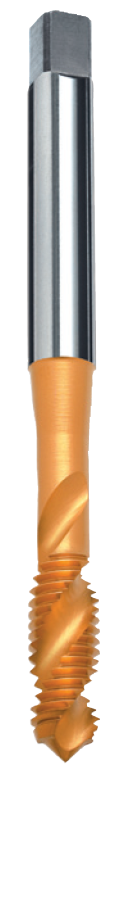

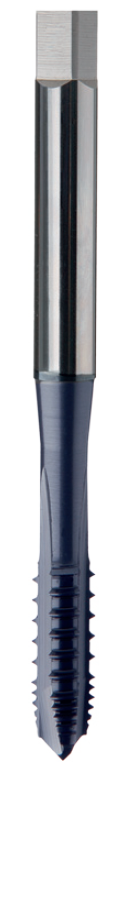

Ferg Threading Taps M 130,140,130A,140A

Threading Taps
ISO Metric coarse thread DIN 13

Wrought aluminium alloys 6%>Si<10% (long-chipping)									High speed steel class E with 3% vanadium 1.3344 (EMo5V3) (M-3/2) High speed steel 1.3343 (DMo5) (M-2)		DIN 371 130A 2000013000	DIN 376 130 2500013000	DIN 371 T130A 2000013010	DIN 376 T130 2500013010	DIN 371 AC130A 2000013017	DIN 376 AC130 2500013017	DIN 371 DL130A 2000013019	DIN 376 DL130 2500013019	DIN 371 140A 2000014000	DIN 376 140 2500014000	DIN 371 T140A 2000014010	DIN 376 T140 2500014010
									HOLE		≤ 2 x d₁ Through hole		≤ 2 x d₁ Through hole		≤ 2 x d₁ Through hole		≤ 2 x d₁ Through hole		≤ 2 x d₁ Blind and through hole		≤ 2 x d₁ Blind and through hole
									Chamfer lead acc. to DIN 2197		B = 4xP+AZ		B = 4xP+AZ		B = 4xP+AZ		B = 4xP+AZ		C = 2.5xP		C = 2.5xP
									LIMIT		ISO 2 (6H)		ISO 2 (6H)		ISO 2 (6H)		ISO 2 (6H)		ISO 2 (6H)		ISO 2 (6H)
									COATING		Bright (without Coating or without Surface treatment)		TiN coating (Titanium nitride)		AlCrN coating (Aluminium Chrome Nitride)		Diamond-like carbon		Bright (without Coating or without Surface treatment)		TiN coating (Titanium nitride)
									DIN		371	376	371	376	371	376	371	376	371	376	371	376

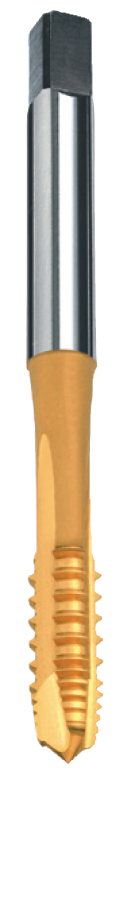

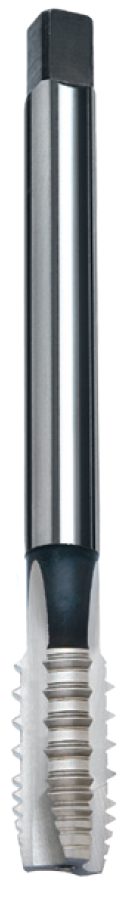

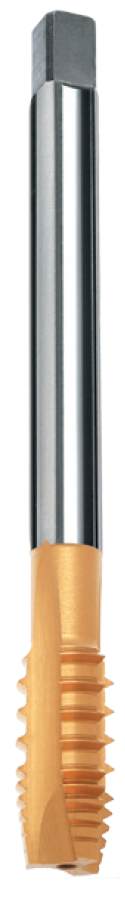

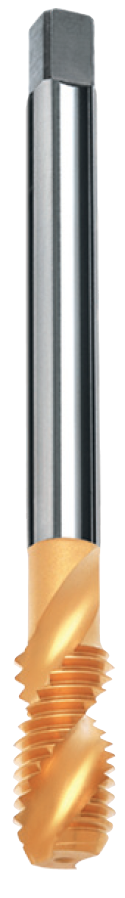

									ORDER No. EDP = Nr.+ ★		DIN 371 2000013000* 130A		DIN 371 2000013010* T130A		DIN 371 2000013017* AC130A		DIN 371 2000013019* DL130A		DIN 371 2000014000* 140A		DIN 371 2000014010* T140A
l₁ mm	l₂ mm	l₃ mm	DIN 371		DIN 376		mm	d₁ mm	P mm	★	DIN 376 2500013000* 130		DIN 376 2500013010* T130		DIN 376 2500013017* AC130		DIN 376 2500013019* DL130		DIN 376 2500014000* 140		DIN 376 2500014010* T140
			d₂ mm	a mm	d₂ mm	a mm
											Z		Z		Z		Z		Z		Z
45	9	-	2.8	2.1			1.6	M 2	(0.4)	020	3		3		3		3		2 ■		2
45	9	-	2.8	2.1			1.75	M 2.2	(0.45)	022	3		3		3		3		2		2
45	9	-	2.8	2.1			1.9	M 2.3	(0.4)	023	3		3		3		3		2		2
50	9	-	2.8	2.1			2.05	M 2.5	(0.45)	025	3		3		3		3		2 ■		2
50	9	-	2.8	2.1			2.1	M 2.6	(0.45)	026	3		3		3		3		2		2
56	11	16	3.5	2.7	2.2	-	2.5	M 3	(0.5)	030	3 ■		3 ■		3 ■		3 ■		2 ■		2 ■
56	12	17	4	3	2.5	2.1	2.9	M 3.5	(0.6)	035	3		3		3		3		2		2
63	13	19	4.5	3.4	2.8	2.1	3.3	M 4	(0.7)	040	3 ■ ■		3 ■		3 ■		3 ■		2 ■		2 ■
70	15	29	6	4.9	3.5	2.7	4.2	M 5	(0.8)	050	3 ■ ■		3 ■		3 ■		3 ■		2 ■		2 ■
80	17	30	6	4.9	4.5	3.4	5	M 6	(1)	060	3 ■ ■		3 ■		3 ■		3 ■		2 ■		2 ■
80	17	31	7	5.5	5.5	4.3	6	M 7	(1)	070	3 ■ ■		3 ■		3 ■		3 ■		2 ■		2 ■
90	20	35	8	6.2	6	4.9	6.8	M 8	(1.25)	080	3 ■ ■		3 ■ ■		3 ■ ■		3 ■		2 ■ ■		2 ■ ■
100	22	38	10	8	7	5.5	8.5	M 10	(1.5)	100	3 ■ ■		3 ■ ■		3 ■ ■		3 ■		2 ■ ■		2 ■ ■
110	24				9	7	10.2	M 12	(1.75)	120	3 ■		3 ■		3 ■		3 ■		2 ■		2 ■
110	26				11	9	12	M 14	(2)	140	3		3		3		3		2 ■		2 ■
110	27				12	9	14	M 16	(2)	160	3		3		3		3		2 ■		2 ■
125	30				14	11	15.5	M 18	(2.5)	180	4		4		4		4		2		2
140	32				16	12	17.5	M 20	(2.5)	200	4		4		4		4		3		3
140	32				18	14.5	19.5	M 22	(2.5)	220	4		4		4		4		3		3
160	34				18	14.5	21	M 24	(3)	240	4		4		4		4		3		3
160	36				20	16	24	M 27	(3)	270	4		4		4		4		4		4
180	40				22	18	26.5	M 30	(3.5)	300	4		4		4		4		4		4
180	40				25	20	29.5	M 33	(3.5)	330	4		4		4		4		4		4
200	50				28	22	32	M 36	(4)	360	4		4		4		4		4		4
200	50				32	24	35	M 39	(4)	390	4		4		4		4		4		4
200	56				32	24	37.5	M 42	(4.5)	420	4		4		4		4		4		4
											■ = Stock				EDP: T140A M 5 = 2000014010050

We reserve the right to make technical changes.
