   3-jaw Chuck Tongue and Groove Pipe Bar Flange Disc Length Machining Side Machining |

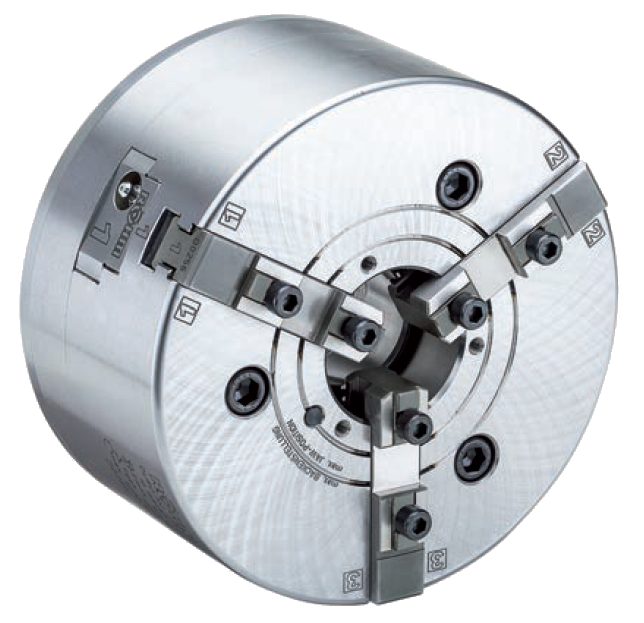

Power chucks with quick jaw change system DURO-NC - central jaw unlocking  |

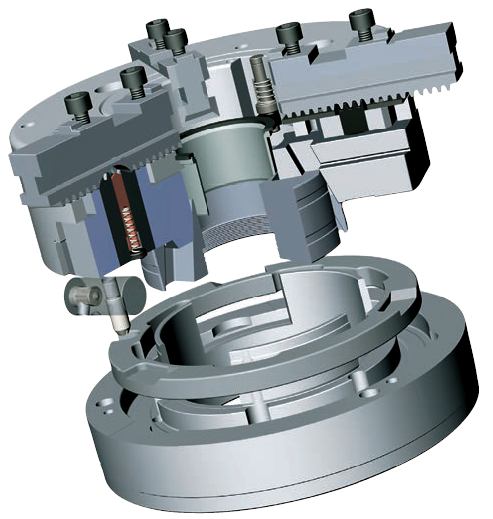

APPLICATION Standard power chuck with through-hole for flexible use thanks to quick jaw change system. TYPE Power chuck available with cylindrical centre mount. 3-jaw version. TECHNICAL FEATURES - Central locking of the quick jaw change system - Power transmission by means of wedge hook system - Base jaws angle-serrated CUSTOMER BENEFITS » Universal: jaws can be offset, exchanged or turned » For high speeds thanks to lightweight jaws |
 |
| » High clamping precision and clamping force thanks to proven wedge hook system » Possible to use jaw units of the DURO manual clamping chuck |
|
| Note: The safety key can only be pulled out once the jaws are locked. This setup in combination with the key switch integrated in the machine also prevents the machine spindle from starting up unintentionally when the jaws are unlocked. Included in the scope of delivery: Chuck, chuck and jaw mounting screws, base jaws, safety wrench, mounting wrench |
|
We reserve the right to make technical changes.
