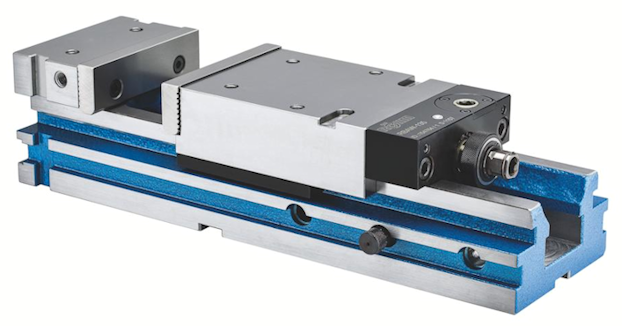

NC Power Vices
RBAW - with angle drive,
with power transmitter

APPLICATION
For universal use on milling machines and machining centers.

TYPE
Clamping system mechanical-hydraulic with power transmitter, manually operated.


TECHNICAL FEATURES
- Steel body with stationary clamping jaw, drop forged
- Automatic reclamping in the hydraulic unit by means of built-in disc springs
- All wear parts, especially the jaw guides, are hardened and ground
- Robust flat-trajectory guide of moving jaw
- With normal jaws and hand crank
CUSTOMER BENEFITS
» Horizontal, vertical and laterally clampable with height adjustment ±0.02
» Sturdy, maintenance-free spindle
» Additional stepped jaws or special form jaws can be fastened to the surface of the stationary and moving jaw
» Drive spindle is protected against dirt and chips
» Large clamping range
» Short version of moving jaw (made of steel) results in short design length, even for max. clamping width
» With angle drive



A27

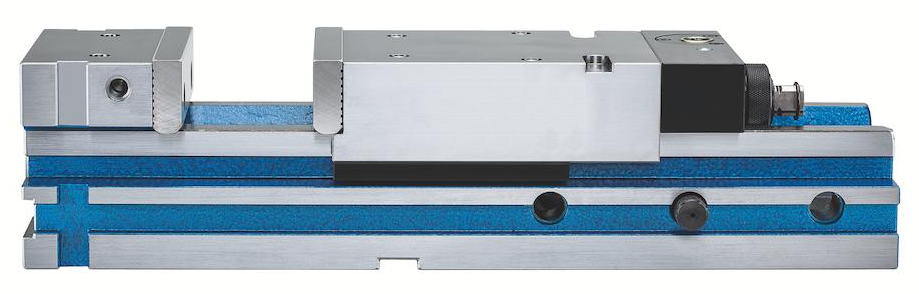

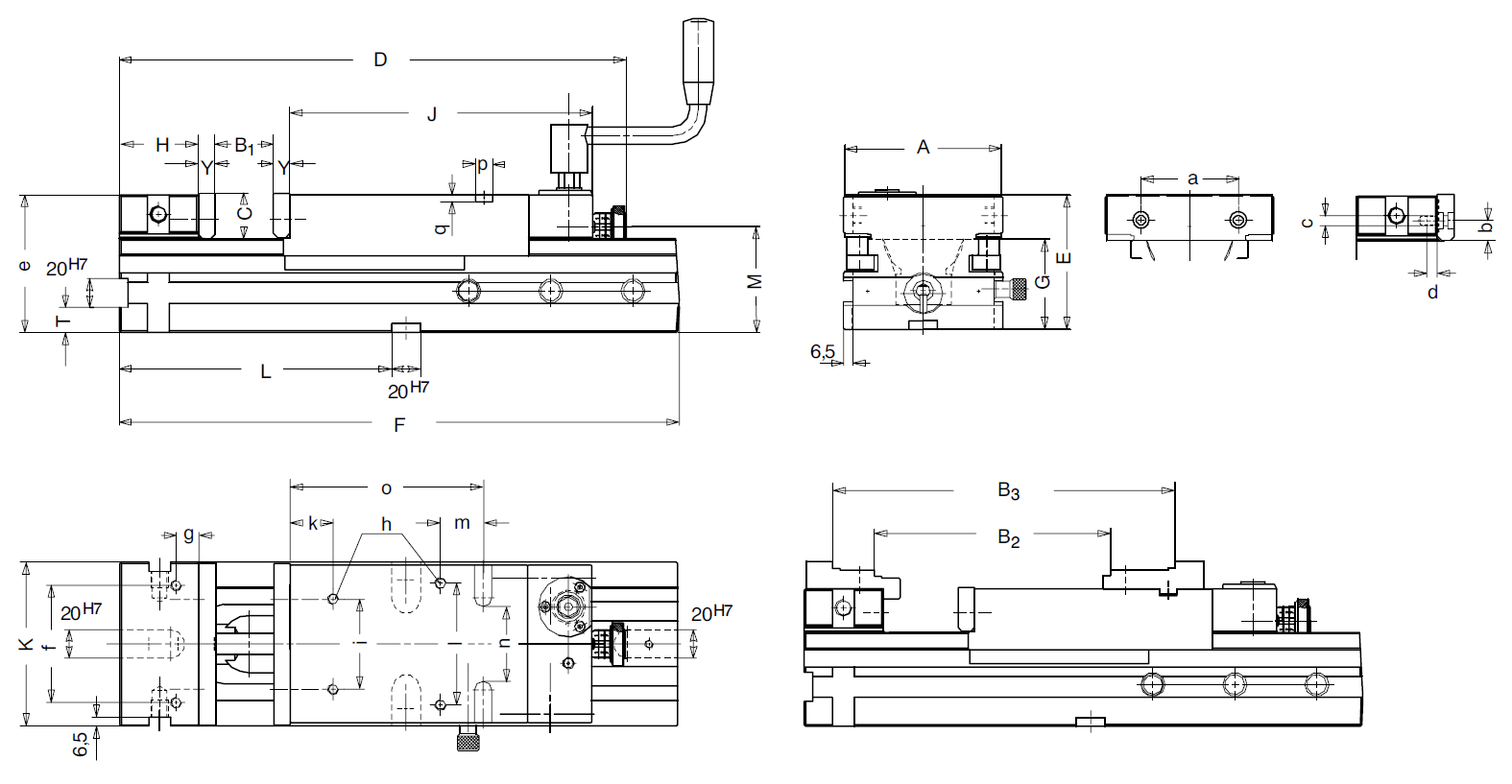

RBAW, with SGN normal jaws, hand crank and angle drive
 Item No.  154763  154764  154765
 Size  2  3  4
 Jaw width A mm  113  135  160
 B1 mm  0-175  0-225  0-310
 B2 mm  125-300  138-363  146-454
 B3 mm  199-374  220-445  248-556
 C mm  31.6  39.6  49.6
 Dmax mm  500  578  702
 E±0.02 mm  97.7  112.7  133.7
 F mm  390  468  574
 G±0.02 mm  65.5  72.5  83.5
 H±0.02 mm  55  70  80
 J mm  211  213  240
 K±0.02 mm  115  137  162
 L±0.02 mm  190  190  240
 M mm  73.5  80.5  96
 T±0.02 mm  17.5  17.5  22.5
 Y-0.01 mm  11.6  15.6  15.6
 a mm  63  80  100
 b mm  13.6  15.6  19.6
 c mm  M6  M8  M8
 d mm  12  13  13
 e±0.02 mm  96  111  132
 f mm  82  80  100
 g mm  16  30  30
 h mm  M 8 x 14  M 10 x 16  M 12 x 20
 i mm  63  80  100
 k mm  30  30  30
 l mm  85  105  120
 m mm  30  35  35
 n mm  52  70  96
 o mm  135  135  142
 pH7 mm  12  14  14
 q mm  5  5  5
 Clamping force kN  30  40  50
 Weight kg  22  36  62





Accessories RBAW

A37

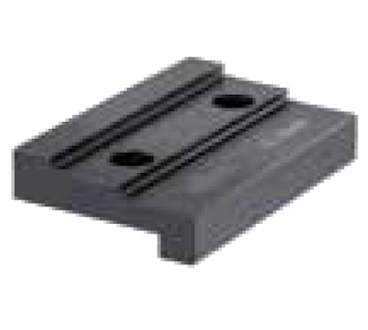

Draw-down jaws SNF, with spring plate, hardened and ground
 Item no.  Contents of delivery  Size  Width mm  Height mm
 077104  set  2  113  31.6
 077105  set  3  135  39.6
 077106  set  4  160  49.6
Including fixing screws



A37

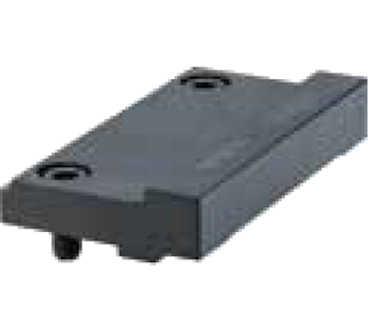

Normal jaw SGN, one side smooth, one side grooved, both sides ground
 Item no.  Contents of delivery  Size  Width mm  Height mm
 152753  piece  2  113  31.6
 152754  piece  3  135  39.6
 152755  piece  4  160  49.6
Including fixing screws



A37
Normal jaw finely checkered SGNf, reversible, to increase the specific contact pressure (higher holding forces), one side finely checkered, one side longitudinally grooved
 Item no.  Contents of delivery  Size  Width mm  Height mm
 156195  piece  2  113  31.6
 156196  piece  3  135  39.6
 156197  piece  4  160  49.6
Including fixing screws



A37
V-jaw SPR, with vertically and horizontally ground-in prisms, hardened, for combination with SGN
 Item no.  Contents of delivery  Size  Width mm  Height mm  Chucking capacity mm
Horizontal                        Vertical
 082362  piece  2  113  31.6  3-13  5-32
 082363  piece  3  135  39.6  4-20  6-40
 082364  piece  4  160  49.6  5-29  7-48
Including fixing screws



A37
V-jaw and standard jaw SBO, unhardened and burnished, with workpiece support
 Item no.  Contents of delivery  Size  Width mm  Height mm  Chucking capacity mm
Horizontal            Vertical		  Step
 317259  set  2  110  31.8  3-12  5-32  3.5 x 3.3
 317260  set  3  135  39.8  3-13  6-40  4 x 4.3
 317261  set  4  160  49.8  5-22  7-48  4 x 4.8
Including fixing screws



A37
Normal jaw SGNA, with movable workpiece stop, hardened and ground
 Item no.  Contents of delivery  Size  Width mm  Height mm
 150739  piece  2  113  31.6
 150740  piece  3  135  39.6
 150741  piece  4  160  49.6
Including fixing screws

A37
Draw-down jaws STB, for parallel, angular or flat workpieces, hardened and ground
 Item no.  Contents of delivery  Size  Width mm  Height mm
 134826  set  2  110  32
 134830  set  3  135  40
 134834  set  4  160  50

A37
Floating jaws SRP, hardened and ground, for workpieces with/without angular and parallelism errors
 Item no.  Contents of delivery  Size  Width mm  Height mm
 077097  set  2  110  38
 077098  set  3  135  46
 077099  set  4  160  56

A37
Stepped top jaw ASB, for stationary jaw
 Item no.  Contents of delivery  Size  Width mm  Height mm
 153403  piece  2  113  19
 153405  piece  3  135  22
 153407  piece  4  160  25

A37
Stepped top jaw ASB, for movable jaw
 Item no.  Contents of delivery  Size  Width mm  Height mm
 153404  piece  2  113  19
 153406  piece  3  135  22
 153408  piece  4  160  25



A37
Floating jaw horizontal PEB, for clamping non-parallel workpieces
 Item no.  Contents of delivery  Size  Width mm  Height mm  Thickness mm
 156190  piece  2  113  32  36
 156191  piece  3  135  40  40
 156192  piece  4  160  50  45



A37
Hand crank, turnable handle
 Item no.  Contents of delivery  Size  External hexagon Key-width (KW)  A  L
 134499  piece  2/3/4  12  117  90



A37
Single clamp SPE, for mounting vices on end and on the base
 Item no.  Contents of delivery  T-slot  Thread
 149121  piece  12  M 10 x 50
 149122  piece  14  M 12 x 55
 149123  piece  16  M 12 x 60
 149124  piece  18  M 16 x 60
 155722  piece  20  M 16 x 65
 151507  piece  22  M 16 x 65



A37
Fixed slot nuts NTS, hardened and ground, with fixing screw
 Item no.  Contents of delivery  Size  Length mm
 014823  set  20 x 12  22
 014825  set  20 x 14  25
 014827  set  20 x 16  25
 014829  set  20 x 18  25
 014831  set  20 x 20  22
 014833  set  20 x 22  32



We reserve the right to make technical changes.
