Heule SNAP5

DL2

BSF

VEX

Tool Table
							Tool without blade

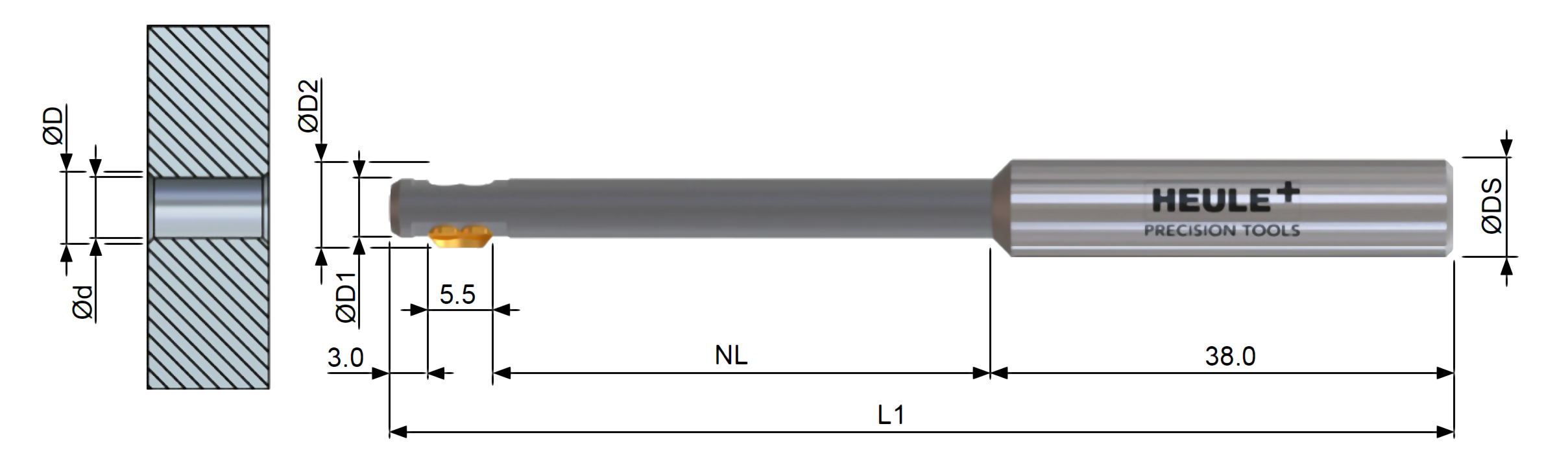

Bore	Chamfer	Tool	Max.²	Tool length	Work length	Shank	Part No.
Ød	max¹ ØD	ØD1	ØD2	L1	NL	ØDS
5.0 - 5.5	5.5 / 6.0 / 6.5 / 7.0	4.9	ØD + 0.6	88.0	40.0	8.0 h6	SNAP5/5.0
5.5 - 6.0	6.0 / 6.5 / 7.0 / 7.5	5.4		88.0	40.0	8.0 h6	SNAP5/5.5
6.0 - 6.5	6.5 / 7.0 / 7.5 / 8.0	5.9		88.0	40.0	8.0 h6	SNAP5/6.0
6.5 - 7.0	7.0 / 7.5 / 8.0 / 8.5	6.4		88.0	40.0	8.0 h6	SNAP5/6.5
7.0 - 7.5	7.5 / 8.0 / 8.5 / 9.0	6.9		88.0	40.0	8.0 h6	SNAP5/7.0
7.5 - 8.0	8.0 / 8.5 / 9.0 / 9.5	7.4		88.0	40.0	8.0 h6	SNAP5/7.5
8.0 - 8.5	8.5 / 9.0 / 9.5 / 10.0	7.8		98.0	50.0	10.0 h6	SNAP5/8.0
8.5 - 9.0	9.0 / 9.5 / 10.0 / 10.5	8.3		98.0	50.0	10.0 h6	SNAP5/8.5
9.0 - 9.5	9.5 / 10.0 / 10.5 / 11.0	8.8		98.0	50.0	10.0 h6	SNAP5/9.0
9.5 - 10.0	10.0 / 10.5 / 11.0 / 11.5	9.3		98.0	50.0	10.0 h6	SNAP5/9.5
10.0 - 10.5	10.5 / 11.0 / 11.5 / 12.0	9.8		107.0	50.0	12.0 h6	SNAP5/10.0
¹⁾ Different chamfer-Ø can be achieved per tool size by using different blades. One blade however produces one defined chamfer-Ø only. The achievable chamfer capacity varies slightly depending on material, blade force, cutting data or application. The indicated dimension is the theoretically possible maximum. ²⁾ The maximum diameter D2 varies depending on the selected blade. Please calculate value with formula. Please mind any interfering edges. - Standard shank for tool part numbers without any addition = Cylindrical shank With addition: "-HB" = Weldon shank or "-HE" = Whistle Notch shank - Attention: The tools are without blade. The blades for the tool need to be ordered separately.

WARNING NOTICE:
Blades for SNAP5 tools and blades for Thread tools are not interchangeable!

Blades GS Geometry 90°
	Part No. forward and backward cutting		Part No. backward cutting only
Chamfer-Ø¹	Coating A	Coating D	Coating A	Coating D
5.5	GH-Q-M-30204^*	GH-Q-M-30404	GH-Q-M-31204	GH-Q-M-31404
6.0	GH-Q-M-30205^*	GH-Q-M-30405	GH-Q-M-31205	GH-Q-M-31405
6.5	GH-Q-M-30206^*	GH-Q-M-30406	GH-Q-M-31206	GH-Q-M-31406
7.0	GH-Q-M-30207^*	GH-Q-M-30407	GH-Q-M-31207	GH-Q-M-31407
7.5	GH-Q-M-30208^*	GH-Q-M-30408	GH-Q-M-31208	GH-Q-M-31408
8.0	GH-Q-M-30209^*	GH-Q-M-30409	GH-Q-M-31209	GH-Q-M-31409
8.5	GH-Q-M-30210^*	GH-Q-M-30410	GH-Q-M-31210	GH-Q-M-31410
9.0	GH-Q-M-30211^*	GH-Q-M-30411	GH-Q-M-31211	GH-Q-M-31411
9.5	GH-Q-M-30212^*	GH-Q-M-30412	GH-Q-M-31212	GH-Q-M-31412
10.0	GH-Q-M-30213^*	GH-Q-M-30413	GH-Q-M-31213	GH-Q-M-31413
10.5	GH-Q-M-30214^*	GH-Q-M-30414	GH-Q-M-31214	GH-Q-M-31414
11.0	GH-Q-M-30215^*	GH-Q-M-30415	GH-Q-M-31215	GH-Q-M-31415
11.5	GH-Q-M-30216^*	GH-Q-M-30416	GH-Q-M-31216	GH-Q-M-31416
12.0	GH-Q-M-30217^*	GH-Q-M-30417	GH-Q-M-31217	GH-Q-M-31417
12.5	GH-Q-M-30218^*	GH-Q-M-30418	GH-Q-M-31218	GH-Q-M-31418
13.0	GH-Q-M-30219^*	GH-Q-M-30419	GH-Q-M-31219	GH-Q-M-31419
*^) Standard items / Please enquire about stock or delivery times for all non-standard blades. ¹⁾ The indicated dimension is the theoretically possible maximum. Explanations to coatings** A: Coating for steel, titanium, Inconel D: Coating for aluminium alloys only

We reserve the right to make technical changes.
