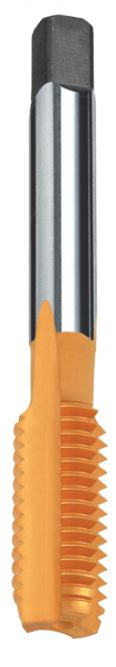

Ferg Threading Taps G 206, T206

Threading Short Taps
Whitworth pipe thread DIN EN ISO 228

Short-chipping brass, Bronze						High speed steel 1.3343 (DMo5) (M-2)		206 1840020600	206 1840020600	T206 1840020610
						HOLE		≤ 2 x d₁ Blind and through hole	≤ 2 x d₁ Blind and through hole	≤ 2 x d₁ Blind and through hole
						Chamfer lead acc. to DIN 2197		E = 1.5xP	E = 1.5xP	E = 1.5xP
						LIMIT		m	+0.1	m
						COATING		Bright (without Coating or without Surface treatment)	Bright (without Coating or without Surface treatment)	TiN coating (Titanium nitride)
						DIN		5157	5157	5157
						ORDER No. EDP = Nr.+ ★		1840020600* 206	1840020600* 206	1840020610* T206
l₁ mm	l₂ mm	d₂ mm	a mm	mm	d₁	P h/1"	★

								Z	Z	Z
90	16	7	5.5	8.8	G 1/8	28	012	4 ■	4 ■	4
100	22	11	9	11.8	G 1/4	19	025	4 ■	4 ■	4
100	22	12	9	15.25	G 3/8	19	037	4 ■	4 ■	4 ■
125	25	16	12	19	G 1/2	14	050	4 ■	4 ■	4 ■
125	25	18	14.5	21	G 5/8	14	062	4	4	4
140	28	20	16	24.5	G 3/4	14	075	4 ■	4 ■	4 ■
160	30	25	20	30.75	G 1	11	100	4 ■	4 ■	4
		■ = Stock		EDP: 206 G 1/4+0.1 = 1840620600025

We reserve the right to make technical changes.
