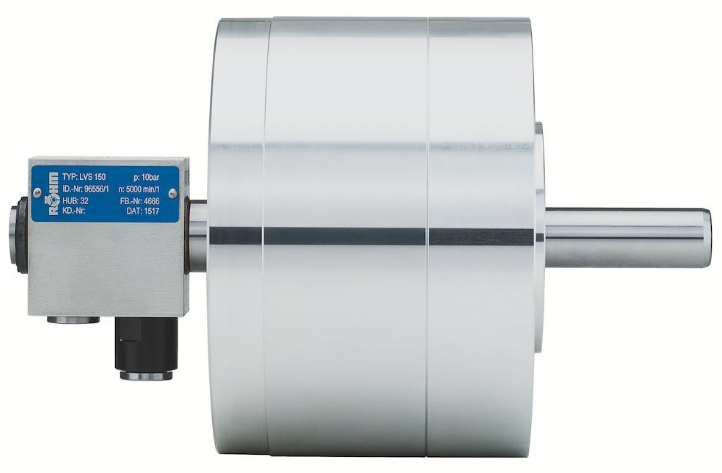

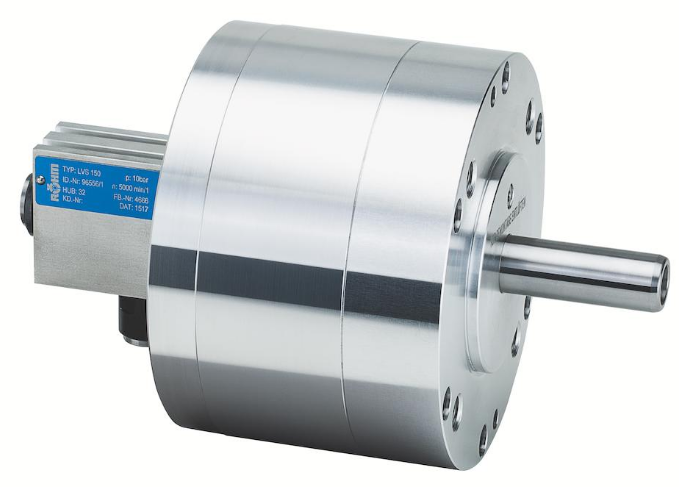

Air-operated Cylinders without Through-hole LVS  |
APPLICATION Pneumatic actuation of power chucks or special clamping devices (full or partial hollow clamping). TYPE Clamping cylinders without through-hole for actuation pressure 2-10 bar. TECHNICAL FEATURES |
 |
| - Stroke control by means of inductive proximity system or linear path measuring system F90, fastened on the machine side (stroke control system not included in the scope of delivery) - The maximum permissible speed can be run in continuous operation (100% ED) - Can also be actuated during rotation - On request with central media feed-through CUSTOMER BENEFITS » Operational safety thanks to standard safety mechanism, guaranteed even if there is a pressure drop during spindle rotation » Flexible use thanks to possible horizontal or vertical installation position |
We reserve the right to make technical changes.
