Turning Tools Boring bars starting from 5 mm working diameter |

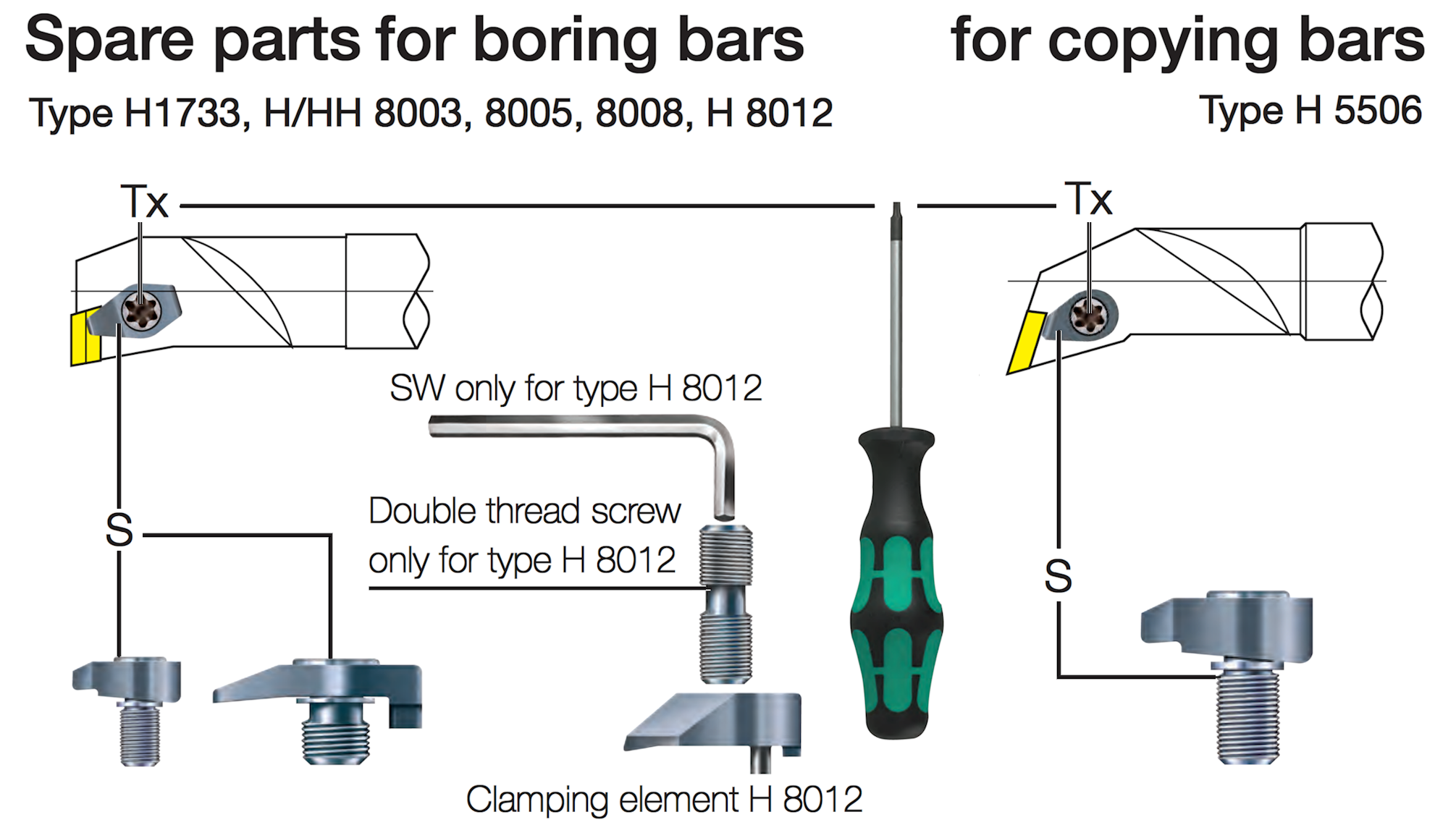

Spare Parts
| S | Clamping set | ||
| Tx | Torx-screw driver | ||
| SW | Hex drive key | ||
Please note: Clamping set S contains: 1 Clamping element, 1 Retainer ring, 1 Clamping screw |
|||
| Tool | S | Tx / SW | Tool | S | Tx / SW |
| H 1733-... ... R/L | E 3441 | Tx 5 | H 5506-... ... R | E 1092 | Tx 8 |
| H 8003-... ... R/L | E 1031 | Tx 6 | H 5506-... ... L | E 1114 | Tx 8 |
| H 8005-... ... R/L | E 1014 | Tx 8 | |||
| H 8008-... ... R/L | E 1010 | Tx 8 | |||
| HH 8003-... ... R/L | E 1031 | Tx 6 | |||
| HH 8005-... ... R/L | E 1014 | Tx 8 | |||
| HH 8008-... ... R/L | E 1010 | Tx 8 | |||
| H 8012-... ... R/L | E 1001 / E 1030 | SW 2.5 |
We reserve the right to make technical changes.
