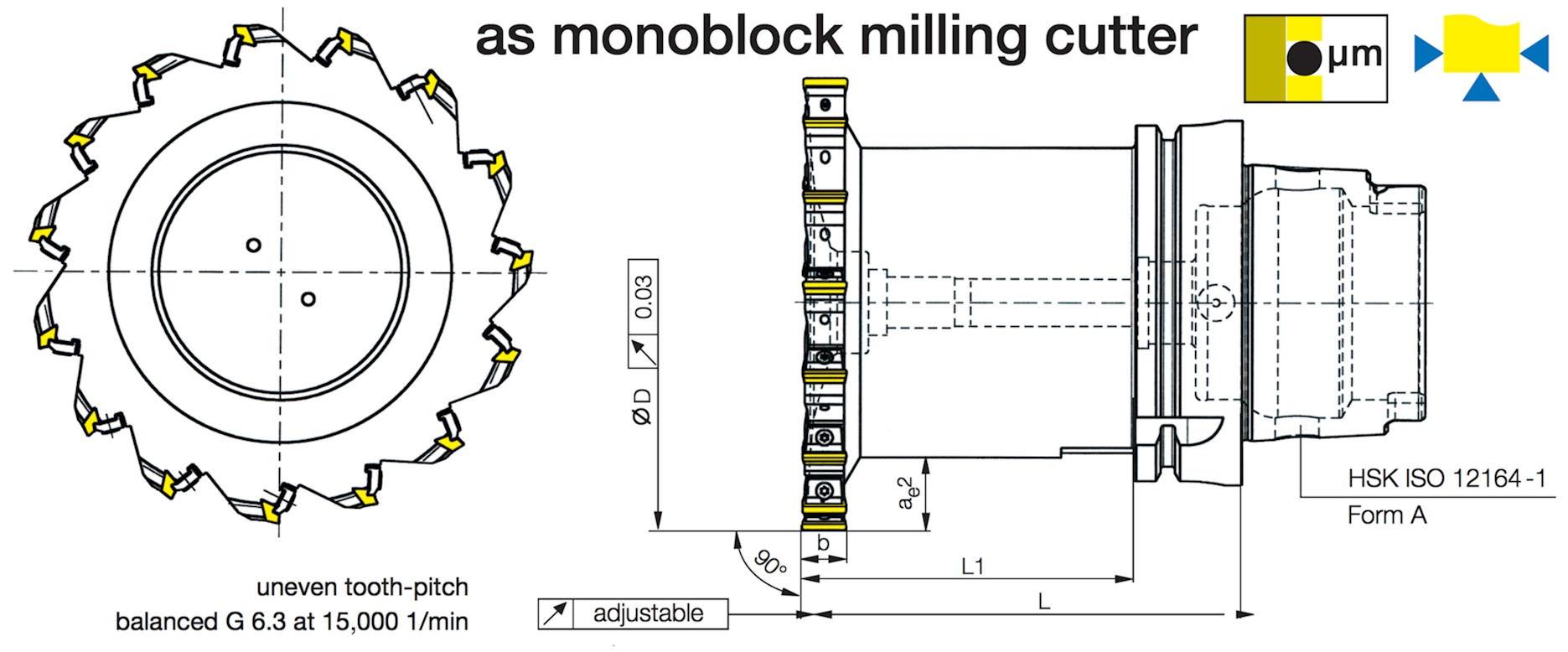

HH Face Monoblock Milling Cutters

Part nr. 20002
Code	Drawing nr.	HSK	Ø D	z	b	L₁	L	a_e2	max. RPM	Weight (kg)	Inserts
	Light and medium machining
32,000	H6120-3200 6032R	32	32	4	12/7*	40	60	4	50,000	0.20	W612…N/R/L
40,000	H6120-4000 6032R	32	40	5	12/7*	40	60	5.4	48,000	0.30
50,000	H6120-5000 6032R	32	50	7	12/7*	40	60	9	45,000	0.40

32,001	H6120-3200 6040R	40	32	4	12/7*	31.5	60	4.5	50,000	0.30
40,001	H6120-4000 6040R	40	40	5	12/7*	33.5	60	5.4	48,000	0.40
50,001	H6120-5000 6040R	40	50	7	12/7*	40	60	9	45,000	0.50

32,002	H6120-3200 8063R	63	32	4	12/7*	31	80	4	50,000	0.90
40,002	H6120-4000 8063R	63	40	5	12/7*	36	80	5.4	48,000	1.00
50,002	H6120-5000 8063R	63	50	7	12/7*	39	80	9	45,000	1.10
63,000	H6120-6300 8063R	63	63	8	12/7*	43	80	9	41,000	1.30
80,000	H6120-8000 8063R	63	80	11	12/7*	54	80	9	36,000	1.60
100,000	H6120-1000 8063R	63	100	13	12/7*	54	80	9	31,000	2.00
125,000	H6120-1250 8063R	63	125	15	12/7*	54	80	11.5	23,000	2.40

40,003	H6120-4000 1080R	80	40	5	12/7*	45	100	5	48,000	1.60
50,003	H6120-5000 1080R	80	50	7	12/7*	45	100	9	45,000	1.80
63,001	H6120-6300 1080R	80	63	8	12/7*	50	100	9	41,000	2.20
80,001	H6120-8000 1080R	80	80	11	12/7*	74	100	9	36,000	2.80
100,001	H6120-1000 1080R	80	100	13	12/7*	74	100	9	31,000	3.30
125,001	H6120-1250 1080R	80	125	15	12/7*	74	100	11.5	23,000	3.90
ex stock * PCD-inserts with cutting length of 7 mm On request all tools are also available as left-hand cutting version! Ordering example: 1 piece H 6120-3200 6032 R = Ordering number: 20002 32,000

Part nr. 20002
Code	Drawing nr.	HSK	Ø D	z	b	L₁	L	a_e2	max. RPM	Weight (kg)	Inserts
	Light and medium machining
40,004	H6120-4000 1210R	100	40	5	12/7*	57	120	5.4	48,000	2.90	W612…N/R/L
50,004	H6120-5000 1210R	100	50	7	12/7*	49	120	9	45,000	3.20
63,002	H6120-6300 1210R	100	63	8	12/7*	52	120	9	41,000	3.60
80,002	H6120-8000 1210R	100	80	11	12/7*	69	120	9	36,000	4.30
100,002	H6120-1000 1210R	100	100	13	12/7*	91	120	9	31,000	5.60
125,002	H6120-1250 1210R	100	125	15	12/7*	91	120	11.5	23,000	6.50
160,000	H6120-1600 1210R	100	160	18	12/7*	91	120	14	16,000	7.50
	Reduced number of teeth
80,003	H6121-8000 8063R	63	80	6	12/7*	54	80	9	36,000	1.60
100,003	H6121-1000 8063R	63	100	8	12/7*	54	80	9	31,000	2.00
125,003	H6121-1250 8063R	63	125	10	12/7*	54	80	11.5	23,000	2.40

80,004	H6121-8000 1080R	80	80	6	12/7*	74	100	9	36,000	2.80
100,004	H6121-1000 1080R	80	100	8	12/7*	74	100	9	31,000	3.30
125,004	H6121-1250 1080R	80	125	10	12/7*	74	100	11.5	23,000	3.90

80,005	H6121-8000 1210R	100	80	6	12/7*	91	120	9	36,000	4.30
100,005	H6121-1000 1210R	100	100	8	12/7*	91	120	9	31,000	5.60
125,005	H6121-1250 1210R	100	125	10	12/7*	91	120	11.5	23,000	6.50
160,001	H6121-1600 1210R	100	160	12	12/7*	91	120	14	16,000	7.50
ex stock * PCD-inserts with cutting length of 7 mm On request all tools are also available as left-hand cutting version! Ordering example: 1 piece H 6120-4000 1210 R = Ordering number: 20002 40,004
