| Tool Table | |||||

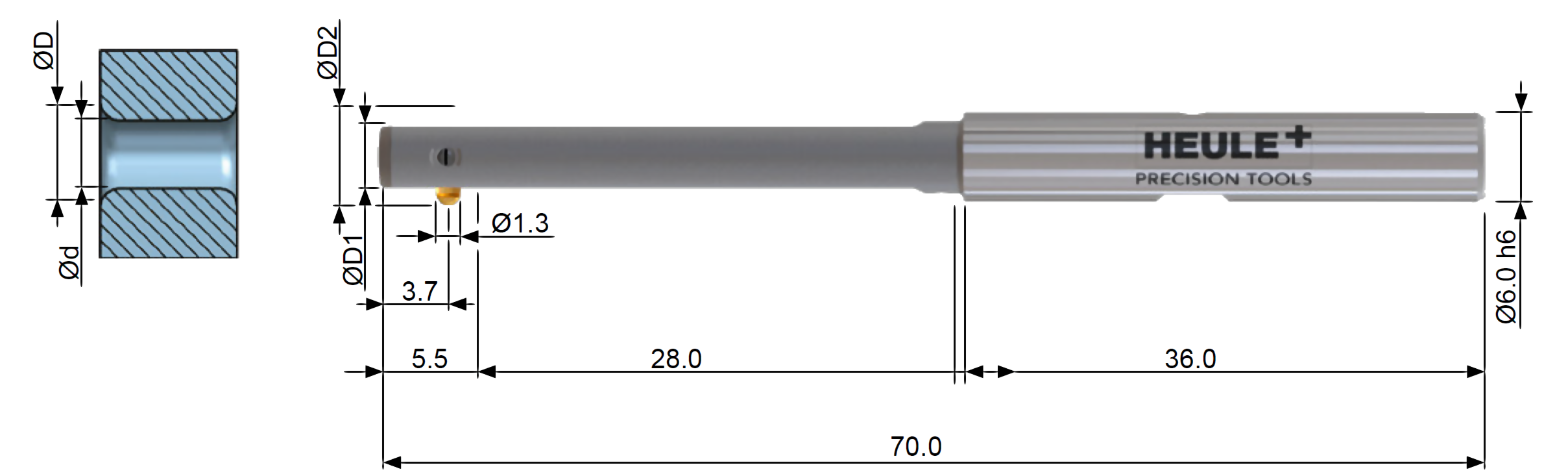

| Tool with Standard Blade | |||||
| Bore | Deburr max. 1 | Tool | Maximum 2 | Part No. | Spring index |
| Ød | ØD | ØD1 | ØD2 | ||
| 4.0 - 4.1 | 4.5 | 3.9 | 5.2 | COFA4M/4.0/ | Please add the spring index after the Part Number! Order example: COFA4M/4.2/S Refer to Spring Index below |
| 4.1 - 4.2 | 4.6 | 4.0 | 5.3 | COFA4M/4.1/ | |
| 4.2 - 4.3 | 4.7 | 4.1 | 5.4 | COFA4M/4.2/ | |
| 4.3 - 4.4 | 4.8 | 4.2 | 5.5 | COFA4M/4.3/ | |
| 4.4 - 4.5 | 4.9 | 4.3 | 5.6 | COFA4M/4.4/ | |
| 4.5 - 4.6 | 5.0 | 4.4 | 5.7 | COFA4M/4.5/ | |
| 4.6 - 4.7 | 5.1 | 4.5 | 5.8 | COFA4M/4.6/ | |
| 4.7 - 4.8 | 5.2 | 4.6 | 5.9 | COFA4M/4.7/ | |
| 4.8 - 4.9 | 5.3 | 4.7 | 6.0 | COFA4M/4.8/ | |
| 4.9 - 5.0 | 5.4 | 4.8 | 6.1 | COFA4M/4.9/ | |
| 5.0 - 5.1 | 5.5 | 4.9 | 6.2 | COFA4M/5.0/ | |
1) The deburring result varies depending on material, cutting data and application. The indicated dimension is the theoretically possible maximum. The spring has to be selected accordingly. 2) Pay attention to the interfering edges. |
|||||
| Spare Parts | ||
| Pos. | Description | Part No. |
| 1 | COFA 4M Blade | see below |
| 2 | Roll pin Ø1.0x3.8 | GH-C-E-0819 |
| 3 | Bending spring | see below |
| 4 | Tool body | upon request |
| 5 | Roll pin Ø1.5x5.0 | GH-H-S-0902 |
| 6 | Assembly pin | GH-C-V-0206 |
| Spring Index | |||
| Type | Bending spring | Part No. | Application |
| W2 | soft (softer than W1) | GH-C-E-0341 | Special applications |
| W1 | soft (softer than W) | GH-C-E-0340 | Special applications |
| W | soft | GH-C-E-0342 | Aluminium alloys, copper zinc alloys, soft mat. |
| H | hard | GH-C-E-0343* | Standard applications, all steel types |
| S | super hard | GH-C-E-0344 | Hard and tough materials |
| Z | extra hard (harder > S) | GH-C-E-0345 | Very tough materials or very large burr formations |
| Z1 | extra hard (harder > Z) | GH-C-E-0346 | Special applications |
| Z2 | extra hard (harder > Z1) | GH-C-E-0347 | Special applications |
| Z3 | extra hard (harder > Z2) | GH-C-E-0348 | Special applications |
| Blades | ||||
| Part No. forward and backward cutting |
Part No. backward cutting only |
|||
| Angle | Coating T | Coating D | Coating T | Coating D |
| 10° | GH-C-M-0704 | GH-C-M-0784 | GH-C-M-0814 | GH-C-M-0894 |
| 20° | GH-C-M-0504* | GH-C-M-0584 | GH-C-M-0914 | GH-C-M-0994 |
| 25° | GH-C-M-0161 | --- | GH-C-M-0181 | --- |
| 30° | GH-C-M-0148 | --- | GH-C-M-0182 | --- |
| *Standard items / Please enquire about stock or delivery times for all non-standard blades. Explanations to coatings T: Coating for steel, titanium, Inconel D: Coating for aluminium alloys only |
||||
We reserve the right to make technical changes.
