Röhm Live Centres HVL/HVLP Pro

Live Centres
HVL Pro - Extended centre point
HVLP Pro - Extended centre point
with draw-off nut Precision design

APPLICATION For counter-clamping workpieces on turning and grinding machines. Especially suited for cramped work area between centre point and workpiece. TYPE All-round live centre with extended centre point. TECHNICAL FEATURES - Body hardened and ground - Tip angle 60°
CUSTOMER BENEFITS » Enlarged work area and better workpiece accessibility thanks to extended centre point » High concentricity and stability thanks to 3-fold bearing » Maximum concentricity deviation of 0.005 mm (for HVL Pro) and 0.003 mm (for HVLP Pro) for maximum precision

A06

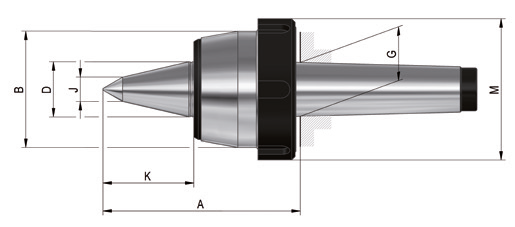

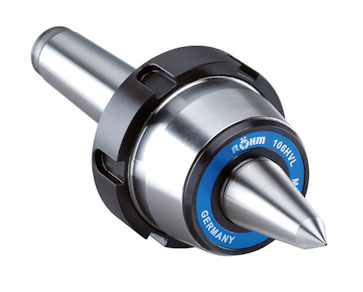

HVL Pro - Extended centre point and HVLP Pro - Extended centre point with draw-off nut Precision design, body hardened and ground - tip angle 60°

Item No. HVL Pro HVLP Pro	058668	058669	058670 1412291	058671 1412292	058672 1412293	058673 1412294
Mount MT	1	2	3	4	5	6
Size	101	102	106	108	110	114
A mm	70.5	75	95.5	114.5	143.5	172.5
B mm	34.5	43	58.5	68.5	88.5	102.5
D mm	15	20	25	32	40	50
G mm	12.065	17.78	23.825	31.267	44.399	63.348
K mm	27	34	47	53	64	78
J mm	9	10	12	14	16	18
Weight approx. g	400	500	1300	2300	4800	10200
Workpiece weight max. kg	80	140	400	500	1200	2500
Concentricity \| HVL Pro deviation max. mm \| HVLP Pro	0.01 -	0.005 -	0.005 0.003	0.005 0.003	0.005 0.003	0.01 0.003
Speed max. min^-1	7000	7000	5000	3800	3000	2600
Spare live centres	1241731	1241732	1241733	1241734	1241735	1241736

We reserve the right to make technical changes.
