Röhm Drilling Machine Vices BSH sturdy design

Drilling Machine Vices
BSH - sturdy design

APPLICATION
For securely clamping workpieces on drills and measuring machines.

TYPE
Sturdy version for drill stands, table drills and box column drills.
Clamping system mechanical , manually operated.

TECHNICAL FEATURES
- Moving steel jaw is supported by a cast iron jaw with inner guidance
- Solid clamping jaw with three vertical prisms and one horizontal prism
- Jaws and spindle gunmetal-finished
- Body made out of cast metal
- Long mounting slots

CUSTOMER BENEFITS
» Long lever for maximal clamping force
» Both jaws have a seat for retaining flat workpieces

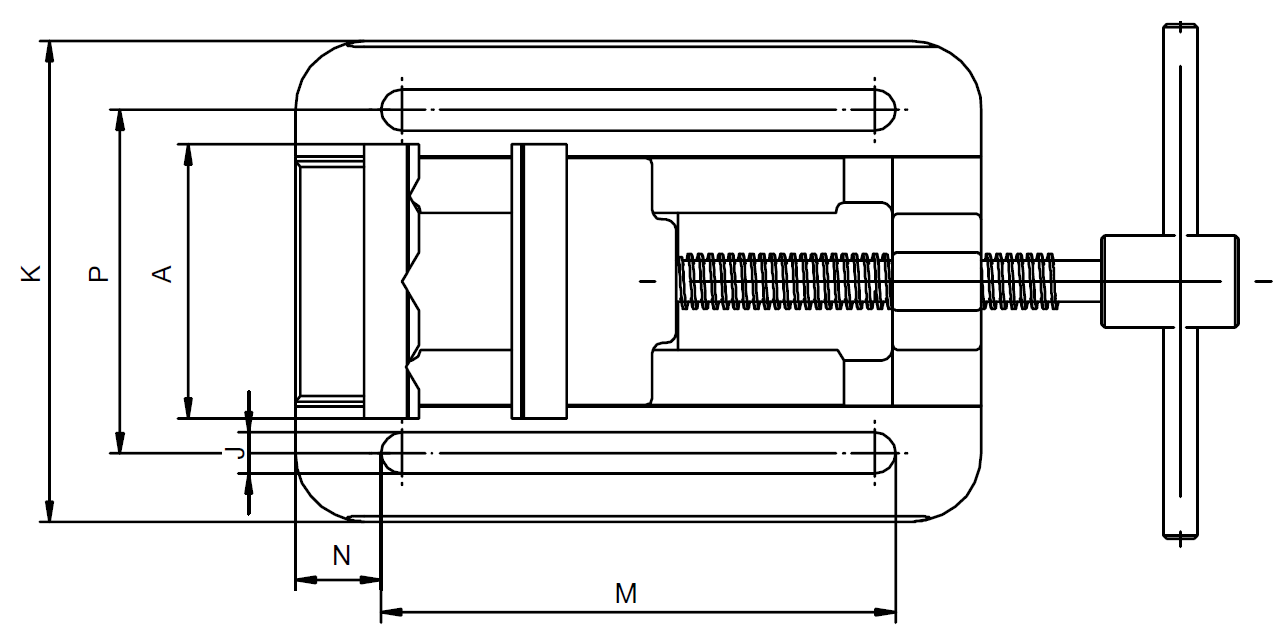

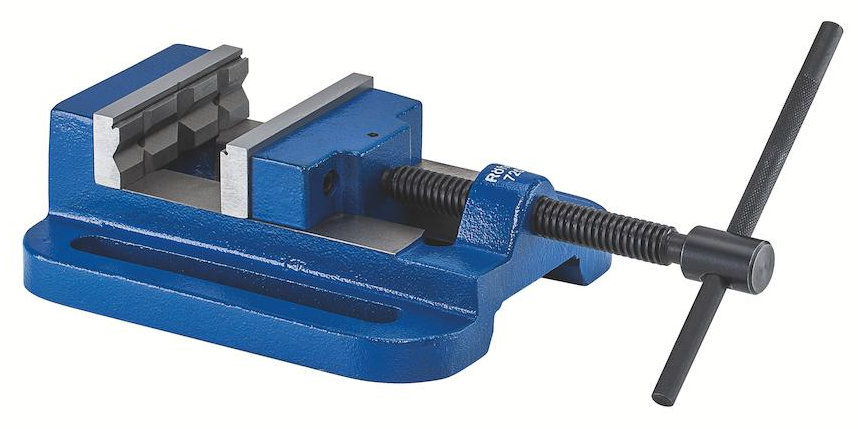

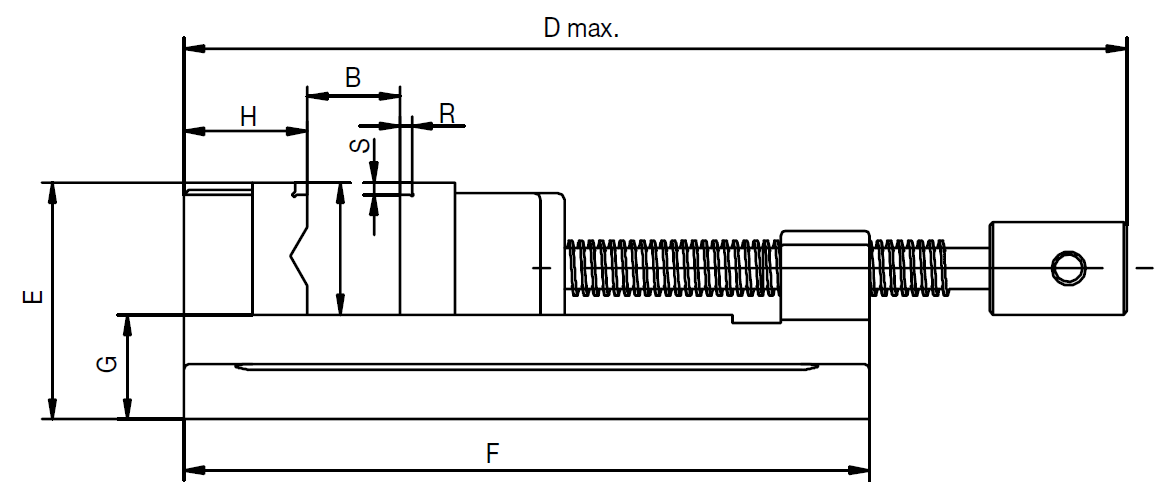

BSH 4-7, sturdy craftsman design

Item No.	007197	007201	007202	007207
Size	4	5	6	7
Jaw width A mm	80	100	120	140
Clamping capacity B mm	80	95	110	150
Jaw height C mm	39	38.5	39	38.5
Total length D mm	338	365	445	529
Total height E mm	69	73.5	85	86.5
Total height F mm	30	35	47	48
Total height G mm	30	35	47	48
Total height H mm	36	36	42	37
Total height J mm	12	14	20	18
Total height K mm	140	175	218	223
Total height L mm	-	-	-	-
Total height M mm	150	163	190	228
Total height N mm	25	26	35	37
Total height O mm	-	-	-	-
Total height P mm	100	125	160	165
Total height R mm	3.5	3.5	3.5	3.5
Total height S mm	3.5	3.5	3.5	3.5
Weight kg	5	7.6	13	13.5

We reserve the right to make technical changes.
