A01

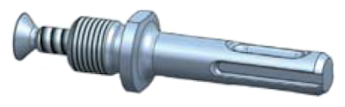

SDS plus adapter for drill chucks with 1/2“-20 mount
| Item No. |
Size |
Mount |
L mm |
Weight approx. g |
| 1322404 |
1/2“-20 |
SDS plus |
62 |
50 |
The adapter serves as a connection to use a conventional drill chuck on hammers with SDS plus mounting. With deactivated hammer function the usage of cylindrical drill bits is now possible. The scope of delivery includes a safety screw with left-hand thread M6x23.
Assembly instruction:
Assemble the SDS adapter to the chuck with 50 Nm.
Fix the safety-screw with approx. 3-5 Nm. |
|
