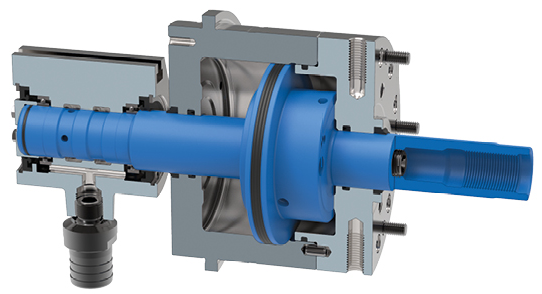

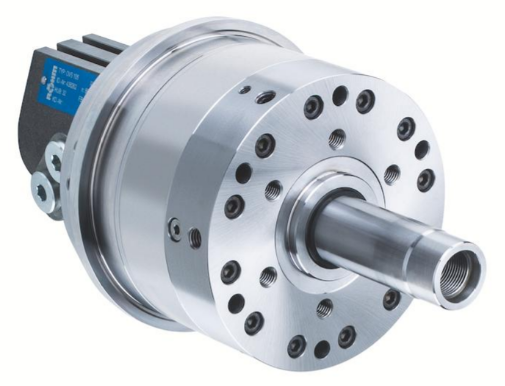

Oil-operated Cylinders without Through-hole OVS  |
APPLICATION Hydraulic actuation of power chucks (full or partial hollow clamping). TYPE Clamping cylinders without through-hole for actuation pressures from 8-80 bar. TECHNICAL FEATURES |
 |
| - Stroke control by means of inductive proximity system or linear path measuring system F90 (stroke control system not included in the scope of delivery) - Through-hole for media feed-through - For its actuation, we recommend hydraulic oil H-LP 32, DIN 51525 (32 centistokes at 40° Celsius) - Insert a filter unit (10 μm) between the pump and control valve CUSTOMER BENEFITS » Compact design and low mass moment of inertia for low machine spindle load » Operational safety thanks to safety mechanism, guaranteed even if there is a pressure drop during spindle rotation » Flexible use thanks to possible horizontal or vertical installation position |
We reserve the right to make technical changes.
