   3-jaw Chuck  Serration 60°  Pipe  Bar  Flange  Disc  Length Machining  Side Machining |

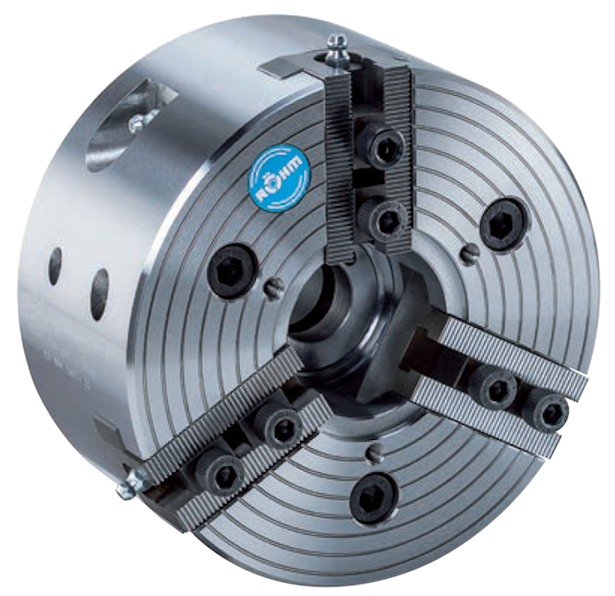

Power Chucks with Through-hole KFG - Power Operated Angle Lever Chuck   |
APPLICATION Optimally suited for clamping tasks demanding through-hole, flexibility, large strokes and low frictional losses. TYPE Angle laver power chuck with cylindrical centre mount. 3-jaw version with serration 60°. TECHNICAL FEATURES - Wide guidance of base jaws - T-slots in the chuck body |
 |
| - Lubrication of the jaw guide via easily accessible grease nipples on the axes of the angle lever CUSTOMER BENEFITS » Large through-hole » Large jaw strokes and flexible use can be realized with angle lever system » High efficiency thanks to low frictional losses (low-hysteresis chuck) » Long service life - all moving parts are hardened and ground |
|
| Included in the scope of delivery: Chuck, chuck and jaw mounting screws, wrench, slot nuts, 2 wrenches for the sliding sleeve (without top jaws) |
|
We reserve the right to make technical changes.
