Röhm Drilling Machine Vices BOF

Drilling Machine Vices
BOF

APPLICATION For securely clamping workpieces on drills and measuring machines.
TYPE Clamping system mechanical , manually operated. Standard version. TECHNICAL FEATURES - Body made out of special steel casting - Low, stable design with thread spindle CUSTOMER BENEFITS » Optimal price/performance ratio » Entire clamping range within reach by turning » Mounting possibilities on the side and frontal
» Long guidance of moving jaw, even in the external clamping range » Clamping jaws are reversible, one side smooth and ground on both sides » Solid clamping jaw with one longitudinal prism and two transverse prisms » Both jaws with support surface for clamping flat workpieces

A12

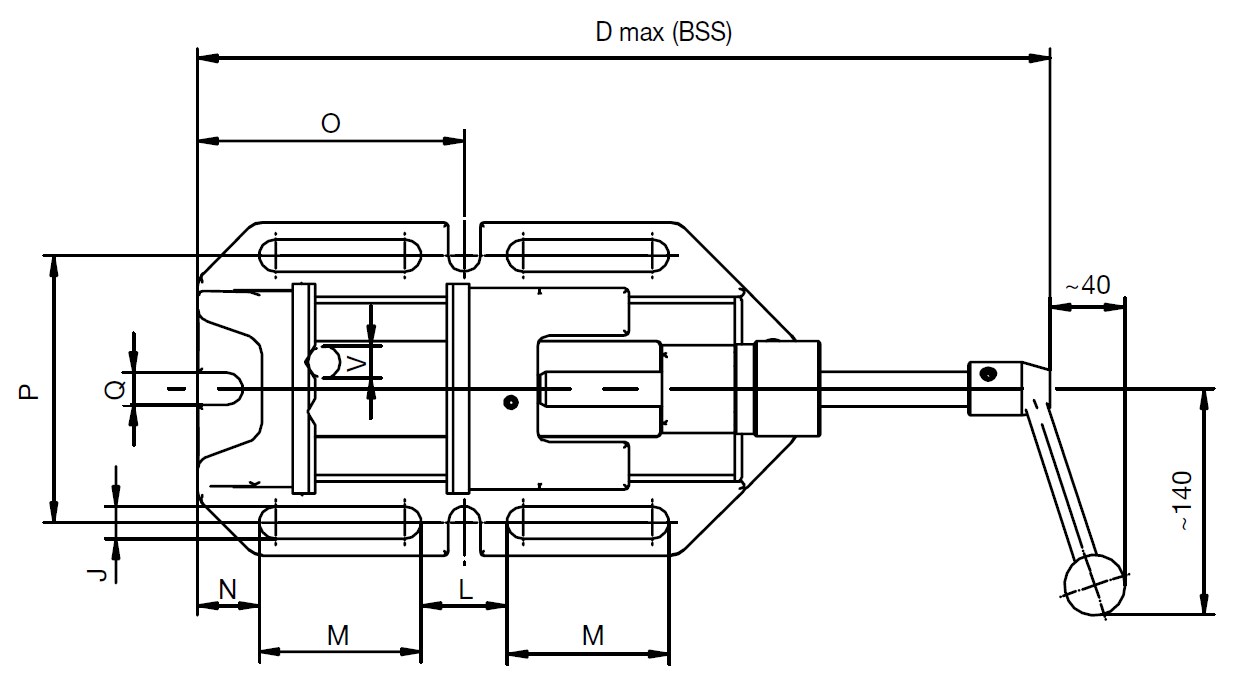

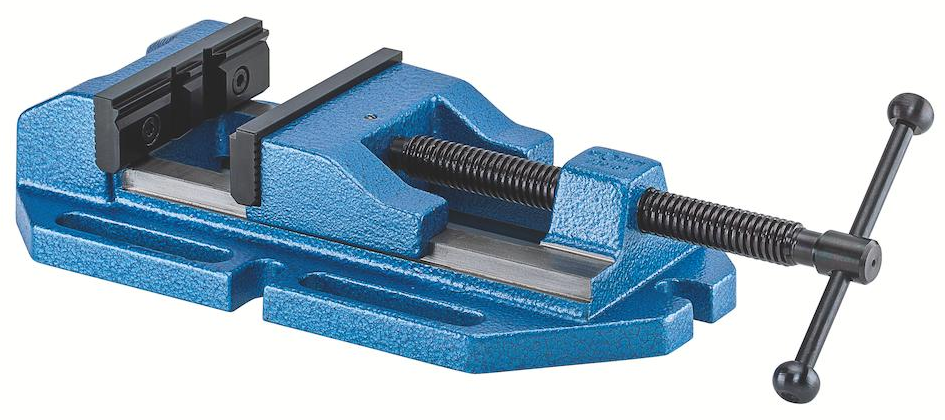

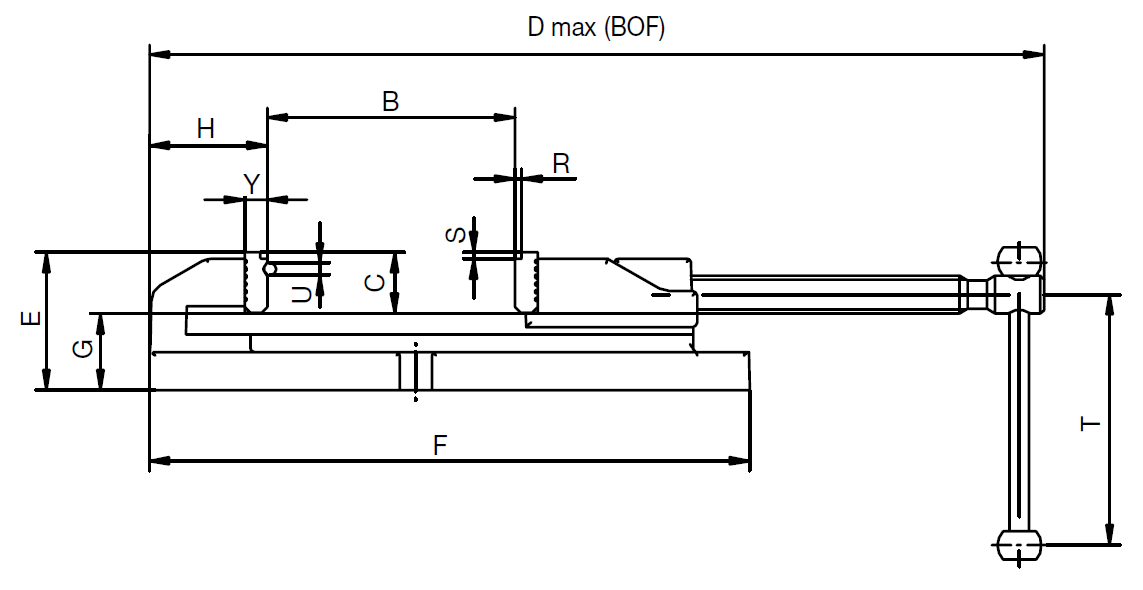

BOF, with prism and normal jaw SBO

Item No.	142835*	111595*	111596*	111597*
Size	1	2	3	4
Jaw width A mm	90	110	135	160
Clamping capacity B mm	90	130	160	220
Jaw height C mm	25	32	40	50
Total length D mm	356	470	550	692
Total height E mm	60	72.5	80.5	95.5
Total height F mm	195	315	365	445
Total height G mm	35	40	40	45
Total height H mm	37	62	71	76
Total height J mm	14	17	17	17
Total height K mm	145	175	205	245
Total height L mm		45	45	45
Total height M mm	125	85	100	120
Total height N mm	35	32.5	45.5	47.5
Total height O mm		140	168	190
Total height P mm	115	140	170	210
Total height Q mm		17	17	17
Total height R mm	4	3.5	4	4
Total height S mm	4	3.5	4.5	5
Total height T mm	145	125	125	160
Horizontal U mm	4 - 17	3 - 12	3 - 13	5 - 22
Vertical V mm	4 - 25	5 - 32	6 - 40	7 - 48
Vertical Y mm	12	12	16	16
Jaw Connection Dimensions a mm	46	63	80	100
Jaw Connection Dimensions b mm	12	13.6	15.6	19.6
Jaw Connection Dimensions c mm	M6	M6	M8	M8
Weight kg	5.5	9.5	13.5	25
* The product shown may differ from the original

Accessories BMS

A37
V-jaw and normal jaw SBO, unhardened and burnished, with workpiece support for BOF and BSS

Item no.	Scope of delivery	Size	Width mm	Height mm	Chucking capacity mm Horizontal Vertical
332714	set	1	90	24.8	4-17	4-25
317259	set	2	110	31.8	3-12	5-32
317260	set	3	135	39.8	3-13	6-40
317261	set	4	160	49.8	5-22	7-48

Including fixing screws
