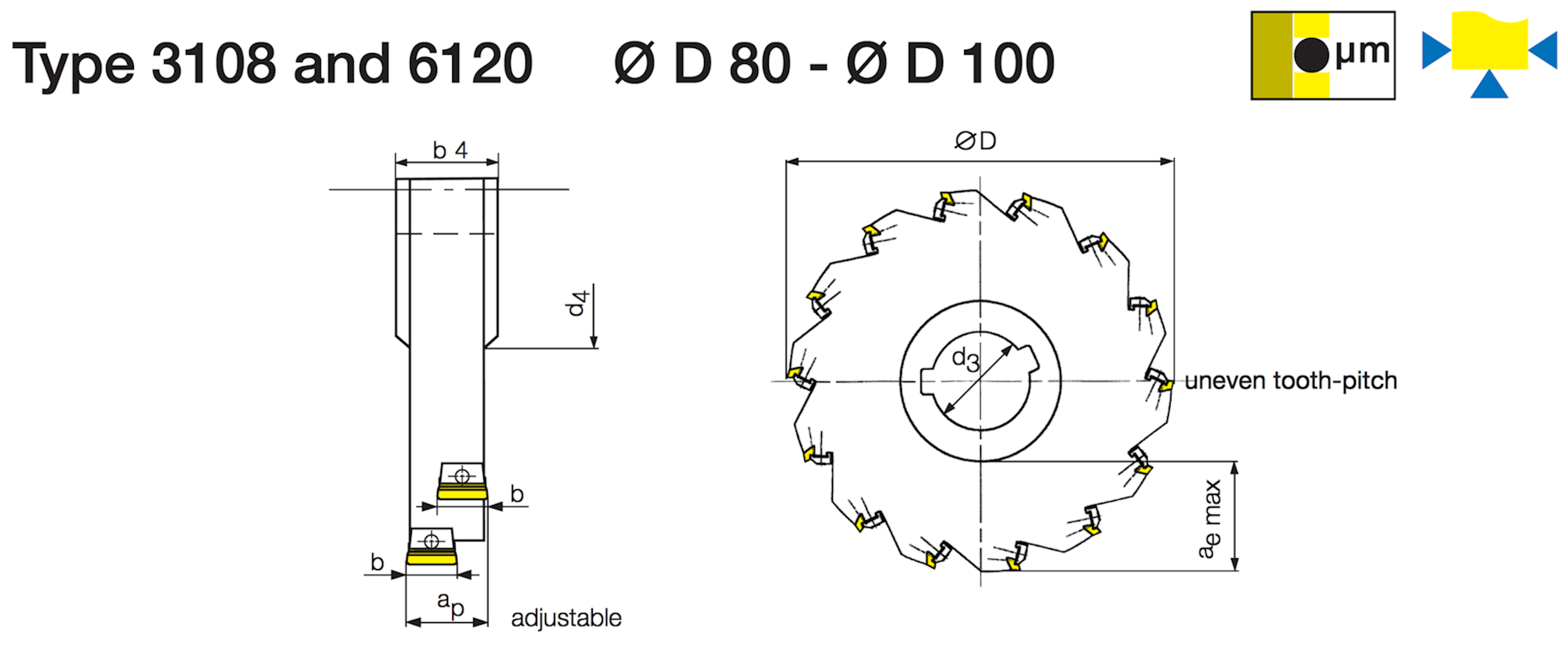

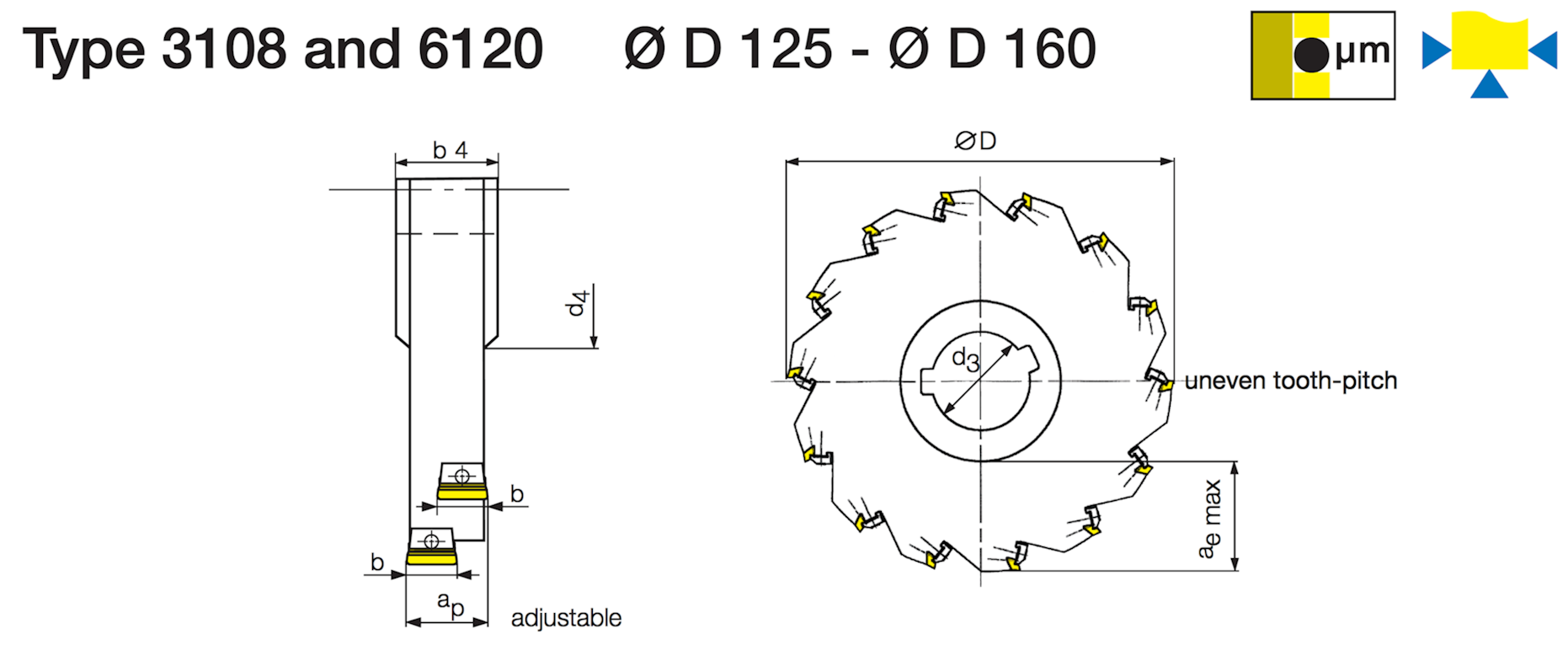

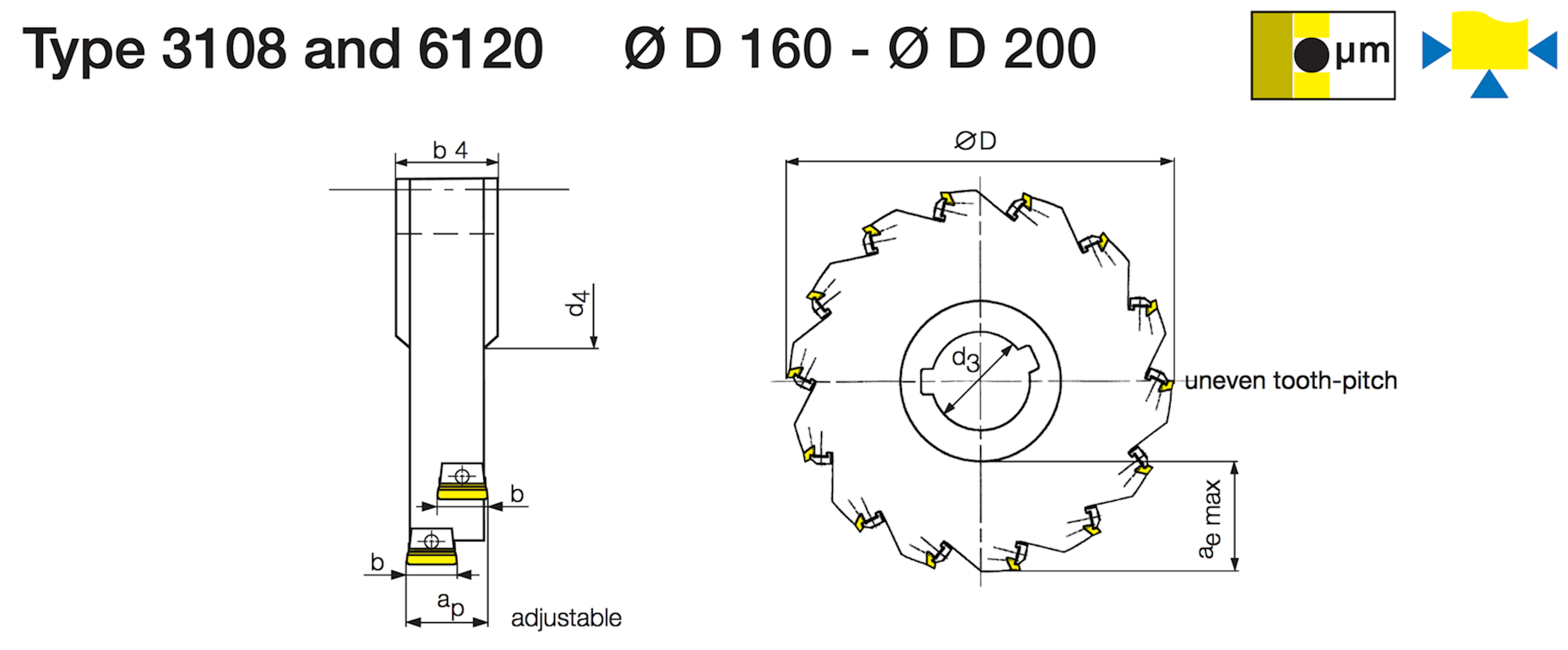

HH Side Milling Cutters

Part nr. 20003
Code	Drawing nr.	Ø D	z	z_eff	a_p	b	a_emax	d₃x	d₄x	b₄x	Inserts

80,000	H3108-8000 0827N	80	10	5	8	7.8	15	27	45	10	W3108...N
80,001	H3108-8000 1027N	80	10	5	10	7.8	15	27	45	12
80,002	H3108-8000 1227N	80	10	5	12	7.8	15	27	45	14
80,003	H3108-8000 1427N	80	10	5	14	7.8	15	27	45	16

80,004	H6120-8000 1227N	80	10	5	12.2	12/7*	15	27	45	14	W612…N/R/L
80,005	H6120-8000 1427N	80	10	5	14	12/7*	15	27	45	16
80,006	H6120-8000 1627N	80	10	5	16	12/7*	15	27	45	18
80,007	H6120-8000 1827N	80	10	5	18	12/7*	15	27	45	20
80,008	H6120-8000 2027N	80	10	5	20	12/7*	15	27	45	22

100,000	H3108-1000 0832N	100	14	7	8	7.8	24	32	48	10	W3108...N
100,001	H3108-1000 1032N	100	14	7	10	7.8	24	32	48	12
100,002	H3108-1000 1232N	100	14	7	12	7.8	24	32	48	14
100,003	H3108-1000 1432N	100	14	7	14	7.8	24	32	48	16

100,004	H6120-1000 1232N	100	12	6	12.2	12/7*	24	32	48	14	W612…N/R/L
100,005	H6120-1000 1432N	100	12	6	14	12/7*	24	32	48	16
100,006	H6120-1000 1632N	100	12	6	16	12/7*	24	32	48	18
100,007	H6120-1000 1832N	100	12	6	18	12/7*	24	32	48	20
100,008	H6120-1000 2032N	100	12	6	20	12/7*	24	32	48	22
* PCD-inserts with cutting length of 7 mm Special measurements e.g. from 5 mm onward can be delivered on request! in short time available Ordering example: 1 piece H 3108-8000 0827 N = Ordering number: 20003 80,000

Part nr. 20003
Code	Drawing nr.	Ø D	z	z_eff	a_p	b	a_emax	d₃x	d₄x	b₄x	Inserts

125,000	H3108-1250 0840N	125	18	9	8	7.8	30	40	58	10	W3108...N
125,001	H3108-1250 1040N	125	18	9	10	7.8	30	40	58	12
125,002	H3108-1250 1240N	125	18	9	12	7.8	30	40	58	14
125,003	H3108-1250 1440N	125	18	9	14	7.8	30	40	58	16

125,004	H6120-1250 1240N	125	14	7	12.2	12/7*	30	40	58	14	W612…N/R/L
125,005	H6120-1250 1440N	125	14	7	14	12/7*	30	40	58	16
125,006	H6120-1250 1640N	125	14	7	16	12/7*	30	40	58	18
125,007	H6120-1250 1840N	125	14	7	18	12/7*	30	40	58	20
125,008	H6120-1250 2040N	125	14	7	20	12/7*	30	40	58	22

160,000	H3108-1600 0840N	160	22	11	8	7.8	44	40	58	10	W3108...N
160,001	H3108-1600 1040N	160	22	11	10	7.8	44	40	58	12
160,002	H3108-1600 1240N	160	22	11	12	7.8	44	40	58	14
160,003	H3108-1600 1440N	160	22	11	14	7.8	44	40	58	16
* PCD-inserts with cutting length of 7 mm Special measurements e.g. from 5 mm onward can be delivered on request! in short time available Ordering example: 1 piece H 3108-1250 0840 N = Ordering number: 20003 125,000

Part nr. 20003
Code	Drawing nr.	Ø D	z	z_eff	a_p	b	a_emax	d₃x	d₄x	b₄x	Inserts

160,004	H6120-1600 1240N	160	18	9	12.2	12/7*	44	40	58	14	W612…N/R/L
160,005	H6120-1600 1440N	160	18	9	14	12/7*	44	40	58	16
160,006	H6120-1600 1640N	160	18	9	16	12/7*	44	40	58	18
160,007	H6120-1600 1840N	160	18	9	18	12/7*	44	40	58	20
160,008	H6120-1600 2040N	160	18	9	20	12/7*	44	40	58	22

200,000	H3108-2000 0850N	200	26	13	8	7.8	62	50	72	10	W3108...N
200,001	H3108-2000 1050N	200	26	13	10	7.8	62	50	72	12
200,002	H3108-2000 1250N	200	26	13	12	7.8	62	50	72	14
200,003	H3108-2000 1450N	200	26	13	14	7.8	62	50	72	16

200,004	H6120-2000 1250N	200	22	11	12.2	12/7*	62	50	72	14	W612…N/R/L
200,005	H6120-2000 1450N	200	22	11	14	12/7*	62	50	72	16
200,006	H6120-2000 1650N	200	22	11	16	12/7*	62	50	72	18
200,007	H6120-2000 1850N	200	22	11	18	12/7*	62	50	72	20
200,008	H6120-2000 2050N	200	22	11	20	12/7*	62	50	72	22
* PCD-inserts with cutting length of 7 mm Special measurements e.g. from 5 mm onward can be delivered on request! in short time available Ordering example: 1 piece H 6120-1600 1240 N = Ordering number: 20003 160,004

We reserve the right to make technical changes.
