| Tool Table | |||||
| Tool without blade | |||||

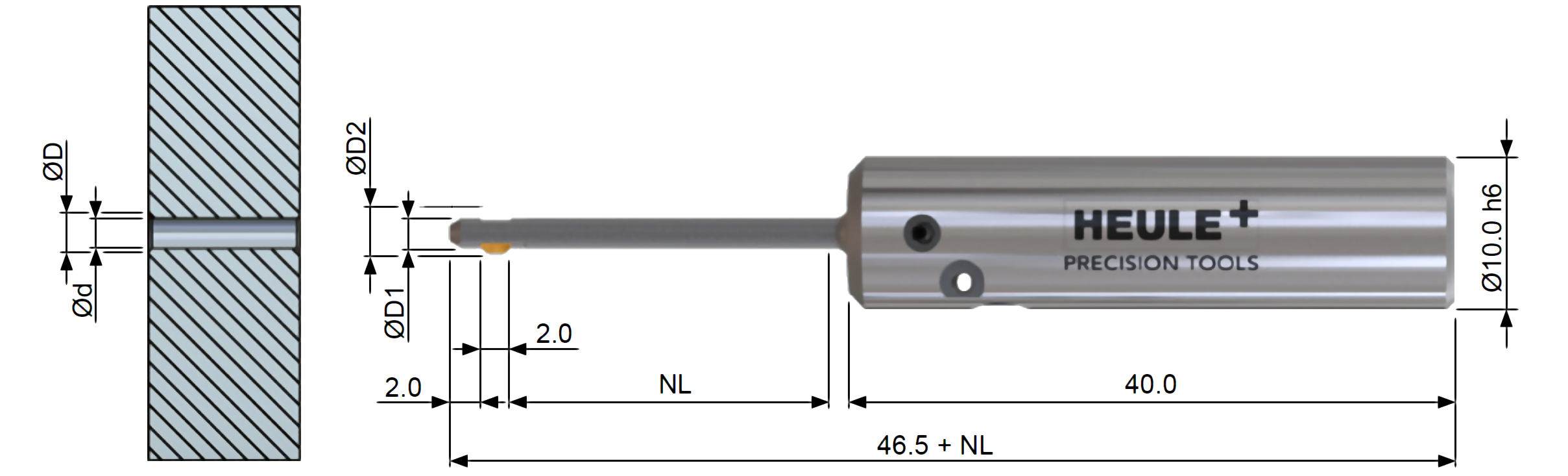

| Bore | Chamfer max1 | Tool | Max.2 | Part No. | Part No. |
| Ød | ØD | ØD1 | ØD2 | NL = 10.0 mm | NL = 20.0 mm |
| 2.0 | 2.4 | 1.95 | ØD + 0.2 | SNAP2/2.0/10 | SNAP2/2.0/20 |
| 2.1 | 2.4 / 2.6 | 2.05 | SNAP2/2.1/10 | SNAP2/2.1/20 | |
| 2.2 | 2.4 / 2.6 / 2.8 | 2.15 | SNAP2/2.2/10 | SNAP2/2.2/20 | |
| 2.3 | 2.6 / 2.8 | 2.25 | SNAP2/2.3/10 | SNAP2/2.3/20 | |
| 2.4 | 2.6 / 2.8 / 3.0 | 2.35 | SNAP2/2.4/10 | SNAP2/2.4/20 | |
| 2.5 | 2.8 / 3.0 | 2.45 | SNAP2/2.5/10 | SNAP2/2.5/20 | |
| 2.6 | 2.8 / 3.0 / 3.2 | 2.55 | SNAP2/2.6/10 | SNAP2/2.6/20 | |
| 2.7 | 3.0 / 3.2 | 2.65 | SNAP2/2.7/10 | SNAP2/2.7/20 | |
| 2.8 | 3.0 / 3.2 / 3.4 | 2.75 | SNAP2/2.8/10 | SNAP2/2.8/20 | |
| 2.9 | 3.2 / 3.4 | 2.85 | SNAP2/2.9/10 | SNAP2/2.9/20 | |
| 1) Different chamfer-Ø can be achieved per tool size by using different blades. One blade however produces one defined chamfer-Ø only. The achievable chamfer capacity varies slightly depending on material, blade force, cutting data or application. The indicated dimension is the theoretically possible maximum. 2) The maximum diameter D2 varies depending on the selected blade. Please calculate value with formula. Please mind any interfering edges. - The tool types SNAP2, SNAP3 and SNAP4 are available with cylindrical shank only. - Attention: The tools are without blade. The blades for the tool need to be ordered separately. |
|||||
| Spare Parts | ||

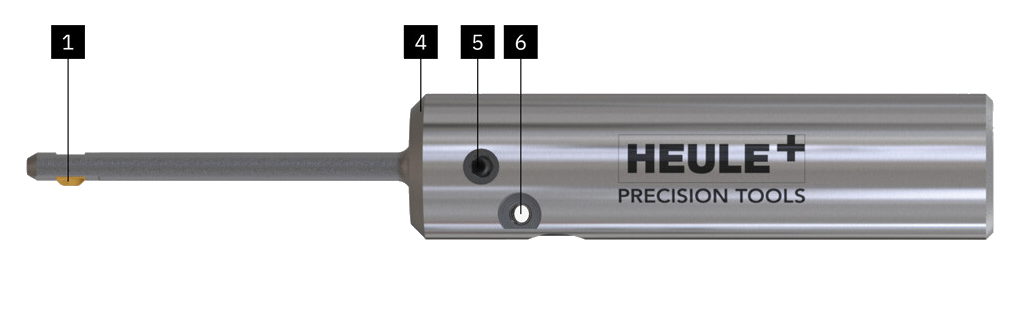

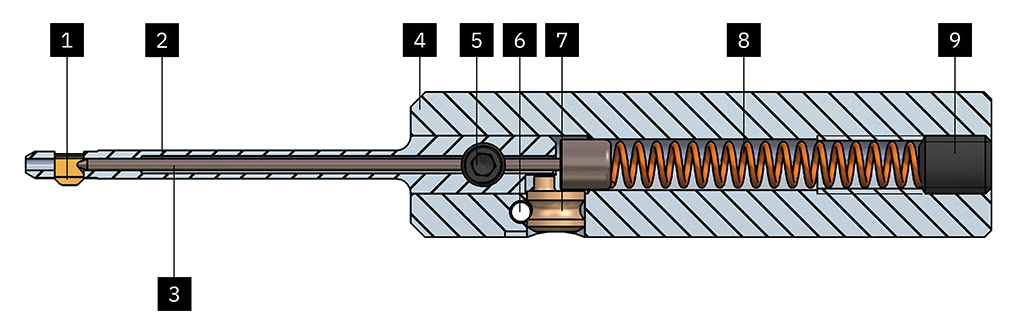

| Pos. | Description | Part No. |
| 1 | Blade | see below |
| 2 | Blade housing | see below |
| 3 | Control bolt | GH-Q-E-0236 (NL: 10.0 mm) GH-Q-E-0237 (NL: 20.0 mm) |
| 4 | Tool body SNAP2-4 Ø10.0 h6 | GH-Q-G-5024 |
| Tool body assembly SNAP2-4 Ø10.0 h6 incl. Excenter GH-S-E-0031 incl. Roll pin GH-C-E-0811 |
GH-Q-G-5025 | |
| 5 | Locking screw M3x3.3 | GH-H-S-1075 |
| 6 | Roll pin SNAP2-4 | GH-C-E-0811 |
| 7 | Excenter SNAP2-4 | GH-S-E-0031 |
| 8 | Spring Ø3.2xØ0.45x23.0 | GH-H-F-0047 |
| 9 | Set screw M4x5.0 DIN913 Wrench SW1.5 to Pos. 9 |
GH-H-S-0134 GH-H-S-2101 |
| Blades GS Geometry 90° | |||||
| Part No. forward and backward cutting |
Part No. backward cutting only |
||||
| Chamfer-Ø1 | Coating A | Coating D | Coating A | Coating D | |
| 2.4 | GH-Q-M-40031* | GH-Q-M-40032 | GH-Q-M-40631 | GH-Q-M-40632 | |
| 2.6 | GH-Q-M-40051* | GH-Q-M-40052 | GH-Q-M-40651 | GH-Q-M-40652 | |
| 2.8 | GH-Q-M-40071* | GH-Q-M-40072 | GH-Q-M-40671 | GH-Q-M-40672 | |
| 3.0 | GH-Q-M-40091* | GH-Q-M-40092 | GH-Q-M-40691 | GH-Q-M-40692 | |
| 3.2 | GH-Q-M-40111* | GH-Q-M-40112 | GH-Q-M-40711 | GH-Q-M-40712 | |
| 3.4 | GH-Q-M-40131* | GH-Q-M-40132 | GH-Q-M-40731 | GH-Q-M-40722 | |
| *) Standard items / Please enquire about stock or delivery times for all non-standard blades. 1) The indicated dimension is the theoretically possible maximum. Explanations to coatings A: Coating for steel, titanium, Inconel D: Coating for aluminium alloys only |
|||||
| Spare parts | ||||
| Blade Housing | Part No. | |||
| Tool Ref. | Tool-Ø D1 | Working length NL 10.0 mm |
Working length NL 20.0 mm |
Working length NL 30.0 mm |
| SNAP2/2.0/... | 1.95 | GH-Q-N-0001 | GH-Q-N-0061 | - |
| SNAP2/2.1/... | 2.05 | GH-Q-N-0002 | GH-Q-N-0062 | - |
| SNAP2/2.2/... | 2.15 | GH-Q-N-0003 | GH-Q-N-0063 | - |
| SNAP2/2.3/... | 2.25 | GH-Q-N-0004 | GH-Q-N-0064 | - |
| SNAP2/2.4/... | 2.35 | GH-Q-N-0005 | GH-Q-N-0065 | - |
| SNAP2/2.5/... | 2.45 | GH-Q-N-0006 | GH-Q-N-0066 | - |
| SNAP2/2.6/... | 2.55 | GH-Q-N-0007 | GH-Q-N-0067 | - |
| SNAP2/2.7/... | 2.65 | GH-Q-N-0008 | GH-Q-N-0068 | - |
| SNAP2/2.8/... | 2.75 | GH-Q-N-0009 | GH-Q-N-0069 | - |
| SNAP2/2.9/... | 2.85 | GH-Q-N-0010 | GH-Q-N-0070 | - |
| Order Example: SNAP2/2.0/20 = Blade housing GH-Q-N-0061 = NL 20.0 mm | ||||
| Thread Tool | ||
| Tool Reference | Tool-Ø D1 | Part No. |
| SNAP2/M2.5/10, SNAP2/M2.5/20 | 2.0 | GH-Q-N-0015, GH-Q-N-0075 |
| SNAP2/M3/10, SNAP2/M3/20 | 2.45 | GH-Q-N-0016, GH-Q-N-0076 |
We reserve the right to make technical changes.
