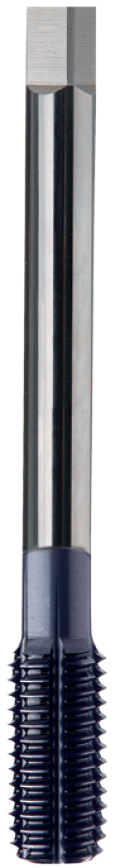

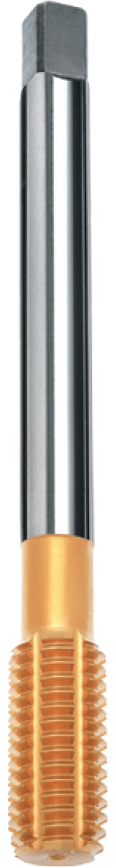

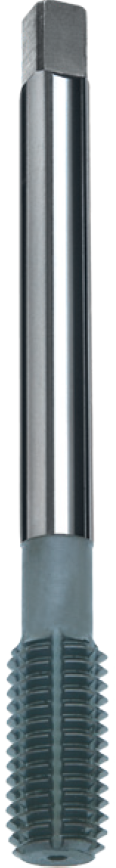

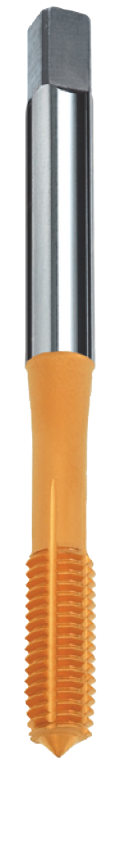

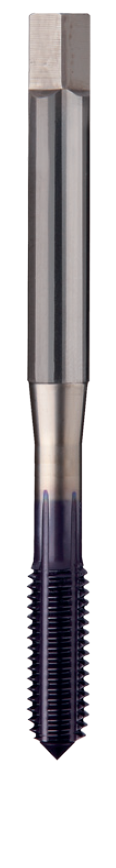

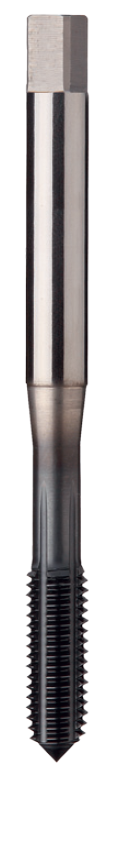

Ferg Threading Taps M T172A, T172, A172A, A172, AC172A, AC172

Threading Taps
ISO Metric coarse thread DIN 13

Any material with at least 12% elongation (cold forming)									High speed steel class E with 3% vanadium 1.3344 (EMo5V3) (M-3/2)		DIN 371 T172A 2000017210	DIN 376 T172 2500017210	DIN 371 T172A 2000217210	DIN 376 T172 2500217210	DIN 371 A172A 2000017212	DIN 376 A172 2500017212	DIN 371 A172A 2000217212	DIN 376 A172 2500217212	DIN 371 AC172A 2000017217	DIN 376 AC172 2500017217	DIN 371 AC172A 2000217217	DIN 376 AC172 2500217217
									HOLE		≤ 3 x d₁ Blind and through hole		≤ 3 x d₁ Blind and through hole		≤ 3 x d₁ Blind and through hole		≤ 3 x d₁ Blind and through hole		≤ 3 x d₁ Blind and through hole		≤ 3 x d₁ Blind and through hole
									Chamfer lead acc. to DIN 2197		E = 1.5xP		E = 1.5xP		E = 1.5xP		E = 1.5xP		E = 1.5xP		E = 1.5xP
									LIMIT		6HX		6GX		6HX		6GX		6HX		6GX
									COATING		TiN coating (Titanium nitride)		TiN coating (Titanium nitride)		TiAlN coating (Titanium Aluminium Nitride)		TiAlN coating (Titanium Aluminium Nitride)		AlCrN coating (Aluminium Chrome Nitride)		AlCrN coating (Aluminium Chrome Nitride)
									DIN		371	376	371	376	371	376	371	376	371	376	371	376
									ORDER No. EDP = Nr.+ ★		DIN 371 2000017210* T172A		DIN 371 2000217210* T172A		DIN 371 2000017212* A172A		DIN 371 2000217212* A172A		DIN 371 2000017217* AC172A		DIN 371 2000217217* AC172A
l₁ mm	l₂ mm	l₃ mm	DIN 371		DIN 376		mm	d₁ mm	P mm	★	DIN 376 2500017210* T172		DIN 376 2500217210* T172		DIN 376 2500017212* A172		DIN 376 2500217212* A172		DIN 376 2500017217* AC172		DIN 376 2500217217* AC172
			d₂ mm	a mm	d₂ mm	a mm
											Z		Z		Z		Z		Z		Z
45	9	-	2.8	2.1			1.82-1.78	M 2	(0.4)	020	3		3		3		3		3		3
45	9	-	2.8	2.1			2.02-1.98	M 2.2	(0.45)	022	3		3		3		3		3		3
45	9	-	2.8	2.1			2.12-2.08	M 2.3	(0.4)	023	3		3		3		3		3		3
50	9	-	2.8	2.1			2.32-2.28	M 2.5	(0.45)	025	3		3		3		3		3		3
50	9	-	2.8	2.1			2.42-2.38	M 2.6	(0.45)	026	3		3		3		3		3		3
56	11	16	3.5	2.7	2.2	-	2.83-2.77	M 3	(0.5)	030	3 ■		3 ■		3 ■		3 ■		3 ■		3 ■
56	12	17	4	3	2.5	2.1	3.28-3.22	M 3.5	(0.6)	035	4 ■		4 ■		4 ■		4 ■		4 ■		4 ■
63	13	19	4.5	3.4	2.8	2.1	3.73-3.67	M 4	(0.7)	040	4 ■		4 ■		4 ■		4 ■		4 ■		4 ■
70	14	22	6	4.9	3.5	2.7	4.18-4.12	M 4.5	(0.75)	045	4		4		4		4		4		4
70	15	29	6	4.9	3.5	2.7	4.68-4.62	M 5	(0.8)	050	5 ■		5 ■		5 ■		5 ■		5 ■		5 ■
80	17	30	6	4.9	4.5	3.4	5.60-5.50	M 6	(1)	060	5 ■		5 ■		5 ■		5 ■		5 ■		5 ■
80	17	31	7	5.5	5.5	4.3	6.60-6.50	M 7	(1)	070	5		5		5		5		5		5
90	20	35	8	6.2	6	4.9	7.45-7.35	M 8	(1.25)	080	5 ■		5 ■		5 ■		5 ■		5 ■		5 ■
100	22	38	10	8	7	5.5	9.35-9.25	M 10	(1.5)	100	5 ■		5 ■		5 ■		5 ■		5 ■		5 ■
110	24				9	7	11.25-11.15	M 12	(1.75)	120	6 ■		6 ■		6 ■		6 ■		6 ■		6 ■
110	26				11	9	13.15-13.05	M 14	(2)	140	6		6		6		6		6		6
110	27				12	9	15.15-15.05	M 16	(2)	160	6		6		6		6		6		6
125	30				14	11	16.95-16.85	M 18	(2.5)	180	6		6		6		6		6		6
140	32				16	12	18.95-18.85	M 20	(2.5)	200	6		6		6		6		6		6
140	32				18	14.5	20.95-20.85	M 22	(2.5)	220	6		6		6		6		6		6
160	34				18	14.5	22.70-22.60	M 24	(3)	240	6		6		6		6		6		6
							■ = Stock				EDP: A172A M 8-6G = 2000217212080
