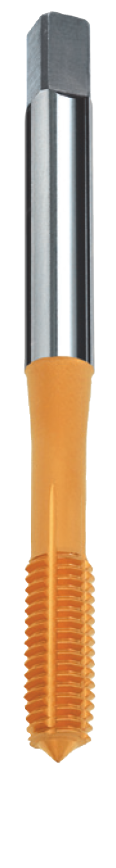

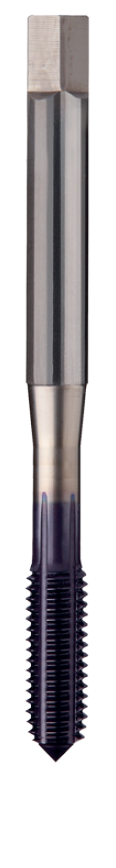

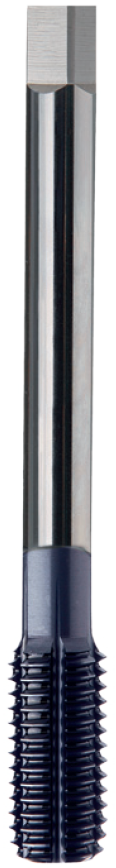

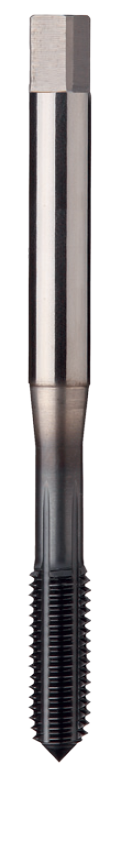

Ferg Threading Taps M T175, T175A, A175, A175A, AC175, AC175A

Threading Taps
ISO Metric coarse thread DIN 13

Any material with at least 12% elongation (cold forming)									173 High speed steel class E with 3% vanadium 1.3344 (EMo5V3) (M-3/2) 175-675 Special High speed steel class E with vanadium		DIN 371 T175A 2000017510	DIN 376 T175 2500017510	DIN 371 T175A 2000217510	DIN 376 T175 2500217510	DIN 371 A175A 2000017512	DIN 376 A175 2500017512	DIN 371 A175A 2000217512	DIN 376 A175 2500217512	DIN 371 AC175A 2000017517	DIN 376 AC175 2500017517
									HOLE		≤ 3 x d₁ Blind and through hole		≤ 3 x d₁ Blind and through hole		≤ 3 x d₁ Blind and through hole		≤ 3 x d₁ Blind and through hole		≤ 3 x d₁ Blind and through hole
									Chamfer lead acc. to DIN 2197		C = 2.5xP		C = 2.5xP		C = 2.5xP		C = 2.5xP		C = 2.5xP
									LIMIT		6HX		6GX		6HX		6GX		6HX
									COATING		TiN coating (Titanium nitride)		TiN coating (Titanium nitride)		TiAlN coating (Titanium Aluminium Nitride)		TiAlN coating (Titanium Aluminium Nitride)		AlCrN coating (Aluminium Chrome Nitride)
									DIN		371	376	371	376	371	376	371	376	371	376
									ORDER No. EDP = Nr.+ ★		DIN 371 2000017510* T175A		DIN 371 2000217510* T175A		DIN 371 2000017512* A175A		DIN 371 2000217512* A175A		DIN 371 2000017517* AC175A
l₁ mm	l₂ mm	l₃ mm	DIN 371		DIN 376		mm	d₁ mm	P mm	★	DIN 376 2500017510* T175		DIN 376 2500217510* T175		DIN 376 2500017512* A175		DIN 376 2500217512* A175		DIN 376 2500017517* AC175
			d₂ mm	a mm	d₂ mm	a mm
											Z		Z		Z		Z		Z
45	9	-	2.8	2.1			1.82-1.78	M 2	(0.4)	020	3		3
45	9	-	2.8	2.1			2.02-1.98	M 2.2	(0.45)	022	3		3
45	9	-	2.8	2.1			2.12-2.08	M 2.3	(0.4)	023	3		3
50	9	-	2.8	2.1			2.32-2.28	M 2.5	(0.45)	025	3		3
50	9	-	2.8	2.1			2.42-2.38	M 2.6	(0.45)	026	3		3
56	11	16	3.5	2.7	2.2	-	2.83-2.77	M 3	(0.5)	030	3 ■		3 ■		3 ■		3 ■		3 ■
56	12	17	4	3	2.5	2.1	3.28-3.22	M 3.5	(0.6)	035	4		4		4		4		4
63	13	19	4.5	3.4	2.8	2.1	3.73-3.67	M 4	(0.7)	040	4 ■		4 ■		4 ■		4 ■		4 ■
70	14	22	6	4.9	3.5	2.7	4.18-4.12	M 4.5	(0.75)	045	4		4		4		4		4
70	15	29	6	4.9	3.5	2.7	4.68-4.62	M 5	(0.8)	050	5 ■		5 ■		5 ■		5 ■		5 ■
80	17	30	6	4.9	4.5	3.4	5.60-5.50	M 6	(1)	060	5 ■		5 ■		5 ■		5 ■		5 ■
80	17	31	7	5.5	5.5	4.3	6.60-6.50	M 7	(1)	070	5		5		5		5		5
90	20	35	8	6.2	6	4.9	7.45-7.35	M 8	(1.25)	080	5 ■		5 ■		5 ■		5 ■		5 ■
100	22	38	10	8	7	5.5	9.35-9.25	M 10	(1.5)	100	5 ■		5 ■		5 ■		5 ■		5 ■
110	24				9	7	11.25-11.15	M 12	(1.75)	120	6 ■		6 ■		6 ■		6 ■		6 ■
110	26				11	9	13.15-13.05	M 14	(2)	140	6		6		6		6		6
110	27				12	9	15.15-15.05	M 16	(2)	160	6 ■		6 ■		6 ■		6 ■		6 ■
125	30				14	11	16.95-16.85	M 18	(2.5)	180	6		6		6		6		6
140	32				16	12	18.95-18.85	M 20	(2.5)	200	6		6		6		6		6
140	32				18	14.5	20.95-20.85	M 22	(2.5)	220	6		6		6		6		6
160	34				18	14.5	22.70-22.60	M 24	(3)	240	6		6		6		6		6
							■ = Stock				EDP: T175A M 6 = 2000017510060
