Zoller Smile

Easy to operate, equipped with all required standard measuring functions, and at an attractive price, the ZOLLER »smile« universal tool presetting and measuring machine has been designed specifically for measuring tools for manufacturing production. Preset and measure your tools prior to use. This lets you benefit across the board, with fewer rejects and machine crashes, lower production costs and higher productivity.

High quality – Quality guaranteed, consistent use
of high-quality brand products

Precise – High-precision spindle SK 50, high-quality
optic, leading image processing technology

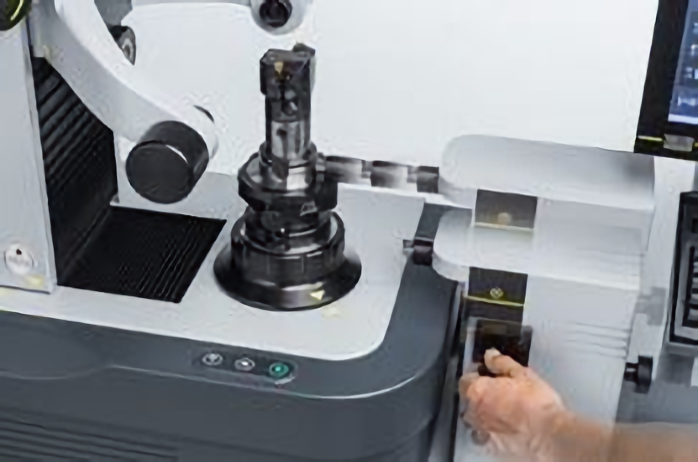

  Comfortable – Variable control unit, ergonomic
        single-hand operating device »eQ«, membrane
        keypad and freely accessible tool holder spindle

Easy to use – Graphical user guide in the »pilot«
image processing technology

Flexible – Extensive hardware and software options
for an individual adjustment to your production

Networkable – Data transmission direct to your
machine control unit

Technical Data	Maximum Tool Length Z	Measuring Range X Axis	Maximum Tool Diameter D	Maximum Snap Gauge Diameter D
»smile 320« 13"-Monitor	350 mm 13.8 inch	160 mm 6.3 inch	320 mm 12.6 inch	0 / 70²⁾ mm 0 / 2.8²⁾ inch

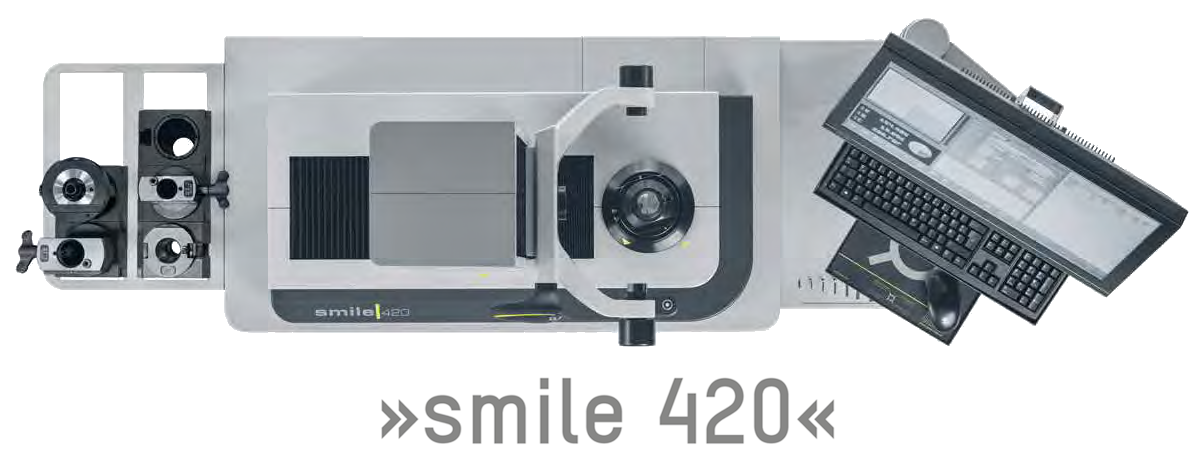

»smile 420« 17"-Monitor	*420 / 600 / 800¹⁾ mm* 16.5 / 24.4* / 31.5*¹⁾ inch	210 mm 8.3 inch	420 mm 16.5 inch	100 mm 3.9 inch

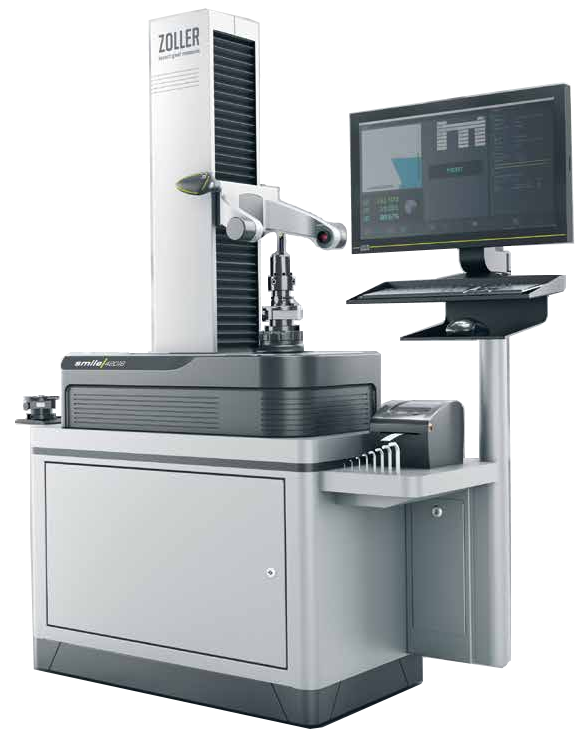

»smile 620« 24"-Monitor	*420 / 600 / 800¹⁾ mm* 16.5 / 24.4* / 31.5*¹⁾ inch	*310 mm** 12.2* inch	*620 mm** 24.4* inch	100 mm 3.9 inch
* optional ¹⁾ Maximum Tool Length Z 800 mm (31.5 inch) is only possible in combination with the table system. ²⁾ With the selection of the optic carrier standard with tool inspection.

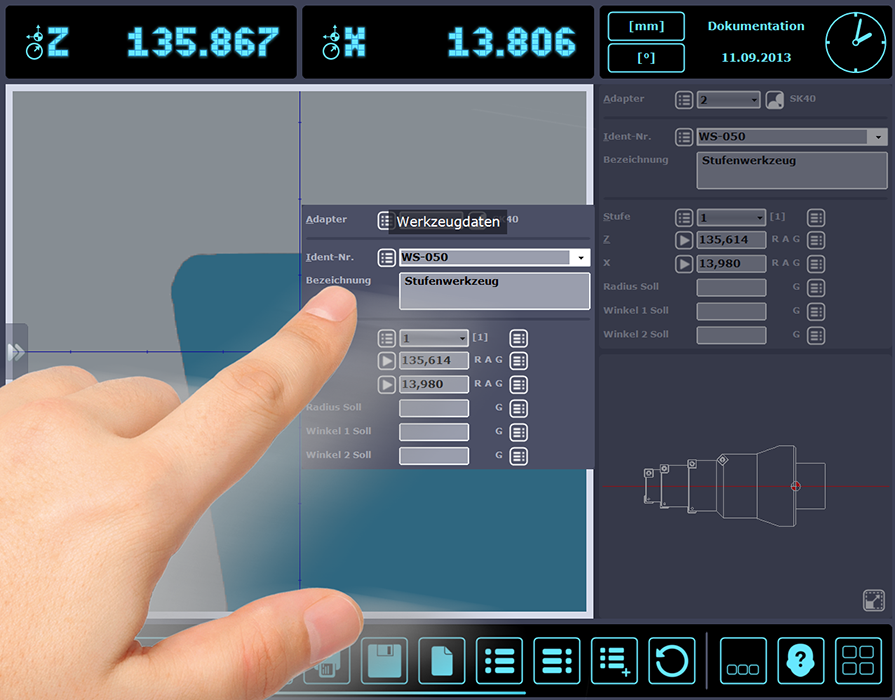

		Simple and Flexible Operation of the Software via Touch Screen Technology
		Modern design and even more features: The software for all-inclusive tool measurement

Autofocus for »pilot«	Cutting edge inspection	Center height measuring
»zidCode« with labels	Manual tool identification	Semi-automatic tool identification

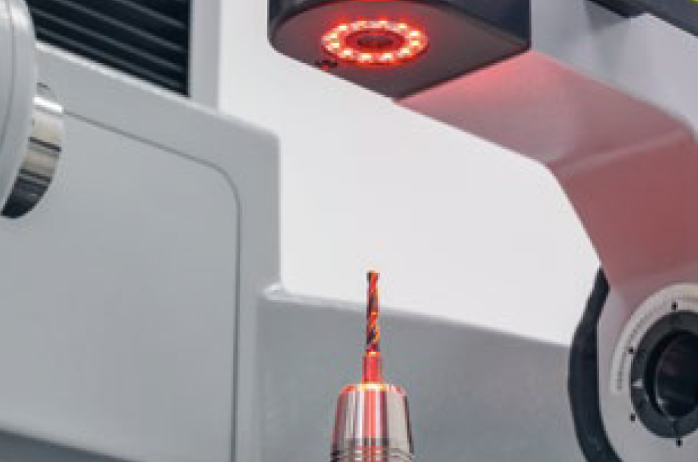

Tool inspection	Swiveable incident light camera	Data Transmission

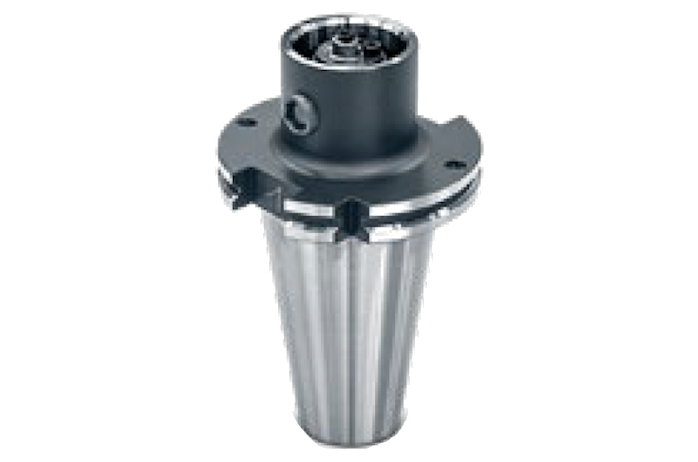

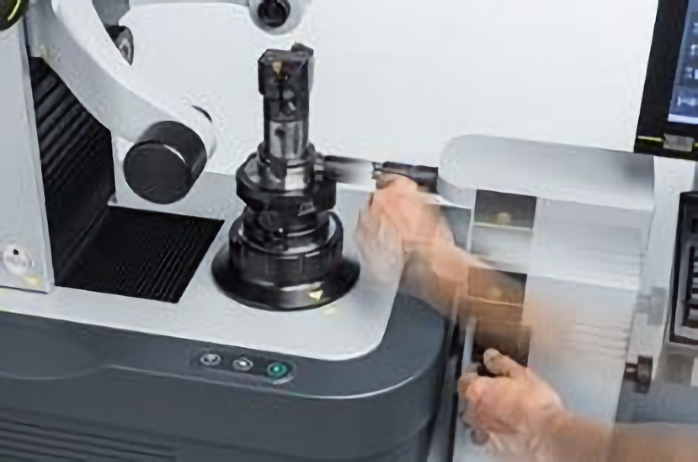

SK 50 High-precision Spindle	»pcs« High-precision Spindle
SK 10 to SK 60 steep taper	SK 25 to SK 50 steep taper	HSK 25 to HSK 125 hollow taper shunk
HSK 25 to HSK 63 hollow taper shunk	VDI cylinder shaft VDI 16 to VDI 60	VDI 16 to VDI 60 cylinder shaft
Hydro expansion	Hydro expansion	Kennametal
Kennametal	Coromant-Capto from C3 to C8	Coromant-Capto from C3 to C6

We reserve the right to make technical changes.
