PCD Inserts and spare parts for rough milling cutters |
 |
|||||

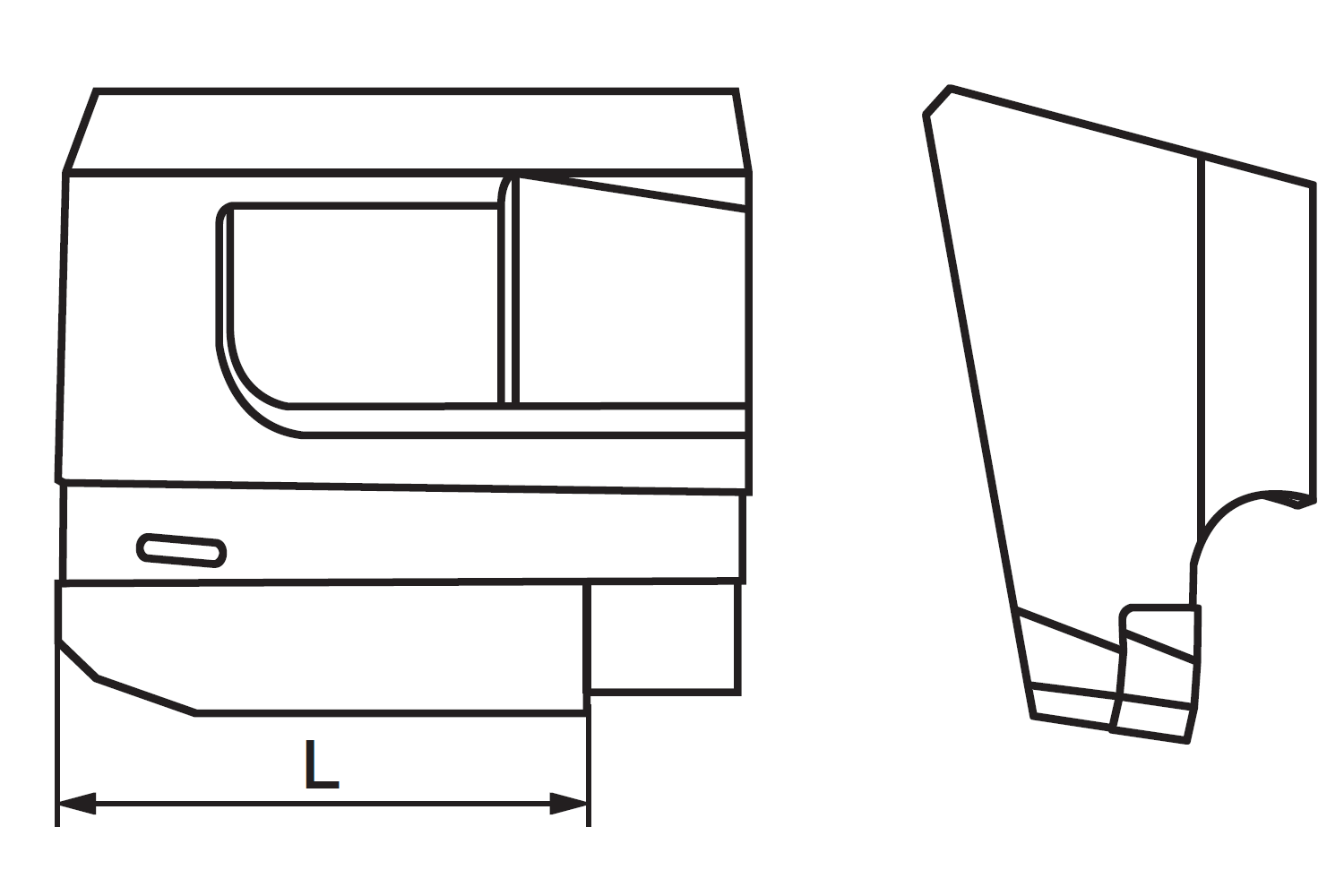

| PCD inserts for HPC rough milling cutters | |||||
| Part nr. 20375 |
|||||
| Code | Drawing nr. | R | F | Cutting length L | Tool material |
| 99,340 | W 9934-0330 0410R | -- | 20° / 45° | 12 | PCD 30 |
| 99,341 | W 9934-0830 0470R | 0.8 | 20° | 12 | PCD 30 |
 |
||

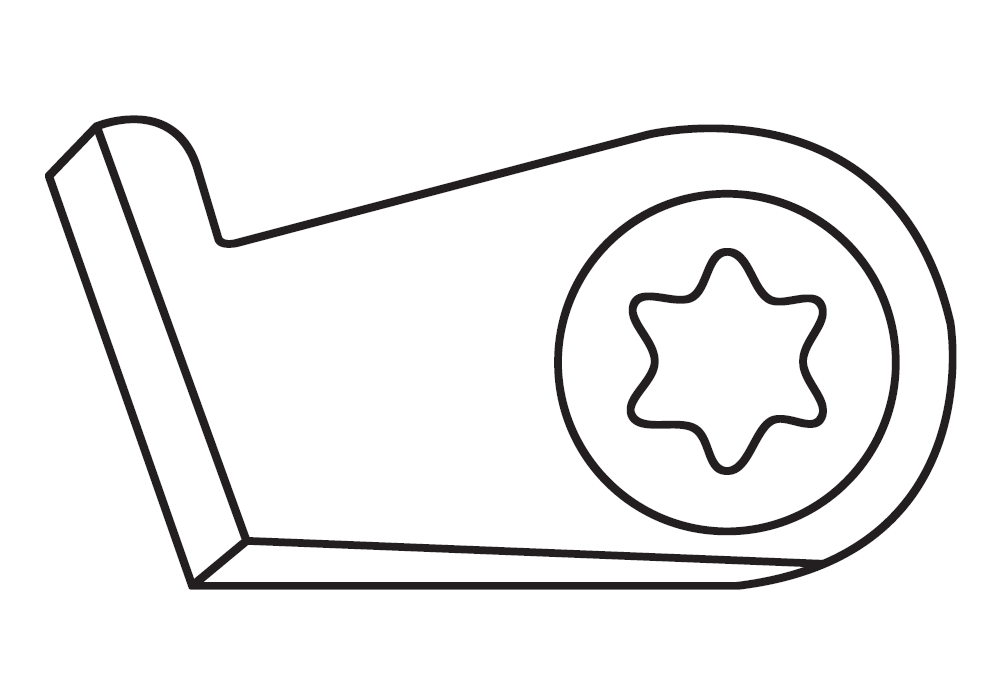

| Chip guiding elements (including clamp screw), CGE set | ||
| Part nr. 20075 |
||
| Code | Drawing nr. | Milling cutter diameter/mm |
| 63,000 | E63009934 | 63 – 160 |
| Spare parts | |||
| Clamping screw | Adjustment screw | ||
| Part nr. | Code | Part nr. | Code |
| 20080 | 3,500 | 20081 | 4,000 |
We reserve the right to make technical changes.
