Heule DL2

COFA

DL2

COFA-X

SNAP

DEFA

BSF

SOLO

GH-K

VEX

Tool Table
						Tool without blade

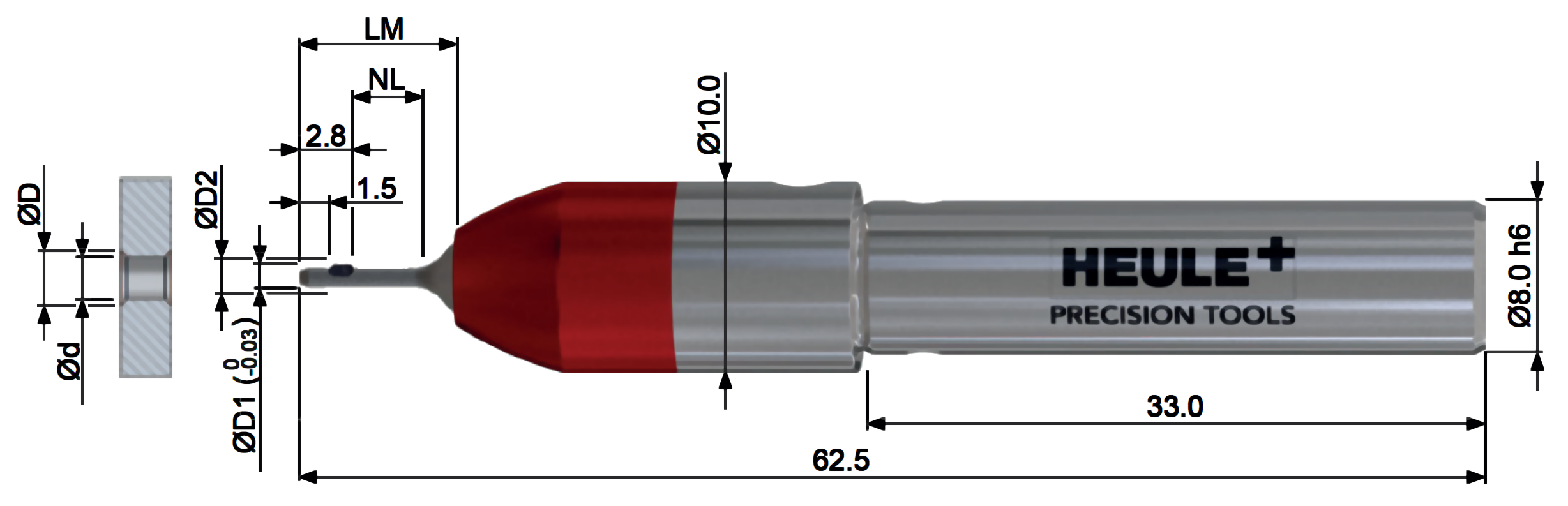

Bore	Deburr max.	Working length¹	Length blade	Tool	Max ²	Part No.
Ød	ØD	max. NL	housing LM	ØD1	ØD2
1.00	1.20	3.00	8.30	0.95	1.35	DL2/1.00/03^*
1.05	1.25	3.00	8.30	1.00	1.40	DL2/1.05/03^*
1.10	1.30	4.00	9.30	1.05	1.55	DL2/1.10/04^*
1.15	1.35	4.00	9.30	1.10	1.60	DL2/1.15/04^*
1.20	1.40	4.00	9.30	1.15	1.65	DL2/1.20/04^*
1.25	1.45	4.00	9.30	1.20	1.70	DL2/1.25/04^*
1.30	1.50	4.00	9.30	1.25	1.75	DL2/1.30/04^*
1.35	1.55	4.00	9.30	1.30	1.80	DL2/1.35/04
1.40	1.60	5.00	10.30	1.35	1.85	DL2/1.40/05^*
1.45	1.65	5.00	10.30	1.40	1.90	DL2/1.45/05
1.50	1.70	6.00	11.30	1.45	1.95	DL2/1.50/06^*
1.55	1.75	6.00	11.30	1.50	2.00	DL2/1.55/06
1.60	1.80	6.00	11.30	1.55	2.05	DL2/1.60/06^*
1.65	1.85	7.00	12.30	1.60	2.10	DL2/1.65/07
1.70	1.90	7.00	12.30	1.65	2.15	DL2/1.70/07^*
1.75	1.95	8.00	13.30	1.70	2.20	DL2/1.75/08
1.80	2.00	8.00	13.30	1.75	2.25	DL2/1.80/08^*
1.85	2.05	9.00	13.30	1.80	2.30	DL2/1.85/09
1.90	2.10	9.00	13.30	1.85	2.35	DL2/1.90/09^*
1.95	2.15	10.00	13.30	1.90	2.40	DL2/1.95/10
2.00	2.20	10.00	13.30	1.95	2.45	DL2/2.00/10^*
2.05	2.25	10.00	13.30	2.00	2.50	DL2/2.05/10
2.10	2.30	10.00	13.30	2.05	2.55	DL2/2.10/10^*
¹⁾ Customised working lengths are available upon request. ²⁾ Pay attention to interfering edges or surfaces! *^Standard items** / Please enquire about stock or delivery times for all non-standard blades. The tools are without blade. The blades for the tool need to be ordered separately.

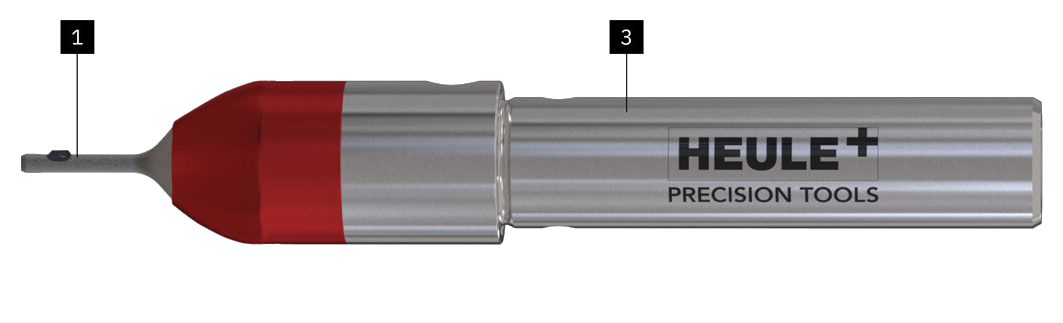

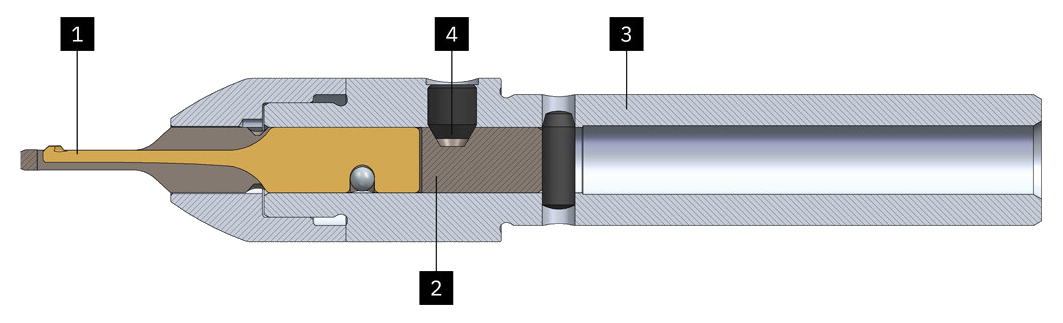

Spare Parts
Pos.	Description	Part No.
1	Blade	see below
2	Blade housing	see below Spare parts
3	Tool body	see below Spare parts
4	Fixing screw	GH-H-S-1125
	Torx wrench	GH-H-S-2021

Blades
		Part No. forward and backward cutting		Part No. backward cutting only
Bore-Ø	Deburr-Ø max.	Coating A	Coating D	Coating A	Coating D
1.00	1.20	DL2-M-0104-A	DL2-M-0104-D	DL2-M-0101-A^*	DL2-M-0101-D^*
1.05	1.25	DL2-M-0110-A	DL2-M-0110-D	DL2-M-0107-A^*	DL2-M-0107-D^*
1.10	1.30	DL2-M-0116-A	DL2-M-0116-D	DL2-M-0113-A^*	DL2-M-0113-D^*
1.15	1.35	DL2-M-0122-A	DL2-M-0122-D	DL2-M-0119-A^*	DL2-M-0119-D^*
1.20	1.40	DL2-M-0128-A	DL2-M-0128-D	DL2-M-0125-A^*	DL2-M-0125-D^*
1.25	1.45	DL2-M-0134-A	DL2-M-0134-D	DL2-M-0131-A^*	DL2-M-0131-D^*
1.30	1.50	DL2-M-0140-A	DL2-M-0140-D	DL2-M-0137-A^*	DL2-M-0137-D^*
1.35	1.55	DL2-M-0146-A	DL2-M-0146-D	DL2-M-0143-A	DL2-M-0143-D
1.40	1.60	DL2-M-0152-A	DL2-M-0152-D	DL2-M-0149-A^*	DL2-M-0149-D^*
1.45	1.65	DL2-M-0158-A	DL2-M-0158-D	DL2-M-0155-A	DL2-M-0155-D
1.50	1.70	DL2-M-0164-A	DL2-M-0164-D	DL2-M-0161-A^*	DL2-M-0161-D^*
1.55	1.75	DL2-M-0170-A	DL2-M-0170-D	DL2-M-0167-A	DL2-M-0167-D
1.60	1.80	DL2-M-0176-A	DL2-M-0176-D	DL2-M-0173-A^*	DL2-M-0173-D^*
1.65	1.85	DL2-M-0182-A	DL2-M-0182-D	DL2-M-0179-A	DL2-M-0179-D
1.70	1.90	DL2-M-0188-A	DL2-M-0188-D	DL2-M-0185-A^*	DL2-M-0185-D^*
1.75	1.95	DL2-M-0194-A	DL2-M-0194-D	DL2-M-0191-A	DL2-M-0191-D
1.80	2.00	DL2-M-0200-A	DL2-M-0200-D	DL2-M-0197-A^*	DL2-M-0197-D^*
1.85	2.05	DL2-M-0206-A	DL2-M-0206-D	DL2-M-0203-A	DL2-M-0203-D
1.90	2.10	DL2-M-0212-A	DL2-M-0212-D	DL2-M-0209-A^*	DL2-M-0209-D^*
1.95	2.15	DL2-M-0218-A	DL2-M-0218-D	DL2-M-0215-A	DL2-M-0215-D
2.00	2.20	DL2-M-0224-A	DL2-M-0224-D	DL2-M-0221-A^*	DL2-M-0221-D^*
2.05	2.25	DL2-M-0230-A	DL2-M-0230-D	DL2-M-0227-A	DL2-M-0227-D
2.10	2.30	DL2-M-0236-A	DL2-M-0236-D	DL2-M-0233-A^*	DL2-M-0233-D^*
*^Standard items / Please enquire about stock or delivery times for all non-standard blades. The blades are specific for the individual deburring diameters and therefore are not interchangeable with blades for other diameters. Definitions of coatings** D: for aluminium alloys A: steel, titanium, Inconel / for increased requirements

Spare parts
	Blade housing	Tool body
Bore-Ø	Part No.	Part No.
1.00	DL2-N-0102^*	DL2-G-0103^*
1.05	DL2-N-0112^*	DL2-G-0103^*
1.10	DL2-N-0123^*	DL2-G-0104^*
1.15	DL2-N-0133^*	DL2-G-0104^*
1.20	DL2-N-0143^*	DL2-G-0104^*
1.25	DL2-N-0153^*	DL2-G-0104^*
1.30	DL2-N-0163^*	DL2-G-0104^*
1.35	DL2-N-0174	DL2-G-0104^*
1.40	DL2-N-0184^*	DL2-G-0105^*
1.45	DL2-N-0194	DL2-G-0105^*
1.50	DL2-N-0205^*	DL2-G-0106^*
1.55	DL2-N-0215	DL2-G-0106^*
1.60	DL2-N-0225^*	DL2-G-0106^*
1.65	DL2-N-0236	DL2-G-0107^*
1.70	DL2-N-0246^*	DL2-G-0107^*
1.75	DL2-N-0257	DL2-G-0108^*
1.80	DL2-N-0267^*	DL2-G-0108^*
1.85	DL2-N-0278	DL2-G-0109^*
1.90	DL2-N-0288^*	DL2-G-0109^*
1.95	DL2-N-0299	DL2-G-0110^*
2.00	DL2-N-0309^*	DL2-G-0110^*
2.05	DL2-N-0319	DL2-G-0110^*
2.10	DL2-N-0329^*	DL2-G-0110^*
*^Standard items** / Please enquire about stock or delivery times for all non-standard blades. The blade housing and tool body must be paired according to the table. Failure to do so may result in a collision between the work piece and the tool.

We reserve the right to make technical changes.
