W1035   W1733   W2853   W4090  Tapered adjustment Radial adjustment Cartridges
 W1730   W2850   W3570   W3573
  Inserts precision ground
 for fineboring tools and cartridges

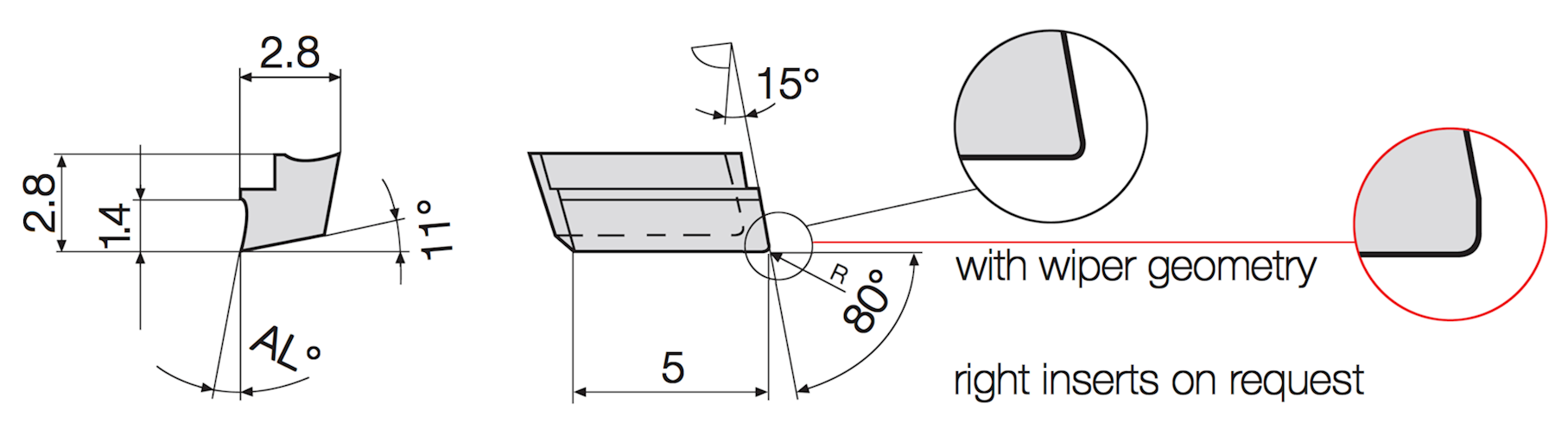

Insert W 2850-…. …. L


   Part nr.
20143		 Part nr.
20144		 Part nr.
20145		 Part nr.
20430		 Part nr.
20432		 Part nr.
20434
  uncoated     coated
Code Drawing nr. R AL° P10 P40 K10 G12 G16 G26
28,500 W2850-0214 1000L 0.2 10
28,501 W2850-0414 1000L 0.4 10
28,502 W2850-0214 1620L 0.2 16
28,503 W2850-0414 1620L 0.4 16
H H
       with wiper geometry Part nr.
20149		 Part nr.
20150		 Part nr.
20151		 Part nr.
20435		 Part nr.
20437		 Part nr.
20439
  uncoated     coated
Code Drawing nr. R AL° P10 P40 K10 G12 G16 G26
28,500 W2850-0214 1011L 0.2 10
28,501 W2850-0414 1011L 0.4 10
28,502 W2850-0214 1611L 0.2 16
28,503 W2850-0414 1611L 0.4 16
H
  Part nr.
20155		 Part nr.
20156		 Part nr.
20112		 Part nr.
20112		 Part nr.
20112		 Part nr.
20112
Code Drawing nr. R AL° PCD 10 CBN 40 H
28,500 W2850-0000 0000L 0.05 0
28,501 W2850-0200 0000L 0.2 0 H
28,502 W2850-0400 0000L 0.4 0 H
H
       with wiper geometry Part nr.
20157		 Part nr.
20112		 Part nr.
20112		 Part nr.
20112		 Part nr.
20112		 Part nr.
20112
Code Drawing nr. R AL° PCD 10 H
28,500 W2850-0000 0011L 0.05 0 H
28,501 W2850-0200 0011L 0.2 0 H
28,502 W2850-0400 0011L 0.4 0 H
   ex stock           on request
Ordering example: 1 piece W 2850-0214 1000 L G12 = Ordering number: 20430 28,500



We reserve the right to make technical changes.
