W1035   W1733   W2853   W4090  Tapered adjustment Radial adjustment Cartridges
 W1730   W2850   W3570   W3573
  Inserts precision ground
 for fineboring tools and cartridges

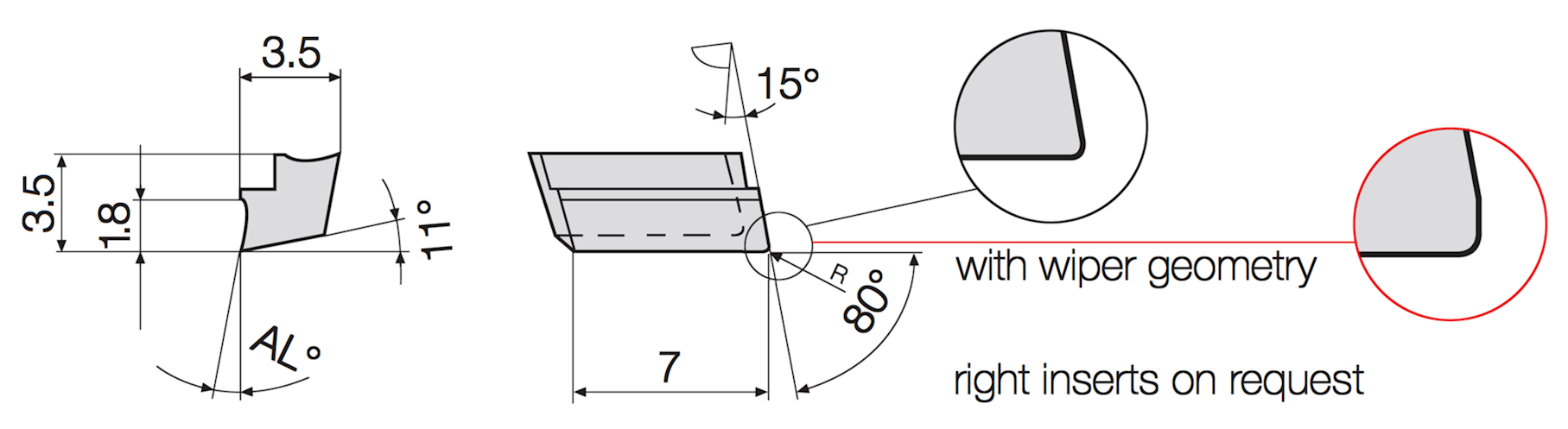

Insert W 3570-…. …. L


   Part nr.
20176		 Part nr.
20177		 Part nr.
20178		 Part nr.
20450		 Part nr.
20452		 Part nr.
20454
  uncoated     coated
Code Drawing nr. R AL° P10 P40 K10 G12 G16 G26
35,700 W3570-0218 1000L 0.2 10
35,701 W3570-0418 1000L 0.4 10
35,702 W3570-0218 1620L 0.2 16
35,703 W3570-0418 1620L 0.4 16
H H
       with wiper geometry Part nr.
20182		 Part nr.
20183		 Part nr.
20184		 Part nr.
20455		 Part nr.
20457		 Part nr.
20459
  uncoated     coated
Code Drawing nr. R AL° P10 P40 K10 G12 G16 G26
35,700 W3570-0218 1011L 0.2 10
35,701 W3570-0418 1011L 0.4 10
35,702 W3570-0218 1611L 0.2 16
35,703 W3570-0418 1611L 0.4 16
H
  Part nr.
20188		 Part nr.
20112		 Part nr.
20112		 Part nr.
20112		 Part nr.
20112		 Part nr.
20112
Code Drawing nr. R AL° PCD 10 H H
35,700 W3570-0013 0000L 0.05 0
35,701 W3570-0213 0000L 0.2 0 H H
35,702 W3570-0413 0000L 0.4 0 H H
H
       with wiper geometry Part nr.
20190		 Part nr.
20112		 Part nr.
20112		 Part nr.
20112		 Part nr.
20112		 Part nr.
20112
Code Drawing nr. R AL° PCD 10 H
35,700 W3570-0013 0011L 0.05 0 H
35,701 W3570-0213 0011L 0.2 0 H
35,702 W3570-0413 0011L 0.4 0 H
   ex stock           on request
Ordering example: 1 piece W 3570-0218 1000 L G16 = Ordering number: 20452 35,700
