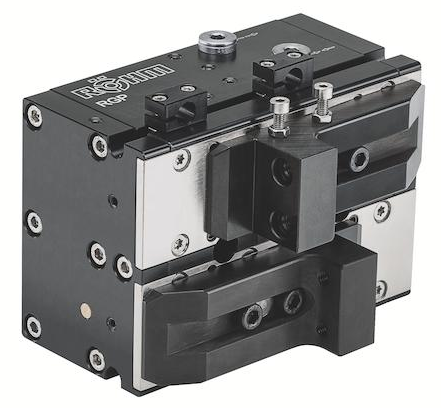

2-Jaw Long Stroke Gripper RGP-30 to RGP-50  |

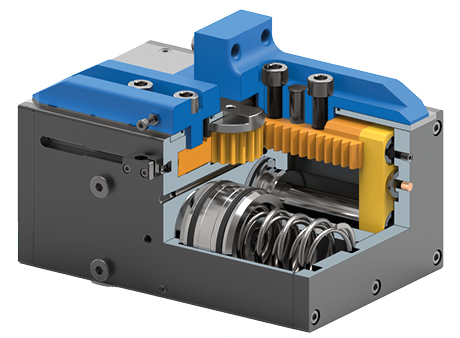

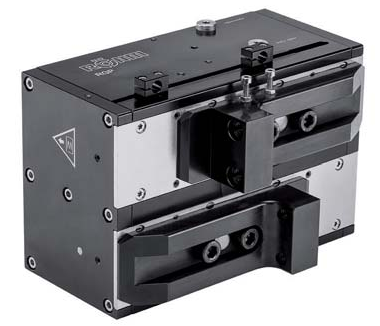

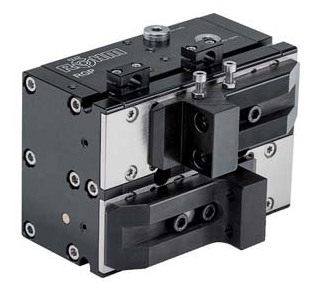

APPLICATION Sealed large-stroke gripper for handling large parts and high part variety. TYPE Available in sizes 30, 40 and 50 with integrated seal - optionally with gripping force securing device. High precision thanks to double-piston drive synchronized via gear wheel. |
 |
| TECHNICAL FEATURES - Centrically clamping in compact design made of high-strength, hard-coated aluminium alloy - All functional parts made of hardened steel for maximum service life - Robust double piston guide in compact design - Optional inductive and magnetic position sensors - Optionally available with FKM seals for higher temperatures up to 150°C (on request) - Integrable purge air connection to prevent contamination CUSTOMER BENEFITS » High gripping force with simultaneously high jaw stroke by means of double-acting pressure pistons » High torque support for using long gripper fingers thanks to elongated jaw guide » Sealed for rough ambient conditions with quad-ring seal and highly precise intermediate jaws » Maximum flexibility thanks to versatile connection and fastening options |
