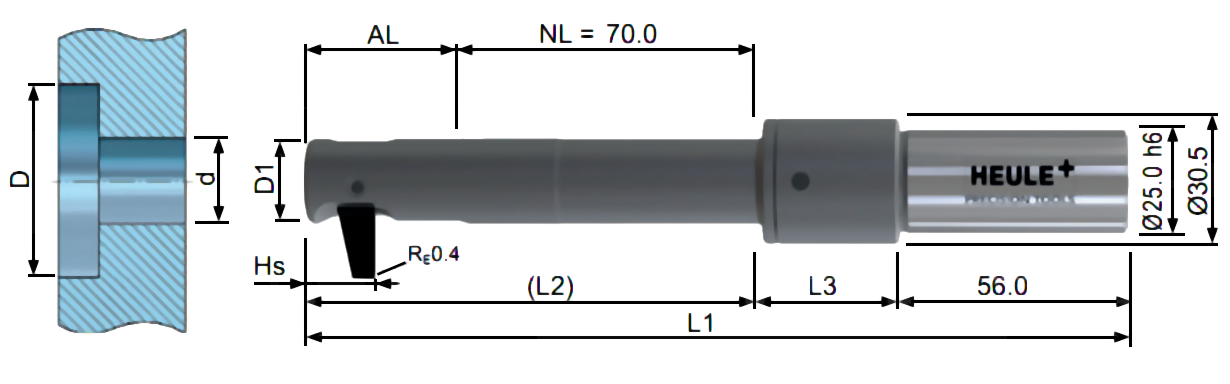

| Tool Table | ||||||||||
| Tool without blade | Blade1 | |||||||||
| Bore- Ød |
Tool.- Ød1 |
Counter- bore-ØD |
AL |
HS |
L1 |
L2 |
L3 |
Part No. |
Part No. |
|
| 17.50 | 17.40 | 26.00 | 37.25 | 16.30 | 200.25 | 111.25 | 33.00 | BSF-G-1750/070-20.0 | BSF-M-G-1A-6.0 | |
| 26.50 | BSF-G-1750/070-20.5 | |||||||||
| 27.00 | BSF-G-1750/070-21.0 | |||||||||
| 27.50 | BSF-G-1750/070-21.5 | |||||||||
| 28.00 | BSF-G-1750/070-22.0 | |||||||||
| 28.50 | BSF-G-1750/070-22.5 | |||||||||
| 29.00 | BSF-G-1750/070-23.0 | |||||||||
| 29.50 | BSF-G-1750/070-23.5 | |||||||||
| 30.00 | BSF-G-1750/070-24.0 | |||||||||
| 30.50 | BSF-G-1750/070-20.0 | BSF-M-G-1A-10.5 | ||||||||
| 31.00 | BSF-G-1750/070-20.5 | |||||||||
| 31.50 | BSF-G-1750/070-21.0 | |||||||||
| 32.00 | BSF-G-1750/070-21.5 | |||||||||
| 32.50 | BSF-G-1750/070-22.0 | |||||||||
| 33.00 | BSF-G-1750/070-22.5 | |||||||||
| 33.50 | BSF-G-1750/070-23.0 | |||||||||
| 34.00 | BSF-G-1750/070-23.5 | |||||||||
| 34.50 | BSF-G-1750/070-24.0 | |||||||||
| 35.00 | BSF-G-1750/070-20.0 | BSF-M-G-1A-15.0 | ||||||||
| 35.50 | BSF-G-1750/070-20.5 | |||||||||
| 36.00 | BSF-G-1750/070-21.0 | |||||||||
| 36.50 | BSF-G-1750/070-21.5 | |||||||||
| 37.00 | BSF-G-1750/070-22.0 | |||||||||
| 37.50 | BSF-G-1750/070-22.5 | |||||||||
| 38.00 | BSF-G-1750/070-23.0 | |||||||||
| 38.50 | BSF-G-1750/070-23.5 | |||||||||
| 39.00 | BSF-G-1750/070-24.0 | |||||||||
| 39.50 | BSF-G-1750/070-20.0 | BSF-M-G-1A-19.5 | ||||||||
| 39.50 | BSF-G-1750/070-20.5 | |||||||||
| 40.00 | BSF-G-1750/070-21.0 | |||||||||
| 40.50 | BSF-G-1750/070-21.5 | |||||||||
| 18.00 | 17.90 | 26.50 | 37.25 | 16.30 | 200.25 | 111.25 | 33.00 | BSF-G-1800/070-20.5 | BSF-M-G-1A-6.0 | |
| 27.00 | BSF-G-1800/070-21.0 | |||||||||
| 27.50 | BSF-G-1800/070-21.5 | |||||||||
| 28.00 | BSF-G-1800/070-22.0 | |||||||||
| 28.50 | BSF-G-1800/070-22.5 | |||||||||
| 29.00 | BSF-G-1800/070-23.0 | |||||||||
| 29.50 | BSF-G-1800/070-23.5 | |||||||||
| 30.00 | BSF-G-1800/070-24.0 | |||||||||
| 30.50 | BSF-G-1800/070-24.5 | |||||||||
| 31.00 | BSF-G-1800/070-20.5 | BSF-M-G-1A-10.5 | ||||||||
| 31.50 | BSF-G-1800/070-21.0 | |||||||||
| 32.00 | BSF-G-1800/070-21.5 | |||||||||
| 32.50 | BSF-G-1800/070-22.0 | |||||||||
| 33.00 | BSF-G-1800/070-22.5 | |||||||||
| 33.50 | BSF-G-1800/070-23.0 | |||||||||
| 34.00 | BSF-G-1800/070-23.5 | |||||||||
| 34.50 | BSF-G-1800/070-24.0 | |||||||||
| 35.00 | BSF-G-1800/070-24.5 | |||||||||
| 35.50 | BSF-G-1800/070-20.5 | BSF-M-G-1A-15.0 | ||||||||
| 36.00 | BSF-G-1800/070-21.0 | |||||||||
| 36.50 | BSF-G-1800/070-21.5 | |||||||||
| 37.00 | BSF-G-1800/070-22.0 | |||||||||
| 37.50 | BSF-G-1800/070-22.5 | |||||||||
| 38.00 | BSF-G-1800/070-23.0 | |||||||||
| 38.50 | BSF-G-1800/070-23.5 | |||||||||
| 39.00 | BSF-G-1800/070-24.0 | |||||||||
| 39.50 | BSF-G-1800/070-24.5 | |||||||||
| 40.00 | BSF-G-1800/070-20.5 | BSF-M-G-1A-19.5 | ||||||||
| 40.50 | BSF-G-1800/070-21.0 | |||||||||
| 41.00 | BSF-G-1800/070-21.5 | |||||||||
| 41.50 | BSF-G-1800/070-22.0 | |||||||||
| 18.50 | 18.40 | 27.00 | 37.25 | 16.30 | 200.25 | 111.25 | 33.00 | BSF-G-1850/070-21.0 | BSF-M-G-1A-6.0 | |
| 27.50 | BSF-G-1850/070-21.5 | |||||||||
| 28.00 | BSF-G-1850/070-22.0 | |||||||||
| 28.50 | BSF-G-1850/070-22.5 | |||||||||
| 29.00 | BSF-G-1850/070-23.0 | |||||||||
| 29.50 | BSF-G-1850/070-23.5 | |||||||||
| 30.00 | BSF-G-1850/070-24.0 | |||||||||
| 30.50 | BSF-G-1850/070-24.5 | |||||||||
| 31.00 | BSF-G-1850/070-25.0 | |||||||||
| 31.50 | BSF-G-1850/070-21.0 | BSF-M-G-1A-10.5 | ||||||||
| 32.00 | BSF-G-1850/070-21.5 | |||||||||
| 32.50 | BSF-G-1850/070-22.0 | |||||||||
| 33.00 | BSF-G-1850/070-22.5 | |||||||||
| 33.50 | BSF-G-1850/070-23.0 | |||||||||
| 34.00 | BSF-G-1850/070-23.5 | |||||||||
| 34.50 | BSF-G-1850/070-24.0 | |||||||||
| 35.00 | BSF-G-1850/070-24.5 | |||||||||
| 35.50 | BSF-G-1850/070-25.0 | |||||||||
| 36.00 | BSF-G-1850/070-21.0 | BSF-M-G-1A-15.0 | ||||||||
| 36.50 | BSF-G-1850/070-21.5 | |||||||||
| 37.00 | BSF-G-1850/070-22.0 | |||||||||
| 37.50 | BSF-G-1850/070-22.5 | |||||||||
| 38.00 | BSF-G-1850/070-23.0 | |||||||||
| 38.50 | BSF-G-1850/070-23.5 | |||||||||
| 39.00 | BSF-G-1850/070-24.0 | |||||||||
| 39.50 | BSF-G-1850/070-24.5 | |||||||||
| 40.00 | BSF-G-1850/070-25.0 | |||||||||
| 40.50 | BSF-G-1850/070-21.0 | BSF-M-G-1A-19.5 | ||||||||
| 41.00 | BSF-G-1850/070-21.5 | |||||||||
| 41.50 | BSF-G-1850/070-22.0 | |||||||||
| 42.00 | BSF-G-1850/070-22.5 | |||||||||
| 42.50 | BSF-G-1850/070-23.0 | |||||||||
| 43.00 | BSF-G-1850/070-23.5 | |||||||||
| 19.00 | 18.90 | 27.50 | 37.25 | 16.30 | 200.25 | 111.25 | 33.00 | BSF-G-1900/070-21.5 | BSF-M-G-1A-6.0 | |
| 28.00 | BSF-G-1900/070-22.0 | |||||||||
| 28.50 | BSF-G-1900/070-22.5 | |||||||||
| 29.00 | BSF-G-1900/070-23.0 | |||||||||
| 29.50 | BSF-G-1900/070-23.5 | |||||||||
| 30.00 | BSF-G-1900/070-24.0 | |||||||||
| 30.50 | BSF-G-1900/070-24.5 | |||||||||
| 31.00 | BSF-G-1900/070-25.0 | |||||||||
| 31.50 | BSF-G-1900/070-25.5 | |||||||||
| 32.00 | BSF-G-1900/070-21.5 | BSF-M-G-1A-10.5 | ||||||||
| 32.50 | BSF-G-1900/070-22.0 | |||||||||
| 33.00 | BSF-G-1900/070-22.5 | |||||||||
| 33.50 | BSF-G-1900/070-23.0 | |||||||||
| 34.00 | BSF-G-1900/070-23.5 | |||||||||
| 34.50 | BSF-G-1900/070-24.0 | |||||||||
| 35.00 | BSF-G-1900/070-24.5 | |||||||||
| 35.50 | BSF-G-1900/070-25.0 | |||||||||
| 36.00 | BSF-G-1900/070-25.5 | |||||||||
| 36.50 | BSF-G-1900/070-21.5 | BSF-M-G-1A-15.0 | ||||||||
| 37.00 | BSF-G-1900/070-22.0 | |||||||||
| 37.50 | BSF-G-1900/070-22.5 | |||||||||
| 38.00 | BSF-G-1900/070-23.0 | |||||||||
| 38.50 | BSF-G-1900/070-23.5 | |||||||||
| 39.00 | BSF-G-1900/070-24.0 | |||||||||
| 39.50 | BSF-G-1900/070-24.5 | |||||||||
| 40.00 | BSF-G-1900/070-25.0 | |||||||||
| 40.50 | BSF-G-1900/070-25.5 | |||||||||
| 41.00 | BSF-G-1900/070-21.5 | BSF-M-G-1A-19.5 | ||||||||
| 41.50 | BSF-G-1900/070-22.0 | |||||||||
| 42.00 | BSF-G-1900/070-22.5 | |||||||||
| 42.50 | BSF-G-1900/070-23.0 | |||||||||
| 43.00 | BSF-G-1900/070-23.5 | |||||||||
| 43.50 | BSF-G-1900/070-24.0 | |||||||||
| 44.00 | BSF-G-1900/070-24.5 | |||||||||
| 19.50 | 19.40 | 28.00 | 37.25 | 16.30 | 200.25 | 111.25 | 33.00 | BSF-G-1950/070-22.0 | BSF-M-G-1A-6.0 | |
| 28.50 | BSF-G-1950/070-22.5 | |||||||||
| 29.00 | BSF-G-1950/070-23.0 | |||||||||
| 29.50 | BSF-G-1950/070-23.5 | |||||||||
| 30.00 | BSF-G-1950/070-24.0 | |||||||||
| 30.50 | BSF-G-1950/070-24.5 | |||||||||
| 31.00 | BSF-G-1950/070-25.0 | |||||||||
| 31.50 | BSF-G-1950/070-25.5 | |||||||||
| 32.00 | BSF-G-1950/070-26.0 | |||||||||
| 32.50 | BSF-G-1950/070-22.0 | BSF-M-G-1A-10.5 | ||||||||
| 33.00 | BSF-G-1950/070-22.5 | |||||||||
| 33.50 | BSF-G-1950/070-23.0 | |||||||||
| 34.00 | BSF-G-1950/070-23.5 | |||||||||
| 34.50 | BSF-G-1950/070-24.0 | |||||||||
| 35.00 | BSF-G-1950/070-24.5 | |||||||||
| 35.50 | BSF-G-1950/070-25.0 | |||||||||
| 36.00 | BSF-G-1950/070-25.5 | |||||||||
| 36.50 | BSF-G-1950/070-26.0 | |||||||||
| 37.00 | BSF-G-1950/070-22.0 | BSF-M-G-1A-15.0 | ||||||||
| 37.50 | BSF-G-1950/070-22.5 | |||||||||
| 38.00 | BSF-G-1950/070-23.0 | |||||||||
| 38.50 | BSF-G-1950/070-23.5 | |||||||||
| 39.00 | BSF-G-1950/070-24.0 | |||||||||
| 39.50 | BSF-G-1950/070-24.5 | |||||||||
| 40.00 | BSF-G-1950/070-25.0 | |||||||||
| 40.50 | BSF-G-1950/070-25.5 | |||||||||
| 41.00 | BSF-G-1950/070-26.0 | |||||||||
| 41.50 | BSF-G-1950/070-22.0 | BSF-M-G-1A-19.5 | ||||||||
| 42.00 | BSF-G-1950/070-22.5 | |||||||||
| 42.50 | BSF-G-1950/070-23.0 | |||||||||
| 43.00 | BSF-G-1950/070-23.5 | |||||||||
| 43.50 | BSF-G-1950/070-24.0 | |||||||||
| 44.00 | BSF-G-1950/070-24.5 | |||||||||
| 44.50 | BSF-G-1950/070-25.0 | |||||||||
| 45.00 | BSF-G-1950/070-25.5 | |||||||||
| 20.00 | 19.90 | 28.50 | 37.25 | 16.30 | 200.25 | 111.25 | 33.00 | BSF-G-2000/070-22.5 | BSF-M-G-1A-6.0 | |
| 29.00 | BSF-G-2000/070-23.0 | |||||||||
| 29.50 | BSF-G-2000/070-23.5 | |||||||||
| 30.00 | BSF-G-2000/070-24.0 | |||||||||
| 30.50 | BSF-G-2000/070-24.5 | |||||||||
| 31.00 | BSF-G-2000/070-25.0 | |||||||||
| 31.50 | BSF-G-2000/070-25.5 | |||||||||
| 32.00 | BSF-G-2000/070-26.0 | |||||||||
| 32.50 | BSF-G-2000/070-26.5 | |||||||||
| 33.00 | BSF-G-2000/070-22.5 | BSF-M-G-1A-10.5 | ||||||||
| 33.50 | BSF-G-2000/070-23.0 | |||||||||
| 34.00 | BSF-G-2000/070-23.5 | |||||||||
| 34.50 | BSF-G-2000/070-24.0 | |||||||||
| 35.00 | BSF-G-2000/070-24.5 | |||||||||
| 35.50 | BSF-G-2000/070-25.0 | |||||||||
| 36.00 | BSF-G-2000/070-25.5 | |||||||||
| 36.50 | BSF-G-2000/070-26.0 | |||||||||
| 37.00 | BSF-G-2000/070-26.5 | |||||||||
| 37.50 | BSF-G-2000/070-22.5 | BSF-M-G-1A-15.0 | ||||||||
| 38.00 | BSF-G-2000/070-23.0 | |||||||||
| 38.50 | BSF-G-2000/070-23.5 | |||||||||
| 39.00 | BSF-G-2000/070-24.0 | |||||||||
| 39.50 | BSF-G-2000/070-24.5 | |||||||||
| 40.00 | BSF-G-2000/070-25.0 | |||||||||
| 40.50 | BSF-G-2000/070-25.5 | |||||||||
| 41.00 | BSF-G-2000/070-26.0 | |||||||||
| 41.50 | BSF-G-2000/070-26.5 | |||||||||
| 42.00 | BSF-G-2000/070-22.5 | BSF-M-G-1A-19.5 | ||||||||
| 42.50 | BSF-G-2000/070-23.0 | |||||||||
| 43.00 | BSF-G-2000/070-23.5 | |||||||||
| 43.50 | BSF-G-2000/070-24.0 | |||||||||
| 44.00 | BSF-G-2000/070-24.5 | |||||||||
| 44.50 | BSF-G-2000/070-25.0 | |||||||||
| 45.00 | BSF-G-2000/070-25.5 | |||||||||
| 45.50 | BSF-G-2000/070-26.0 | |||||||||
| 46.00 | BSF-G-2000/070-26.5 | |||||||||
| 20.50 | 20.40 | 29.00 | 39.50 | 16.30 | 202.50 | 113.50 | 33.00 | BSF-G-2050/070-23.0 | BSF-M-G-1A-6.0 | |
| 29.50 | BSF-G-2050/070-23.5 | |||||||||
| 30.00 | BSF-G-2050/070-24.0 | |||||||||
| 30.50 | BSF-G-2050/070-24.5 | |||||||||
| 31.00 | BSF-G-2050/070-25.0 | |||||||||
| 31.50 | BSF-G-2050/070-25.5 | |||||||||
| 32.00 | BSF-G-2050/070-26.0 | |||||||||
| 32.50 | BSF-G-2050/070-26.5 | |||||||||
| 33.00 | BSF-G-2050/070-27.0 | |||||||||
| 33.50 | BSF-G-2050/070-23.0 | BSF-M-G-1A-10.5 | ||||||||
| 34.00 | BSF-G-2050/070-23.5 | |||||||||
| 34.50 | BSF-G-2050/070-24.0 | |||||||||
| 35.00 | BSF-G-2050/070-24.5 | |||||||||
| 35.50 | BSF-G-2050/070-25.0 | |||||||||
| 36.00 | BSF-G-2050/070-25.5 | |||||||||
| 36.50 | BSF-G-2050/070-26.0 | |||||||||
| 37.00 | BSF-G-2050/070-26.5 | |||||||||
| 37.50 | BSF-G-2050/070-27.0 | |||||||||
| 38.00 | BSF-G-2050/070-23.0 | BSF-M-G-1A-15.0 | ||||||||
| 38.50 | BSF-G-2050/070-23.5 | |||||||||
| 39.00 | BSF-G-2050/070-24.0 | |||||||||
| 39.50 | BSF-G-2050/070-24.5 | |||||||||
| 40.00 | BSF-G-2050/070-25.0 | |||||||||
| 40.50 | BSF-G-2050/070-25.5 | |||||||||
| 41.00 | BSF-G-2050/070-26.0 | |||||||||
| 41.50 | BSF-G-2050/070-26.5 | |||||||||
| 42.00 | BSF-G-2050/070-27.0 | |||||||||
| 42.50 | BSF-G-2050/070-23.0 | BSF-M-G-1A-19.5 | ||||||||
| 43.00 | BSF-G-2050/070-23.5 | |||||||||
| 43.50 | BSF-G-2050/070-24.0 | |||||||||
| 44.00 | BSF-G-2050/070-24.5 | |||||||||
| 44.50 | BSF-G-2050/070-25.0 | |||||||||
| 45.00 | BSF-G-2050/070-25.5 | |||||||||
| 45.50 | BSF-G-2050/070-26.0 | |||||||||
| 46.00 | BSF-G-2050/070-26.5 | |||||||||
| 46.50 | BSF-G-2050/070-27.0 | |||||||||
| 47.00 | BSF-G-2050/070-23.0 | BSF-M-G-1A-24.0 | ||||||||
| 47.50 | BSF-G-2050/070-23.5 | |||||||||
| 21.00 | 20.90 | 29.50 | 39.50 | 16.30 | 202.50 | 113.50 | 33.00 | BSF-G-2100/070-23.5 | BSF-M-G-1A-6.0 | |
| 30.00 | BSF-G-2100/070-24.0 | |||||||||
| 30.50 | BSF-G-2100/070-24.5 | |||||||||
| 31.00 | BSF-G-2100/070-25.0 | |||||||||
| 31.50 | BSF-G-2100/070-25.5 | |||||||||
| 32.00 | BSF-G-2100/070-26.0 | |||||||||
| 32.50 | BSF-G-2100/070-26.5 | |||||||||
| 33.00 | BSF-G-2100/070-27.0 | |||||||||
| 33.50 | BSF-G-2100/070-27.5 | |||||||||
| 34.00 | BSF-G-2100/070-23.5 | BSF-M-G-1A-10.5 | ||||||||
| 34.50 | BSF-G-2100/070-24.0 | |||||||||
| 35.00 | BSF-G-2100/070-24.5 | |||||||||
| 35.50 | BSF-G-2100/070-25.0 | |||||||||
| 36.00 | BSF-G-2100/070-25.5 | |||||||||
| 36.50 | BSF-G-2100/070-26.0 | |||||||||
| 37.00 | BSF-G-2100/070-26.5 | |||||||||
| 37.50 | BSF-G-2100/070-27.0 | |||||||||
| 38.00 | BSF-G-2100/070-27.5 | |||||||||
| 38.50 | BSF-G-2100/070-23.5 | BSF-M-G-1A-15.0 | ||||||||
| 39.00 | BSF-G-2100/070-24.0 | |||||||||
| 39.50 | BSF-G-2100/070-24.5 | |||||||||
| 40.00 | BSF-G-2100/070-25.0 | |||||||||
| 40.50 | BSF-G-2100/070-25.5 | |||||||||
| 41.00 | BSF-G-2100/070-26.0 | |||||||||
| 41.50 | BSF-G-2100/070-26.5 | |||||||||
| 42.00 | BSF-G-2100/070-27.0 | |||||||||
| 42.50 | BSF-G-2100/070-27.5 | |||||||||
| 43.00 | BSF-G-2100/070-23.5 | BSF-M-G-1A-19.5 | ||||||||
| 43.50 | BSF-G-2100/070-24.0 | |||||||||
| 44.00 | BSF-G-2100/070-24.5 | |||||||||
| 44.50 | BSF-G-2100/070-25.0 | |||||||||
| 45.00 | BSF-G-2100/070-25.5 | |||||||||
| 45.50 | BSF-G-2100/070-26.0 | |||||||||
| 46.00 | BSF-G-2100/070-26.5 | |||||||||
| 46.50 | BSF-G-2100/070-27.0 | |||||||||
| 47.00 | BSF-G-2100/070-27.5 | |||||||||
| 47.50 | BSF-G-2100/070-23.5 | BSF-M-G-1A-24.0 | ||||||||
| 48.00 | BSF-G-2100/070-24.0 | |||||||||
| 48.50 | BSF-G-2100/070-24.5 | |||||||||
| 49.00 | BSF-G-2100/070-25.0 | |||||||||
| 1) A = Coating for steel alloys, titanium and Inconel / D = Coating for aluminium alloys - Standard shank for tool part number without any addition: Cylindrical shank. With addition: "-HB" = Weldon shank, "-HE" = Whistle Notch shank - For Tools with air activation add "A" to the article number (e.g. BSFA-G-1750/070-20.0) - Attention: The blades for the tool need to be ordered separately. |
||||||||||
| Spare Parts | ||
| Pos. | Description | Part No. |
| 1 | Blade | see above |
| 2 | Split pin | BSF-E-0013 |
| 3 | Control bolt | see below |
| 4 | Relief bore/internal coolant | |
| 5 | Blade housing | see below |
| 6 | Clamping screw | GH-H-S-0202 |
| 7 | Pressure spring | GH-H-F-0051 |
| 8 | Stop screw for piston safety | GH-H-S-0302 |
| 9 | Piston | BSF-E-0014 |
| 10 | Shaft | BSF-S-0004 |
| Spare parts | |||||||
| Blade Housing and Control Bolt | |||||||
| Blade Housing | Control Bolt | ||||||
| Tool Ref. | Part No. | Part No. | |||||
| BSF-G-1750/070-20.0 | 1750/N100/070 | BSF-B-0012 | |||||
| BSF-G-1750/070-20.5 | 1750/N075/070 | BSF-B-0012 | |||||
| BSF-G-1750/070-21.0 | 1750/N050/070 | BSF-B-0012 | |||||
| BSF-G-1750/070-21.5 | 1750/N025/070 | BSF-B-0012 | |||||
| BSF-G-1750/070-22.0 | 1750/0000/070 | BSF-B-0012 | |||||
| BSF-G-1750/070-22.5 | 1750/P025/070 | BSF-B-0012 | |||||
| BSF-G-1750/070-23.0 | 1750/P050/070 | BSF-B-0012 | |||||
| BSF-G-1750/070-23.5 | 1750/P075/070 | BSF-B-0012 | |||||
| BSF-G-1750/070-24.0 | 1750/P100/070 | BSF-B-0012 | |||||
| BSF-G-1800/070-20.5 | 1800/N075/070 | BSF-B-0012 | |||||
| BSF-G-1800/070-21.0 | 1800/N050/070 | BSF-B-0012 | |||||
| BSF-G-1800/070-21.5 | 1800/N025/070 | BSF-B-0012 | |||||
| BSF-G-1800/070-22.0 | 1800/0000/070 | BSF-B-0012 | |||||
| BSF-G-1800/070-22.5 | 1800/P025/070 | BSF-B-0012 | |||||
| BSF-G-1800/070-23.0 | 1800/P050/070 | BSF-B-0012 | |||||
| BSF-G-1800/070-23.5 | 1800/P075/070 | BSF-B-0012 | |||||
| BSF-G-1800/070-24.0 | 1800/P100/070 | BSF-B-0012 | |||||
| BSF-G-1800/070-24.5 | 1800/P125/070 | BSF-B-0012 | |||||
| BSF-G-1850/070-21.0 | 1850/N050/070 | BSF-B-0012 | |||||
| BSF-G-1850/070-21.5 | 1850/N025/070 | BSF-B-0012 | |||||
| BSF-G-1850/070-22.0 | 1850/0000/070 | BSF-B-0012 | |||||
| BSF-G-1850/070-22.5 | 1850/P025/070 | BSF-B-0012 | |||||
| BSF-G-1850/070-23.0 | 1850/P050/070 | BSF-B-0012 | |||||
| BSF-G-1850/070-23.5 | 1850/P075/070 | BSF-B-0012 | |||||
| BSF-G-1850/070-24.0 | 1850/P100/070 | BSF-B-0012 | |||||
| BSF-G-1850/070-24.5 | 1850/P125/070 | BSF-B-0012 | |||||
| BSF-G-1850/070-25.0 | 1850/P150/070 | BSF-B-0012 | |||||
| BSF-G-1900/070-21.5 | 1900/N025/070 | BSF-B-0012 | |||||
| BSF-G-1900/070-22.0 | 1900/0000/070 | BSF-B-0012 | |||||
| BSF-G-1900/070-22.5 | 1900/P025/070 | BSF-B-0012 | |||||
| BSF-G-1900/070-23.0 | 1900/P050/070 | BSF-B-0012 | |||||
| BSF-G-1900/070-23.5 | 1900/P075/070 | BSF-B-0012 | |||||
| BSF-G-1900/070-24.0 | 1900/P100/070 | BSF-B-0012 | |||||
| BSF-G-1900/070-24.5 | 1900/P125/070 | BSF-B-0012 | |||||
| BSF-G-1900/070-25.0 | 1900/P150/070 | BSF-B-0012 | |||||
| BSF-G-1900/070-25.5 | 1900/P175/070 | BSF-B-0012 | |||||
| BSF-G-1950/070-22.0 | 1950/0000/070 | BSF-B-0012 | |||||
| BSF-G-1950/070-22.5 | 1950/P025/070 | BSF-B-0012 | |||||
| BSF-G-1950/070-23.0 | 1950/P050/070 | BSF-B-0012 | |||||
| BSF-G-1950/070-23.5 | 1950/P075/070 | BSF-B-0012 | |||||
| BSF-G-1950/070-24.0 | 1950/P100/070 | BSF-B-0012 | |||||
| BSF-G-1950/070-24.5 | 1950/P125/070 | BSF-B-0012 | |||||
| BSF-G-1950/070-25.0 | 1950/P150/070 | BSF-B-0012 | |||||
| BSF-G-1950/070-25.5 | 1950/P175/070 | BSF-B-0012 | |||||
| BSF-G-1950/070-26.0 | 1950/P200/070 | BSF-B-0012 | |||||
| BSF-G-2000/070-22.5 | 2000/P025/070 | BSF-B-0012 | |||||
| BSF-G-2000/070-23.0 | 2000/P050/070 | BSF-B-0012 | |||||
| BSF-G-2000/070-23.5 | 2000/P075/070 | BSF-B-0012 | |||||
| BSF-G-2000/070-24.0 | 2000/P100/070 | BSF-B-0012 | |||||
| BSF-G-2000/070-24.5 | 2000/P125/070 | BSF-B-0012 | |||||
| BSF-G-2000/070-25.0 | 2000/P150/070 | BSF-B-0012 | |||||
| BSF-G-2000/070-25.5 | 2000/P175/070 | BSF-B-0012 | |||||
| BSF-G-2000/070-26.0 | 2000/P200/070 | BSF-B-0012 | |||||
| BSF-G-2000/070-26.5 | 2000/P225/070 | BSF-B-0012 | |||||
| BSF-G-2050/070-23.0 | 2050/P050/070 | BSF-B-0013 | |||||
| BSF-G-2050/070-23.5 | 2050/P075/070 | BSF-B-0013 | |||||
| BSF-G-2050/070-24.0 | 2050/P100/070 | BSF-B-0013 | |||||
| BSF-G-2050/070-24.5 | 2050/P125/070 | BSF-B-0013 | |||||
| BSF-G-2050/070-25.0 | 2050/P150/070 | BSF-B-0013 | |||||
| BSF-G-2050/070-25.5 | 2050/P175/070 | BSF-B-0013 | |||||
| BSF-G-2050/070-26.0 | 2050/P200/070 | BSF-B-0013 | |||||
| BSF-G-2050/070-26.5 | 2050/P225/070 | BSF-B-0013 | |||||
| BSF-G-2050/070-27.0 | 2050/P250/070 | BSF-B-0013 | |||||
| BSF-G-2100/070-23.5 | 2100/P075/070 | BSF-B-0013 | |||||
| BSF-G-2100/070-24.0 | 2100/P100/070 | BSF-B-0013 | |||||
| BSF-G-2100/070-24.5 | 2100/P125/070 | BSF-B-0013 | |||||
| BSF-G-2100/070-25.0 | 2100/P150/070 | BSF-B-0013 | |||||
| BSF-G-2100/070-25.5 | 2100/P175/070 | BSF-B-0013 | |||||
| BSF-G-2100/070-26.0 | 2100/P200/070 | BSF-B-0013 | |||||
| BSF-G-2100/070-26.5 | 2100/P225/070 | BSF-B-0013 | |||||
| BSF-G-2100/070-27.0 | 2100/P250/070 | BSF-B-0013 | |||||
| BSF-G-2100/070-27.5 | 2100/P275/070 | BSF-B-0013 | |||||
| Spare Parts BSF-Air specific components | ||
| Pos. | Description | Part No. |
| 1 | Blade | see above |
| 2 | Split pin | BSF-E-0013 |
| 3 | Control bolt | see below |
| 4 | Relief bore/internal coolant | |
| 5 | Blade housing | see above |
| 6 | Clamping screw | GH-H-S-0202 |
| 7 | Pressure spring | GH-H-F-0051 |
| 8 | Stop screw for piston safety | GH-H-S-0302 |
| 9 | Shaft | BSFA-S-0002 (Ø25), BSFA-S-0003 (Ø32) |
| 10 | Air cylinder | BSFA-G-0002 |
| 11 | Air piston | BSFA-E-0002 |
We reserve the right to make technical changes.
