Röhm Machine Vices UZ

Machine Vices
UZ - centrical, without power transmitter

APPLICATION For conventional machine tools. TYPE Clamping system mechanical without power transmitter, manually operated.
TECHNICAL FEATURES - Made of special cast iron for versatile use - Use on rotary plate with graduation - With normal jaws SGN and handcrank - Centric clamping through the left-hand and right-hand thread of the spindle
CUSTOMER BENEFITS » Optimal price/performance ratio » Spindle covered in the work area » Extensive assortment of jaws » Low design » The lateral jaw guides allow the vice to be easily and exactly aligned

A11

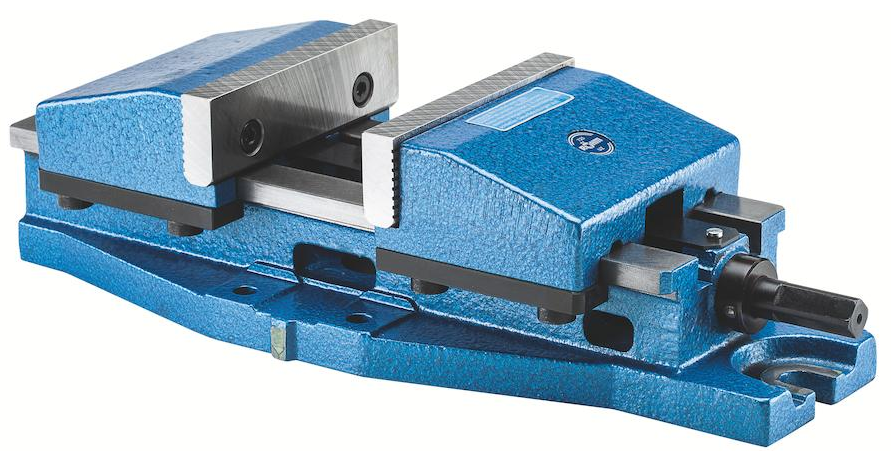

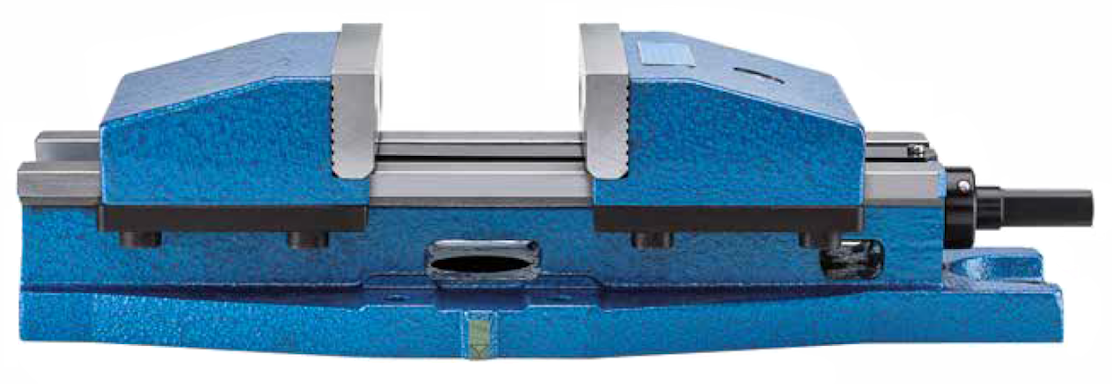

UZ, self-centering vice, with normal jaws SGN and handcrank

Item No.	014523	014740	014752	014802	014807
Size	2	3	4	5	6

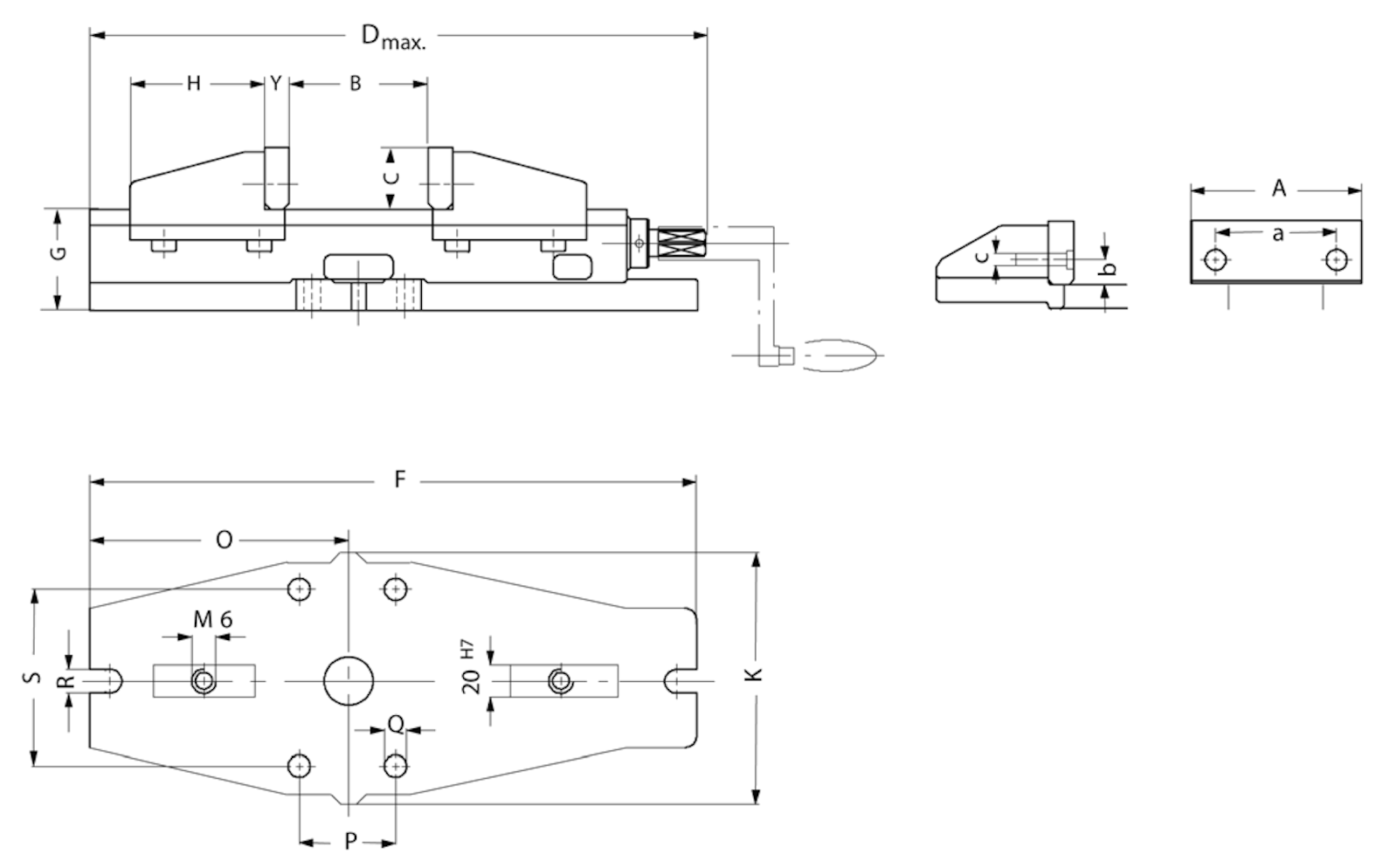

Jaw width A mm	113	135	160	200	250
B mm	110	140	180	300	400
C mm	31.6	39.6	49.6	62.6	62.6
D mm	358	408	495	655	767
F mm	344	394	480	640	751
G mm	61	65.5	74	79	85
J mm	81	87	107	123	123
K mm	132	152	180	200	220
O mm	149	174	214	294	344
P mm	50	60	60	70	80
Q mm	11	11	17	17	17
R mm	13	13	17	17	21
S mm	101	118.5	142	158	175
Y mm	12	16	16	20	20
a mm	63	80	100	125	160
b mm	13.6	15.6	19.6	24.6	24.6
c	M6	M8	M8	M10	M10
Clamping force kN	15	22	24	25	28
Weight kg	12.4	19	31	52	71

Accessories UZ

A37
Draw-down jaws SNF, with spring plate, hardened and ground

Item no.	Contents of delivery	Size	Width mm	Height mm
077103	set	1	90	24.6
077104	set	2	113	31.6
077105	set	3	135	39.6
077106	set	4	160	49.6
077107	set	5	200	62.6

Including fixing screws

A37
Normal jaw SGN, one side smooth, one side grooved, both sides ground

Item no.	Contents of delivery	Size	Width mm	Height mm
152767	piece	1	90	24.6
152753	piece	2	113	31.6
152754	piece	3	135	39.6
152755	piece	4	160	49.6
152759	piece	5	200	62.6
152760	piece	6	250	62.6
152762	piece		300	79.6

Including fixing screws

A37
Normal jaw finely checkered SGNf, reversible, to increase the specific contact pressure (higher holding forces), one side finely checkered, one side longitudinally grooved

Item no.	Contents of delivery	Size	Width mm	Height mm
156195	piece	2	113	31.6
156196	piece	3	135	39.6
156197	piece	4	160	49.6
156198	piece	5	200	62.6

Including fixing screws

A37
V-jaw SPR, with vertically and horizontally ground-in prisms, hardened, for combination with SGN

Item no.	Contents of delivery	Size	Width mm	Height mm	Chucking capacity mm Horizontal Vertical
082361	piece	1	90	24.6	3-13	5-32
082362	piece	2	113	31.6	3-13	5-32
082363	piece	3	135	39.6	4-20	6-40
082364	piece	4	160	49.6	5-29	7-48
082365	piece	5	200	62.6	6-37	8-56
082366	piece	6	250	62.6	7-45	9-65

Including fixing screws

A37
Normal jaw SGNA, with movable workpiece stop, hardened and ground

Item no.	Contents of delivery	Size	Width mm	Height mm
150739	piece	2	113	31.6
150740	piece	3	135	39.6
150741	piece	4	160	49.6

Including fixing screws

C15
Hand crank HKU

Item no.	Contents of delivery	Size	Inside octagon Key-width (KW)	L
009152	piece	2/3	14	125
009153	piece	4	17	160
009154	piece	5/6	19	200

A37

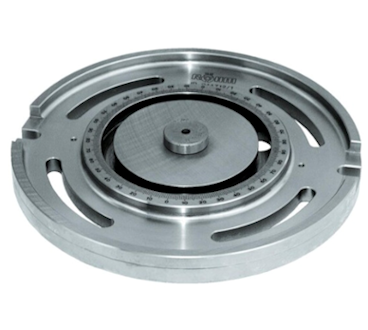

Universal rotation plate DP, with T-slot screws and nuts, ground contact edge, graduation

Item no.	Size	External Ø mm	Height	Center Ø	Weight
014709	2	245	25	28	5
014712	3	295	27	38	8
014715	4	345	30	38	11.5
014718	5	450	30	38	16.5
014721	6	450	30	38	17.3

We reserve the right to make technical changes.
