  Inserts precision ground
 for fineboring tools and cartridges

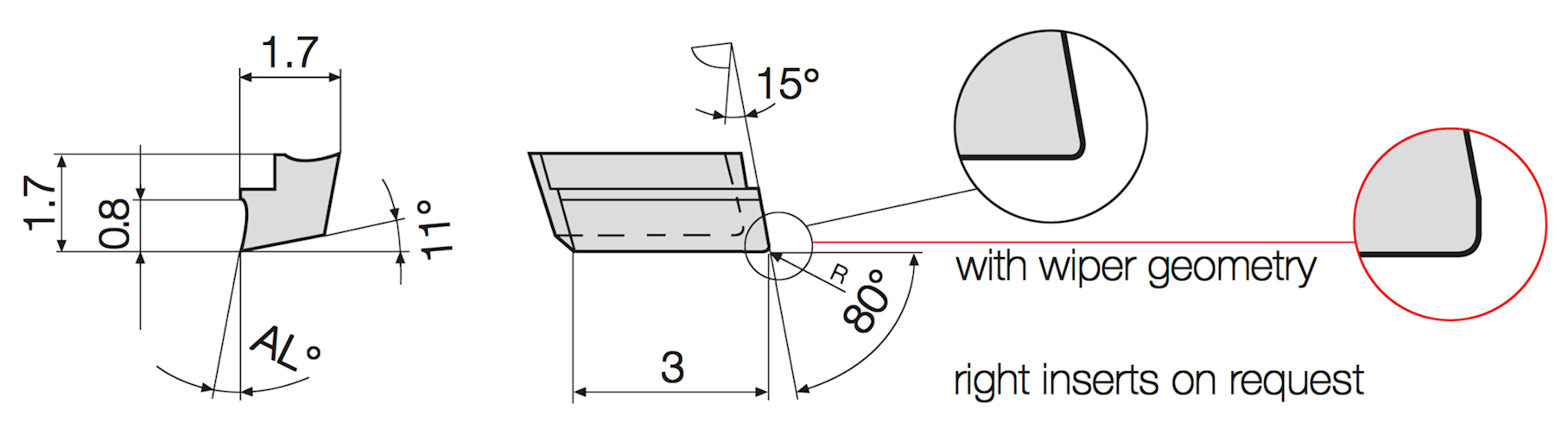

Insert W 1730-…. …. L


   Part nr.
20114		 Part nr.
20115		 Part nr.
20116		 Part nr.
20410		 Part nr.
20412		 Part nr.
20414
  uncoated     coated
Code Drawing nr. R AL° P10 P40 K10 G12 G16 G26
17,300 W1730-0008 1000L 0.05 10
17,301 W1730-0208 1000L 0.2 10
17,302 W1730-0008 1620L 0.05 16
17,303 W1730-0208 1620L 0.2 16
H H
       with wiper geometry Part nr.
20120		 Part nr.
20121		 Part nr.
20122		 Part nr.
20415		 Part nr.
20417		 Part nr.
20419
  uncoated     coated
Code Drawing nr. R AL° P10 P40 K10 G12 G16 G26
17,300 W1730-0008 1011L 0.05 10
17,301 W1730-0208 1011L 0.2 10
17,302 W1730-0008 1611L 0.05 16
17,303 W1730-0208 1611L 0.2 16
H
  Part nr.
20126		 Part nr.
20112		 Part nr.
20112		 Part nr.
20112		 Part nr.
20112		 Part nr.
20112
Code Drawing nr. R AL° PCD 10 H
17,300 W1730-0000 0000L 0.05 0 H
17,301 W1730-0200 0000L 0.2 0 H
17,302 W1730-0400 0000L 0.4 0 H
H
       with wiper geometry Part nr.
20127		 Part nr.
20112		 Part nr.
20112		 Part nr.
20112		 Part nr.
20112		 Part nr.
20112
Code Drawing nr. R AL° PCD 10 H
17,300 W1730-0000 0011L 0.05 0 H
17,301 W1730-0200 0011L 0.2 0 H
17,302 W1730-0400 0011L 0.4 0 H
   ex stock           on request
Ordering example: 1 piece W 1730-0008 1000 L G12 = Ordering number: 20410 17,300



We reserve the right to make technical changes.
