DEFA 9-24

Tool Table

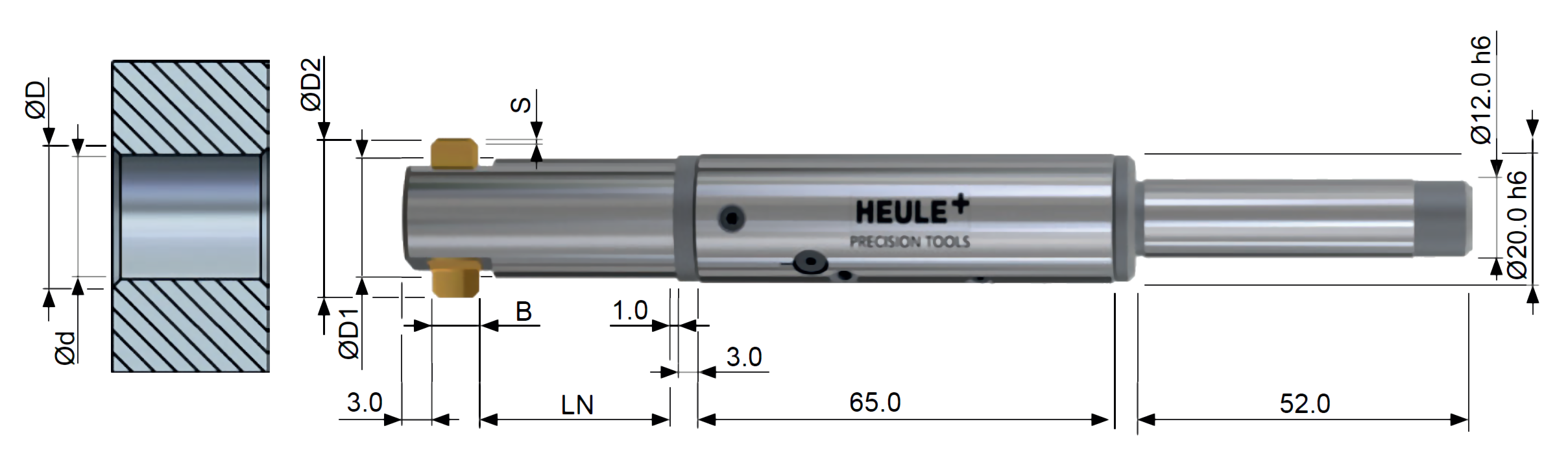

								Tool without blade
Tool designation	Bore range Ød ¹⁾	Chamfer range ØD	Blade housing ØD1	Max. ØD2	B	S	LN	Part No. without Shank	Part No. with Shank Ø10	Part No. with End plug
9.0 - 12.0/30	9.0 - 11.7	10.2 - 11.4	8.8	12.2	6.0	0.4	30.0	GH-S-D-1707	-1747	-5260
9.0 - 12.0/60	9.0 - 11.7	11.1 - 12.0²	8.8	12.8²	6.0	0.4	60.0	GH-S-D-1708	-1748	-5261
10.0 - 13.0/30	9.7 - 12.7	11.0 - 12.4	9.5	13.2	6.0	0.4	30.0	GH-S-D-1709	-1749	-5262
10.0 - 13.0/60	9.7 - 12.7	12.1 - 13.0²	9.5	13.8²	6.0	0.4	60.0	GH-S-D-1710	-1750	-5263
12.0 - 14.0/30	11.0 - 14.3	12.0 - 13.8	11.0	14.8	8.0	0.5	30.0	GH-S-D-1711	-1751	-5264
12.0 - 14.0/60	11.0 - 14.3	13.4 - 14.6²	11.0	15.6²	8.0	0.5	60.0	GH-S-D-1712	-1752	-5265
13.0 - 16.0/30	12.2 - 15.9	13.5 - 15.4	11.0	16.4	8.0	0.5	30.0	GH-S-D-1713	-1753	-5266
13.0 - 16.0/60	12.2 - 15.9	15.0 - 16.2²	11.0	17.2²	8.0	0.5	60.0	GH-S-D-1714	-1754	-5267
14.0 - 17.0/30	13.2 - 17.3	15.1 - 16.6	13.0	17.6	8.0	0.5	30.0	GH-S-D-1695	-1788	-5268
14.0 - 17.0/60	13.2 - 17.3	16.4 - 17.6²	13.0	18.6²	8.0	0.5	60.0	GH-S-D-1715	-1755	-5269
16.0 - 19.0/30	15.2 - 18.7	16.7 - 18.2	15.0	19.2	8.0	0.5	30.0	GH-S-D-1696	-1789	-5270
16.0 - 19.0/60	15.2 - 18.7	17.8 - 19.0²	15.0	20.0²	8.0	0.5	60.0	GH-S-D-1716	-1756	-5271
17.0 - 21.0/30	16.7 - 21.5	18.2- 20.4	16.5	22.4	8.0	1.0	30.0	GH-S-D-1697	-1790	-5272
17.0 - 21.0/60	16.7 - 21.5	19.6 - 21.8²	16.5	23.8²	8.0	1.0	60.0	GH-S-D-1717	-1757	-5273
19.0 - 24.0/30	18.7 - 23.9	20.6 - 22.8	18.5	24.8	8.0	1.0	30.0	GH-S-D-1698	-1791	-5274
19.0 - 24.0/60	18.7 - 23.9	22.0 - 24.2²	18.5	26.2²	8.0	1.0	60.0	GH-S-D-1718	-1758	-5275
¹⁾ Shall not be less ²⁾ Extended chamfer range: This chamfer range can be attained by using the set screw GH-H-S-0302. For tool order add the extension "-EF" to the tool part number (Order example: GH-S-D-1707-EF). Consultation with HEULE required. In case the tool body serves for clamping, an end plug is required.

Spare Parts
Pos.	Description	Part No.
1	Blade	see below
2	Blade housing	see below
3	Blade control	see below
4	Torsion spring 9-28	GH-S-T-0006
5	Positioning screw 9-28	GH-S-X-0006
6	Gear wheel 9-28	GH-S-C-0008
7	Tool body 9-19 Tool body 17-24	GH-S-G-0011 GH-S-G-0013
8	Clamping screw M4x0.5x5.0	GH-H-S-0201
9	Eccentric cam 9-25	GH-S-E-0003
10	Set screw 9-28 Set screw extended chamfer Ø¹	GH-H-S-0325 GH-H-S-0302
11	Tension screw 9-25	GH-H-S-0102
12	Shank cylindric Ø12.0 h6	GH-S-S-0013
¹⁾ Extended chamfer range: This chamfer range can be attained by using the set screw GH-H-S-0302. For tool order add the extension "-EF" to the tool part number (Order example: GH-S-D-1707-EF).

Blades DF Geometry 90°
	Part No. forward and backward cutting	Part No. backward cutting only
DEFA	Coating T²	Coating T²
9.0 - 12.0	GH-S-M-3912^*	GH-S-M-4912
10.0 - 13.0	GH-S-M-3913^*	GH-S-M-4913
12.0 - 14.0	GH-S-M-3914^*	GH-S-M-4914
13.0 - 16.0	GH-S-M-3915^*	GH-S-M-4915
14.0 - 17.0	GH-S-M-3916^*	GH-S-M-4916
16.0 - 19.0	GH-S-M-3917^*	GH-S-M-4917
17.0 - 21.0	GH-S-M-3918^*	GH-S-M-4918
19.0 - 24.0	GH-S-M-3919^*	GH-S-M-4919
*^) Standard items** / Please enquire about stock or delivery times for all non-standard blades. ²⁾ Standard coating. Blades with a different chamfer angle or coatings for materials with increased requirements (i.e. titanium, Inconel) are available on request.

Spare parts

Blade Housing and Blade Control

	Blade Housing with ØD1				Blade Control
Tool Ref.	ØD1	LN	LM	Part No.	ØDW	LW	Part No.
9.0 - 12.0/30	8.8	30.0	56.0	GH-S-N-0074	4.5	65.8	GH-S-W-0508
9.0 - 12.0/60	8.8	60.0	86.0	GH-S-N-0075	4.5	95.8	GH-S-W-0509
10.0 - 13.0/30	9.5	30.0	56.0	GH-S-N-0120	4.5	65.8	GH-S-W-0508
10.0 - 13.0/60	9.5	60.0	86.0	GH-S-N-0121	4.5	95.8	GH-S-W-0509
12.0 - 14.0/30	11.0	30.0	58.0	GH-S-N-0022	5.5	65.8	GH-S-W-0511
12.0 - 14.0/60	11.0	60.0	88.0	GH-S-N-0023	5.5	95.8	GH-S-W-0512
13.0 - 16.0/30	11.0	30.0	58.0	GH-S-N-0122	5.5	65.8	GH-S-W-0511
13.0 - 16.0/60	11.0	60.0	88.0	GH-S-N-0123	5.5	95.8	GH-S-W-0512
14.0 - 17.0/30	13.0	30.0	58.0	GH-S-N-0124	5.5	65.8	GH-S-W-0511
14.0 - 17.0/60	13.0	60.0	88.0	GH-S-N-0125	5.5	95.8	GH-S-W-0512
16.0 - 19.0/30	15.0	30.0	58.0	GH-S-N-0126	5.5	65.8	GH-S-W-0511
16.0 - 19.0/60	15.0	60.0	88.0	GH-S-N-0127	5.5	95.8	GH-S-W-0512
17.0 - 21.0/30	16.5	30.0	58.0	GH-S-N-0128	8.0	65.8	GH-S-W-0520
17.0 - 21.0/60	16.5	60.0	88.0	GH-S-N-0129	8.0	95.8	GH-S-W-0521
19.0 - 24.0/30	18.5	30.0	58.0	GH-S-N-0130	8.0	65.8	GH-S-W-0520
19.0 - 24.0/60	18.5	60.0	88.0	GH-S-N-0131	8.0	95.8	GH-S-W-0521

Dimension Table

Blade Dimensions

90°, forward and backward cutting
Designation	S	A	Ø Chamfer min.-max.	C	G	B	H
9.0 - 12.0	0.4	8.75	10.2 - 12.0¹	2.3	5.4	6.0	1.5
10.0 - 13.0	0.4	9.25	11.0 - 13.0¹	2.5	5.4	6.0	1.5
12.0 - 14.0	0.5	10.70	12.0 - 14.6¹	2.6	7.2	8.0	2.0
13.0 - 16.0	0.5	11.50	13.5 - 16.2¹	3.0	7.2	8.0	2.0
14.0 - 17.0	0.5	12.20	15.1 - 17.6¹	3.4	7.2	8.0	2.0
16.0 - 19.0	0.5	12.90	16.7 - 19.0¹	3.4	7.2	8.0	2.0
17.0 - 21.0	1.0	15.90	18.2 - 21.8¹	4.3	7.2	8.0	4.0
19.0 - 24.0	1.0	17.10	20.6 - 24.2¹	4.5	7.2	8.0	4.0

90°, backward cutting only
Designation	S	A	Ø Chamfer min.-max.	C	G	B	H
9.0 - 12.0	0.4	8.75	10.2 - 12.0¹	2.3	5.4	6.0	1.5
10.0 - 13.0	0.4	9.25	11.0 - 13.0¹	2.5	5.4	6.0	1.5
12.0 - 14.0	0.5	10.70	12.0 - 14.6¹	2.6	7.2	8.0	2.0
13.0 - 16.0	0.5	11.50	13.5 - 16.2¹	3.0	7.2	8.0	2.0
14.0 - 17.0	0.5	12.20	15.1 - 17.6¹	3.4	7.2	8.0	2.0
16.0 - 19.0	0.5	12.90	16.7 - 19.0¹	3.4	7.2	8.0	2.0
17.0 - 21.0	1.0	15.90	18.2 - 21.8¹	4.3	7.2	8.0	4.0
19.0 - 24.0	1.0	17.10	20.6 - 24.2¹	4.5	7.2	8.0	4.0

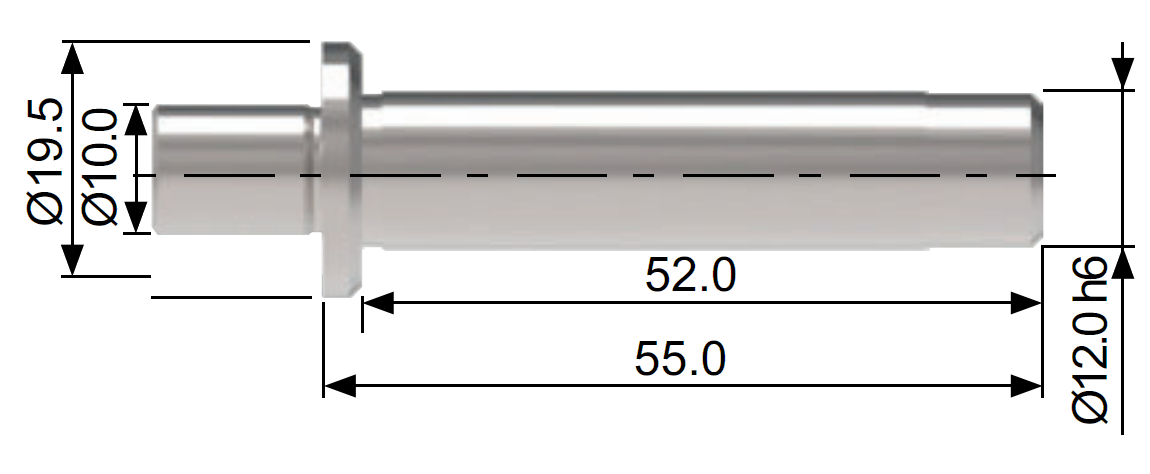

Shank Type	Part No.
Cylindrical Ø12	GH-S-S-0013

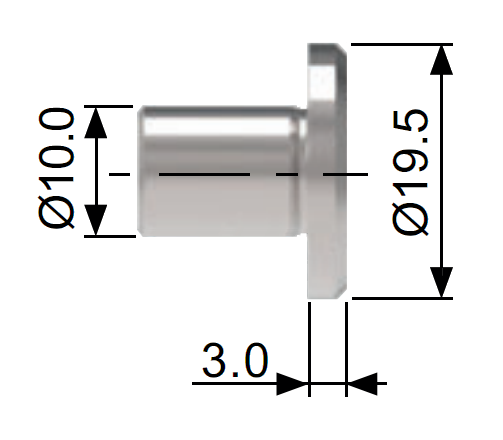

Shank Type	Part No.
End plug Ø10	GH-S-S-0092

We reserve the right to make technical changes.
