W1035   W1733   W2853   W4090  Tapered adjustment Radial adjustment Cartridges
 W1730   W2850   W3570   W3573
  Inserts precision ground
 for fineboring tools and cartridges

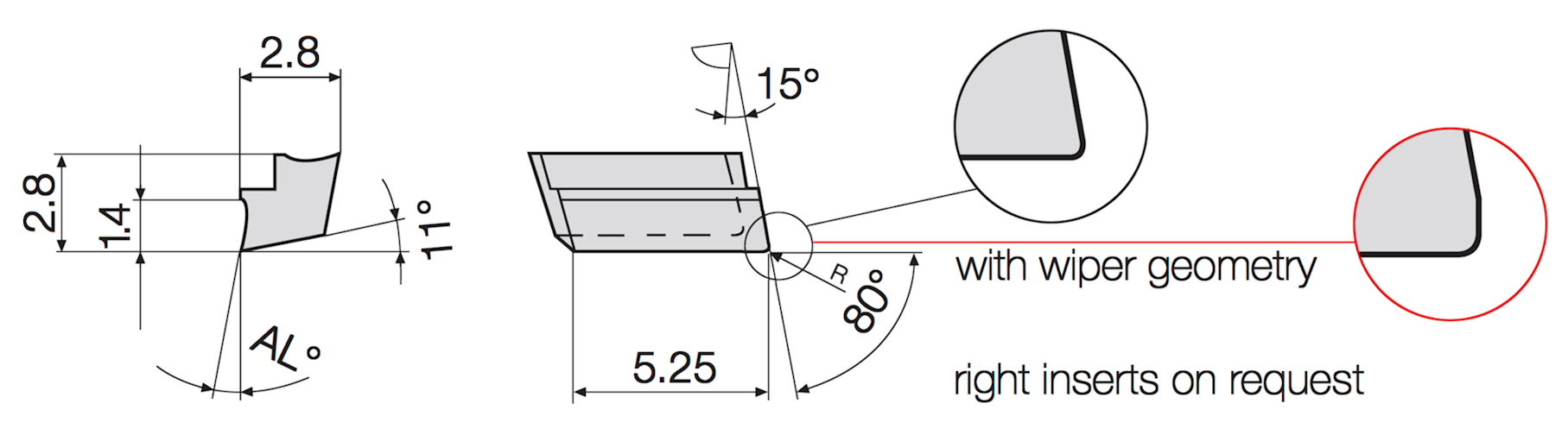

Insert W 2853-…. …. L


   Part nr.
20160		 Part nr.
20161		 Part nr.
20162		 Part nr.
20440		 Part nr.
20442		 Part nr.
20444
  uncoated     coated
Code Drawing nr. R AL° P10 P40 K10 G12 G16 G26
28,530 W2853-0214 1000L 0.2 10
28,531 W2853-0414 1000L 0.4 10
28,532 W2853-0214 1620L 0.2 16
28,533 W2853-0414 1620L 0.4 16
H H
       with wiper geometry Part nr.
20166		 Part nr.
20167		 Part nr.
20168		 Part nr.
20445		 Part nr.
20447		 Part nr.
20449
  uncoated     coated
Code Drawing nr. R AL° P10 P40 K10 G12 G16 G26
28,530 W2853-0214 1011L 0.2 10
28,531 W2853-0414 1011L 0.4 10
28,532 W2853-0214 1611L 0.2 16
28,533 W2853-0414 1611L 0.4 16
H
  Part nr.
20172		 Part nr.
20173		 Part nr.
20112		 Part nr.
20112		 Part nr.
20112		 Part nr.
20112
Code Drawing nr. R AL° PKD 10 CBN 40 H
28,530 W2850-0000 0000L 0.05 0
28,531 W2853-0200 0000L 0.2 0 H
28,532 W2853-0400 0000L 0.4 0 H
H
       with wiper geometry Part nr.
20174		 Part nr.
20112		 Part nr.
20112		 Part nr.
20112		 Part nr.
20112		 Part nr.
20112
Code Drawing nr. R AL° PKD 10 H
28,530 W2853-0000 0011L 0.05 0 H
28,531 W2853-0200 0011L 0.2 0 H
28,532 W2853-0400 0011L 0.4 0 H
   ex stock           on request
Ordering example: 1 piece W 2853-0214 1000 L G12 = Ordering number: 20440 28,530



We reserve the right to make technical changes.
