Ferg Threading Taps M 134,144,134A,144A

Threading Taps
ISO Metric coarse thread DIN 13

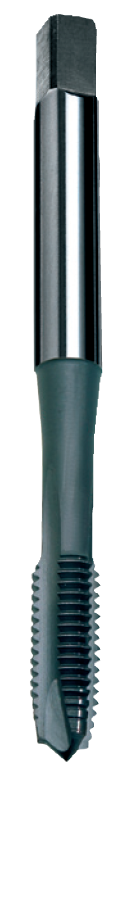

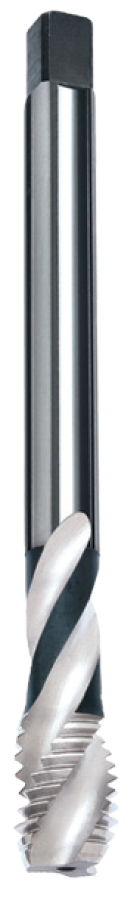

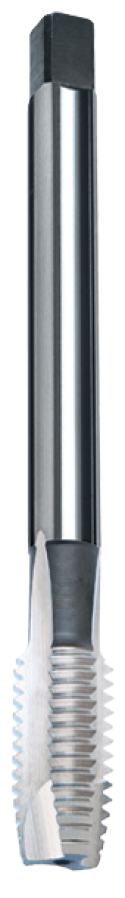

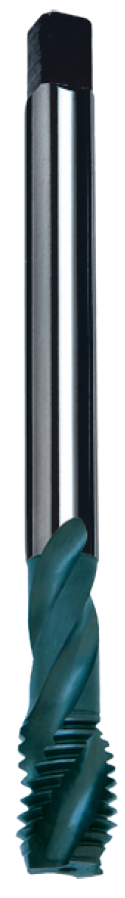

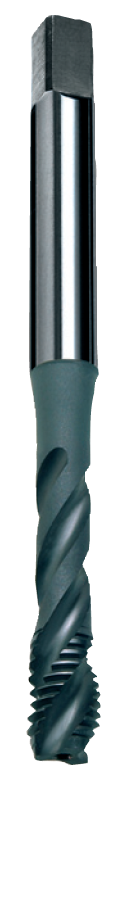

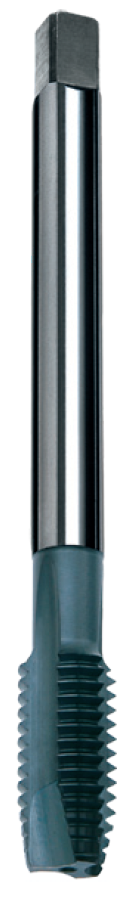

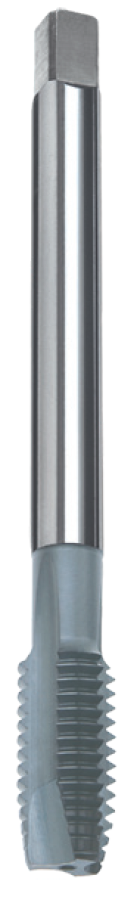

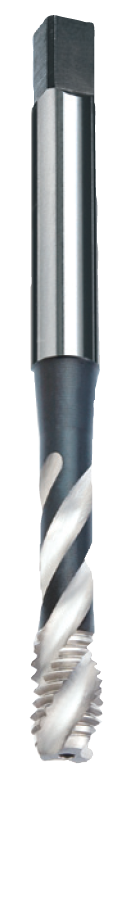

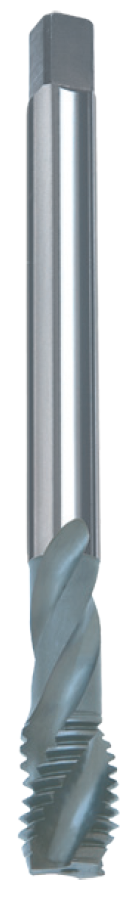

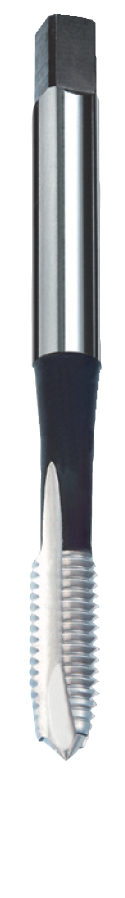

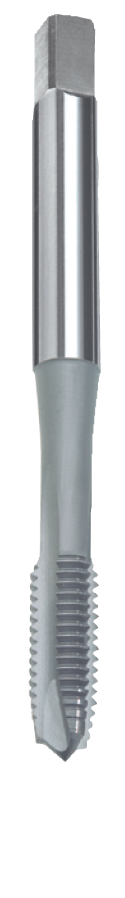

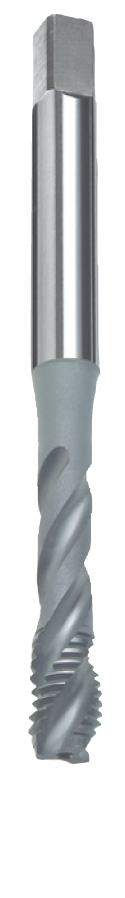

Wrought aluminium alloys 6%>Si<10% (long-chipping)									High speed steel class E with 3% vanadium 1.3344 (EMo5V3) (M-3/2) High speed steel 1.3343 (DMo5) (M-2)		DIN 371 134A 2000013400	DIN 376 134 2500013400	DIN 371 AC134A 2000013417	DIN 376 AC134 2500013417	DIN 371 DL134A 2000013419	DIN 376 DL134 2500013419	DIN 371 144A 2000014400	DIN 376 144 2500014400	DIN 371 AC144A 2000014417	DIN 376 AC144 2500014417	DIN 371 DL144A 2000014419	DIN 376 DL144 2500014419
									HOLE		≤ 2 x d₁ Through hole		≤ 2 x d₁ Through hole		≤ 2 x d₁ Through hole		≤ 2 x d₁ Blind and through hole		≤ 2 x d₁ Blind and through hole		≤ 2 x d₁ Blind and through hole
									Chamfer lead acc. to DIN 2197		B = 4xP		B = 4xP				C = 2.5xP		C = 2.5xP		C = 2.5xP
									LIMIT		ISO 2 (6H)		ISO 2 (6H)		ISO 2 (6H)		ISO 2 (6H)		ISO 2 (6H)		ISO 2 (6H)
									COATING		Bright (without Coating or without Surface treatment)		AlCrN coating (Aluminium Chrome Nitride)		Diamond-like carbon		Bright (without Coating or without Surface treatment)		AlCrN coating (Aluminium Chrome Nitride)		Diamond-like carbon
									DIN		371	376	371	376	371	376	371	376	371	376	371	376
									ORDER No. EDP = Nr.+ ★		DIN 371 2000013400* 134A		DIN 371 2000013417* AC134A		DIN 371 2000013419* DL134A		DIN 371 2000014400* 144A		DIN 371 2000014417* AC144A		DIN 371 2000014419* DL144A
l₁ mm	l₂ mm	l₃ mm	DIN 371		DIN 376		mm	d₁ mm	P mm	★	DIN 376 2500013400* 134		DIN 376 2500013417* AC134		DIN 376 2500013419* DL134		DIN 376 2500014400* 144		DIN 376 2500014417* AC144		DIN 376 2500014419* DL144
			d₂ mm	a mm	d₂ mm	a mm
											Z		Z		Z		Z		Z		Z
45	9	-	2.8	2.1			1.6	M 2	(0.4)	020	3		3		3		3		3		3
45	9	-	2.8	2.1			1.75	M 2.2	(0.45)	022	3		3		3		3		3		3
45	9	-	2.8	2.1			1.9	M 2.3	(0.4)	023	3		3		3		3		3		3
50	9	-	2.8	2.1			2.05	M 2.5	(0.45)	025	3		3		3		3		3		3
50	9	-	2.8	2.1			2.1	M 2.6	(0.45)	026	3		3		3		3		3		3
56	11	16	3.5	2.7	2.2	-	2.5	M 3	(0.5)	030	3 ■		3 ■		3 ■		3 ■		3 ■		3 ■
56	12	17	4	3	2.5	2.1	2.9	M 3.5	(0.6)	035	3		3		3		3		3		3
63	13	19	4.5	3.4	2.8	2.1	3.3	M 4	(0.7)	040	3 ■		3 ■		3 ■		3 ■		3 ■		3 ■
70	15	29	6	4.9	3.5	2.7	4.2	M 5	(0.8)	050	3 ■		3 ■		3 ■		3 ■		3 ■		3 ■
80	17	30	6	4.9	4.5	3.4	5	M 6	(1)	060	3 ■		3 ■		3 ■		3 ■		3 ■		3 ■
80	17	31	7	5.5	5.5	4.3	6	M 7	(1)	070	3		3		3		3		3		3
90	20	35	8	6.2	6	4.9	6.8	M 8	(1.25)	080	3 ■		3 ■		3 ■		3 ■		3 ■		3 ■
100	22	38	10	8	7	5.5	8.5	M 10	(1.5)	100	3 ■		3 ■		3 ■		3 ■		3 ■		3 ■
110	24				9	7	10.2	M 12	(1.75)	120	3 ■		3 ■		3 ■		3 ■		3 ■		3 ■
110	26				11	9	12	M 14	(2)	140	3		3		3		3		3		3
110	27				12	9	14	M 16	(2)	160	3 ■		3 ■		3 ■		3 ■		3 ■		3 ■
125	30				14	11	15.5	M 18	(2.5)	180	4		4		4		4		4		4
140	32				16	12	17.5	M 20	(2.5)	200	4		4		4		4		4		4
140	32				18	14.5	19.5	M 22	(2.5)	220	4		4		4		4		4		4
160	34				18	14.5	21	M 24	(3)	240	4		4		4		4		4		4
160	36				20	16	24	M 27	(3)	270	4		4		4		4		4		4
180	40				22	18	26.5	M 30	(3.5)	300	4		4		4		4		4		4
180	40				25	20	29.5	M 33	(3.5)	330	4		4		4		4		4		4
200	50				28	22	32	M 36	(4)	360	4		4		4		4		4		4
200	50				32	24	35	M 39	(4)	390	4		4		4		4		4		4
200	56				32	24	37.5	M 42	(4.5)	420	4		4		4		4		4		4
											■ = Stock				EDP: DL134A M 6 = 2000013419060

We reserve the right to make technical changes.
