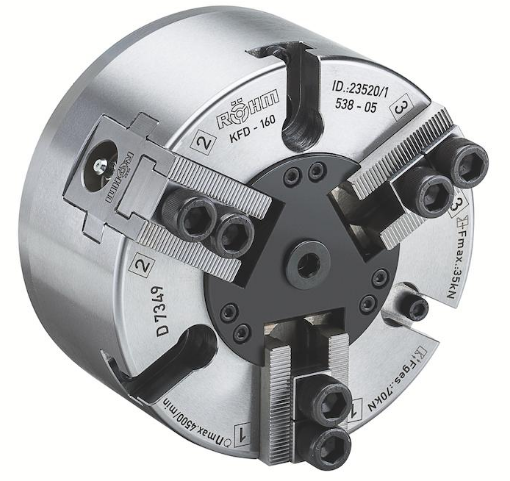

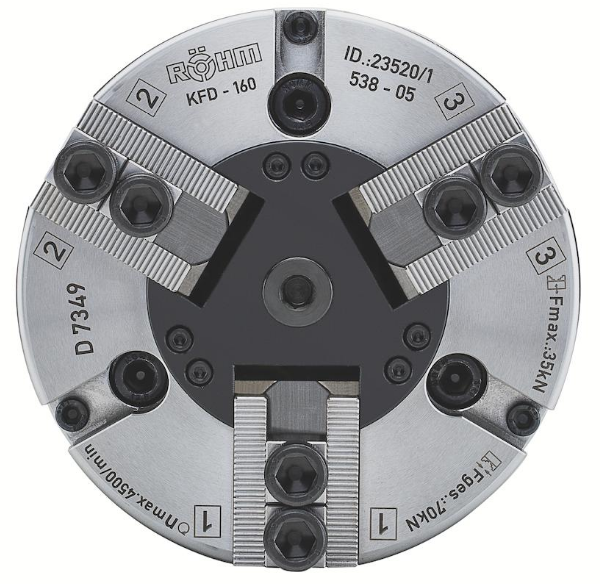

Power Chucks without Through-hole KFD   |
APPLICATION Standard power chuck without through-hole for various clamping tasks. TYPE Power chuck available with cylindrical centre mount. 3-jaw version with serration 90° or tongue and groove. 2-jaw and 3-jaw version with serration 90° and weight reduction. TECHNICAL FEATURES - Power transmission by means of powerfully dimensioned wedge hook system - Direct lubrication of the base jaws - Starting from size 200 with roller for limiting the jaw movement - The forward movement of the piston is stopped in the cylinder, movement toward the rear is stopped at the spindle or spindle flange CUSTOMER BENEFITS » Long service life - all moving parts are hardened and ground |
 |
| » High clamping precision thanks to proven wedge hook system |
|
| Included in the scope of delivery: tongue and groove Chuck, chuck and jaw mounting screws (without top jaws) Included in the scope of delivery: serration Chuck, chuck and jaw mounting screws, slot nuts (without top jaws) |
|
