Röhm Machine Vices RS

Machine Vices
RS - without power transmitter

APPLICATION For conventional machine tools. TYPE Clamping system mechanical without power transmitter, manually operated.
TECHNICAL FEATURES - Made of special cast iron for versatile use - Long guidance of moving jaw - Force transfer by means of threaded spindle - With normal jaws SGN and handcrank - Use on rotary plate with graduation
CUSTOMER BENEFITS » Optimal price/performance ratio » Entire clamping range can be bridged over by turning the handcrank » Spindle is protected from dirt and chips » Extensive assortment of jaws

A11

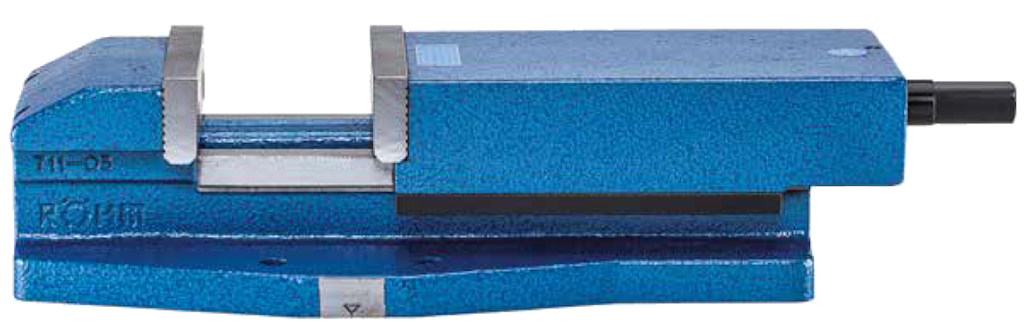

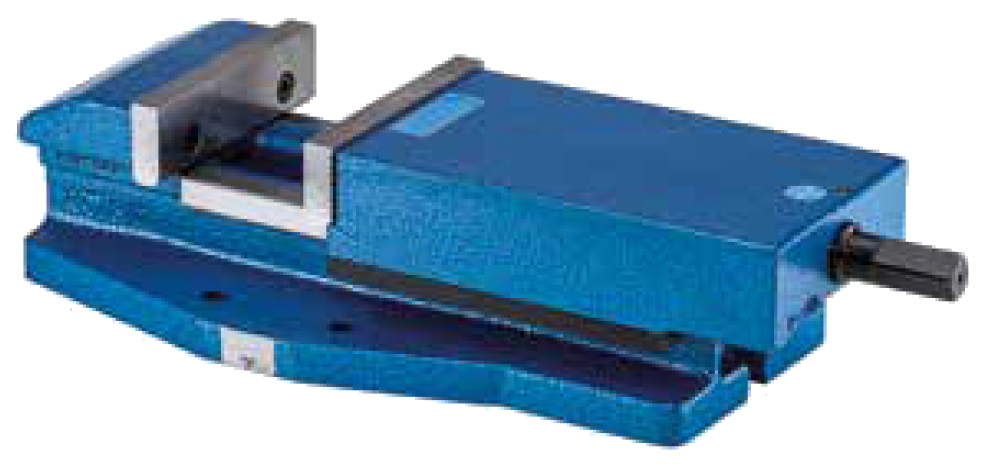

RS, with SGN normal jaws and hand crank

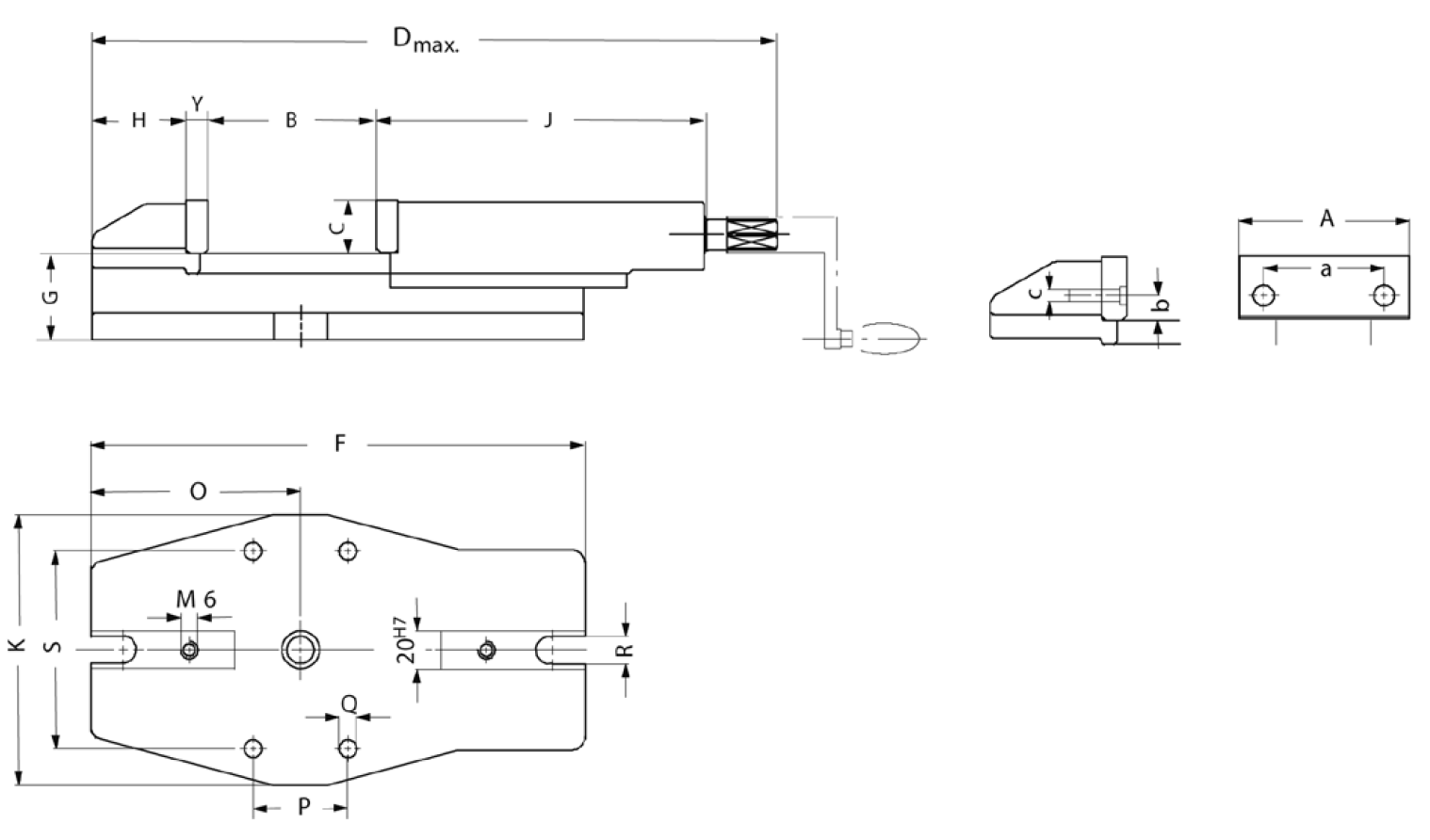

Item No.	128031	128032	128033	128034	111648
Size	1	2	3	4	5
Jaw width A mm	92	113	135	160	200
B mm	85	105	125	145	185
C mm	31.6	31.6	39.6	49.6	62.6
D mm	362	423	510	575	675
F mm	260	300	365	410	460
G mm	48	58	64	70	82
H mm	50	55	70	80	90
J mm	174	200	242	273	322
K mm	160	160	200	240	280
O mm	115	125	155	175	200
P mm	60	60	70	80	118
Q mm	13	13	13	17	21
R mm	14	14	14	18	22
S mm	120	120	146	184.5	210
Y mm	12	12	16	16	20
a mm	63	63	80	100	125
b mm	13.6	13.6	15.6	19.6	24.6
c	M6	M6	M8	M8	M10
Clamping force kN	18	25	35	45	55
Weight kg	12	13.5	25	40	65

Accessories RS

A37
Draw-down jaws SNF, with spring plate, hardened and ground

Item no.	Contents of delivery	Size	Width mm	Height mm
077104	set	2	113	31.6
077105	set	3	135	39.6
077106	set	4	160	49.6
077107	set	5	200	62.6

Including fixing screws

A37
Normal jaw SGN, one side smooth, one side grooved, both sides ground

Item no.	Contents of delivery	Size	Width mm	Height mm
152752	piece	1	92	31.6
152753	piece	2	113	31.6
152754	piece	3	135	39.6
152755	piece	4	160	49.6
152759	piece	5	200	62.6

Including fixing screws

A37
Normal jaw finely checkered SGNf, reversible, to increase the specific contact pressure (higher holding forces), one side finely checkered, one side longitudinally grooved

Item no.	Contents of delivery	Size	Width mm	Height mm
163218	piece	1	92	31.6
156195	piece	2	113	31.6
156196	piece	3	135	39.6
156197	piece	4	160	49.6
156198	piece	5	200	62.6

Including fixing screws

A37
V-jaw SPR, with vertically and horizontally ground-in prisms, hardened, for combination with SGN

Item no.	Contents of delivery	Size	Width mm	Height mm	Chucking capacity mm Horizontal Vertical
128770	piece	1	92	31.6	3-13	5-32
082362	piece	2	113	31.6	3-13	5-32
082363	piece	3	135	39.6	4-20	6-40
082364	piece	4	160	49.6	5-29	7-48
082365	piece	5	200	62.6	6-37	8-56

Including fixing screws

A37
Normal jaw SGNA, with movable workpiece stop, hardened and ground

Item no.	Contents of delivery	Size	Width mm	Height mm
150739	piece	2	113	31.6
150740	piece	3	135	39.6
150741	piece	4	160	49.6

Including fixing screws

C15
Hand crank HKU

Item no.	Contents of delivery	Size	Inside octagon Key-width (KW)	L
009150	piece	1	12	80
009152	piece	2	14	125
009153	piece	3	17	160
009154	piece	4/5	19	200

A37
Standard rotation plate DP, with fixing screws and T-slot nuts, ground contact edge, graduation

Item no.	Size	External Ø mm	Height	Center Ø	Weight
129814	1/2	242	30	28	7.5
082442	3	280	30	28	11
082443	4	340	34	28	18

A37
Universal rotation plate DP, with fixing screws and T-slot nuts, ground contact edge, graduation

Item no.	Size	External Ø mm	Height	Center Ø	Weight
090854	5	420	40	28	23

We reserve the right to make technical changes.
