Grinding and Inspection Vices
PL-S

APPLICATION
Mainly in tool construction on grinding, milling and engraving machines, on jig boring machines, for measuring and control work and for production operations requiring high clamping precision.
TECHNICAL FEATURES
- With draw-down effect
- Made of alloyed tool steel, hardened and very finely ground
- Horizontally and vertically ground prism
- No spindle which could cause contamination during electric discharge machining, for example

CUSTOMER BENEFITS
» Easy clamping and unclamping with allen key
» Clamping jaw adjustable in stages, snaps in automatically




A29

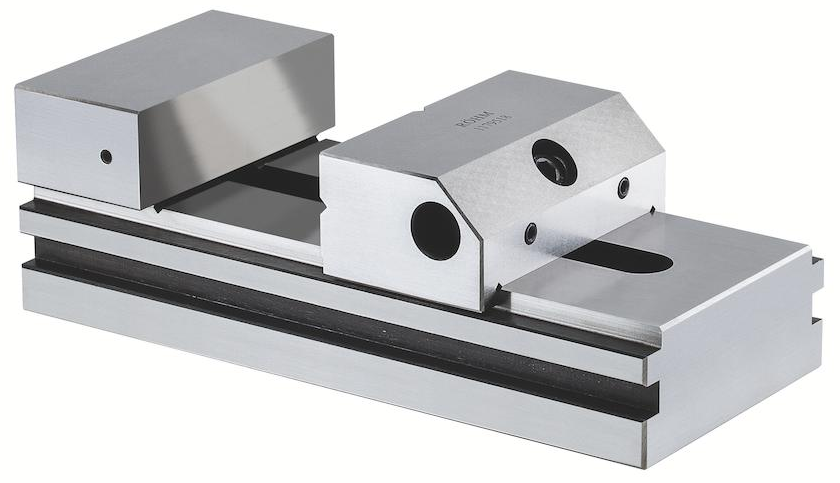

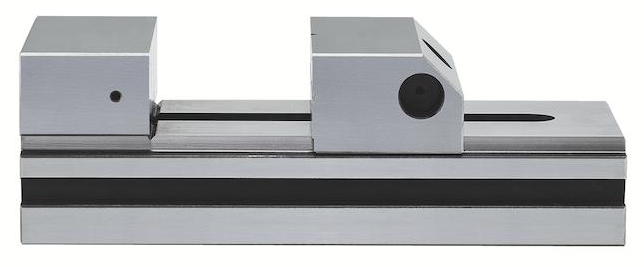

PL-S, with quick adjustment
 Item No.  1179516  1179517  1179518
 Size  1  2  3
 Squareness1) / 100 mm  0.005  0.005  0.005
 Parallelism2) / 100 mm  0.002  0.002  0.002
 Jaw width mm  70  90  120

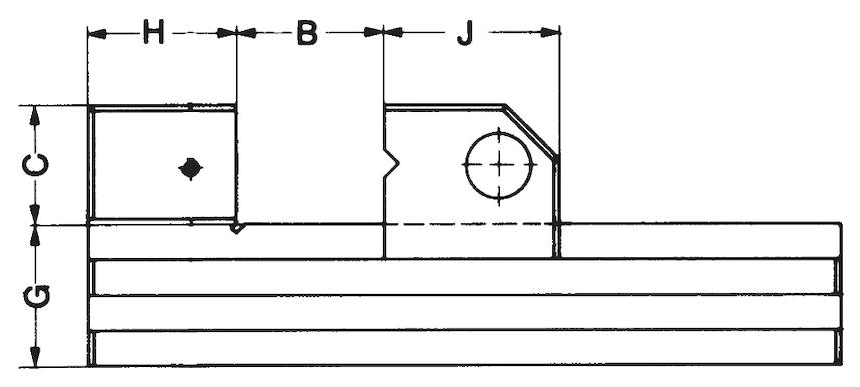

 B mm  80  120  150
 Total height mm  62  80  90
 C mm  30  40  40
 Length body mm  160  210  280
 G mm  32  40  50
 H mm  33  40  60
 J mm  45  50  70
 Workpiece stop  M 6  M 5  M 5
 Weight kg  3  5.8  13.5
1) Base to stationary jaw clamping surface
2) Base to upper guide edge
