Grinding and Inspection Vices
PL-S Micro

APPLICATION
Mainly in tool construction on grinding, milling and engraving machines, on jig boring machines, for measuring and control work and for production operations requiring high clamping precision.
TECHNICAL FEATURES
- With draw-down effect
- Made of alloyed tool steel, hardened and very finely ground
- Horizontally and vertically ground prism
- No spindle which could cause contamination during electric discharge machining, for example

CUSTOMER BENEFITS
» Easy clamping and unclamping with allen key
» Clamping jaw adjustable in stages, snaps in automatically




A29

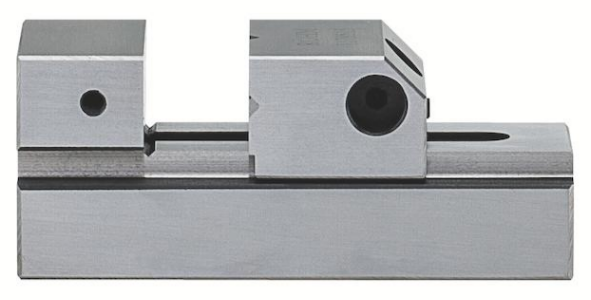

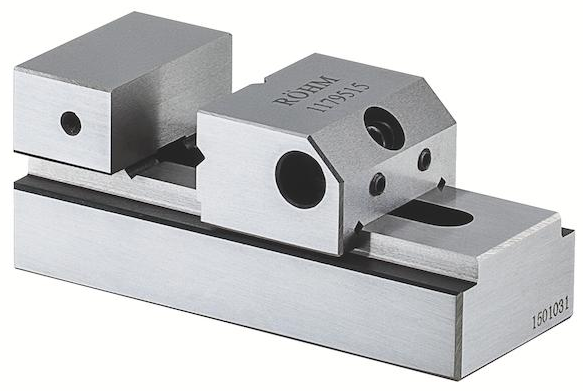

PL-S micro, with quick adjustment
 Item No.  1179514  1179515
 Size  1  2
 Squareness1) / 100 mm  0.005  0.005
 Parallelism2) / 100 mm  0.002  0.002
 Jaw width mm  34  45

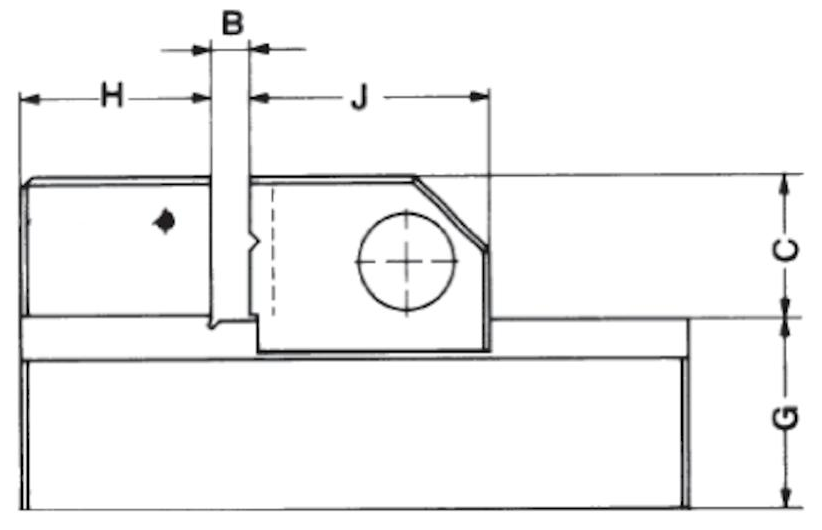

 B mm  25  50
 Total height mm  35  45
 C mm  15  20
 Length body mm  75  110
 G mm  20  25
 H mm  20  25
 J mm  25  35
 Workpiece stop  M 5 x 17  M 5 x 17
 Weight kg  0.35  1
1) Base to stationary jaw clamping surface
2) Base to upper guide edge






We reserve the right to make technical changes.
