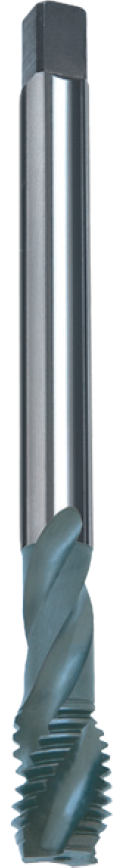

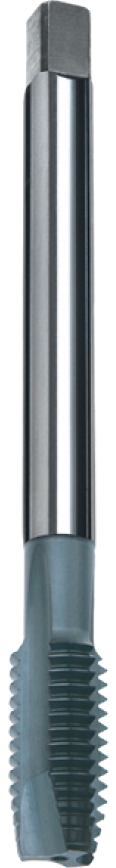

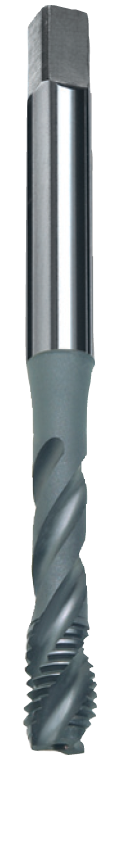

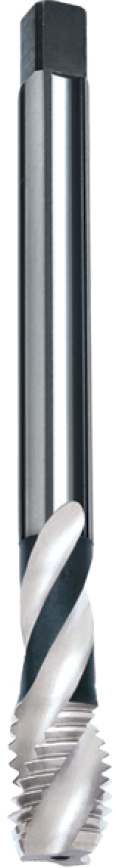

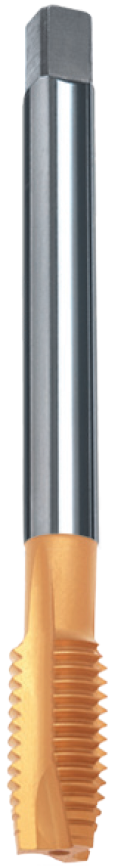

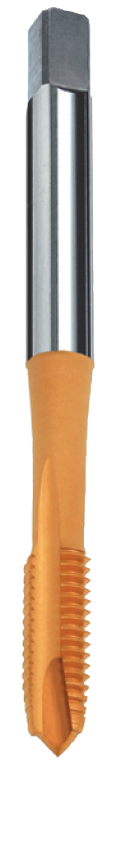

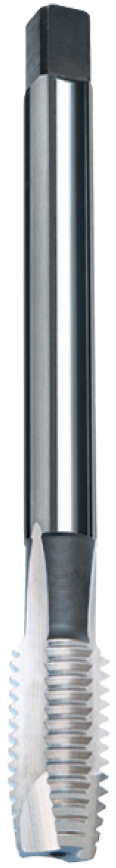

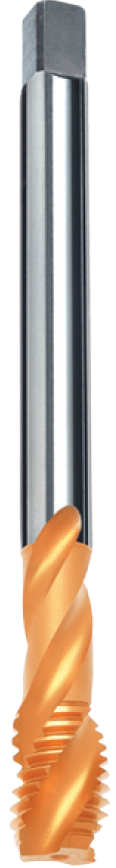

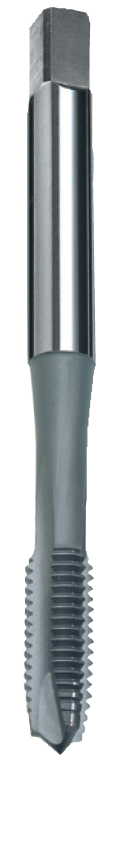

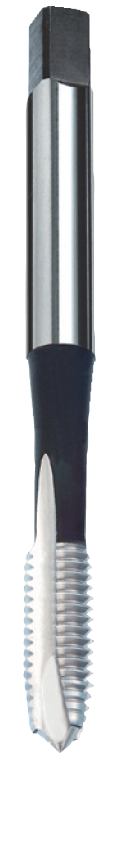

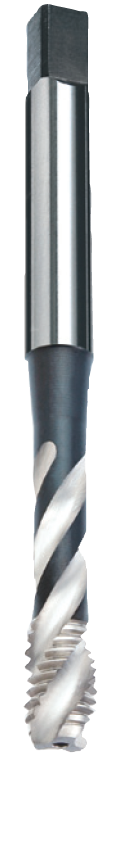

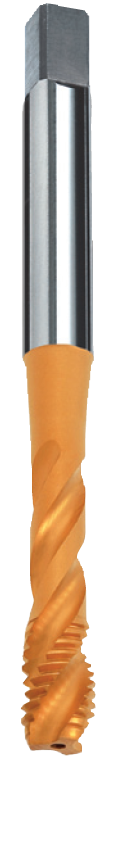

Ferg Threading Taps MF 184, 182, T184, T182, A184, A182

Threading Taps
ISO Metric fine thread DIN 13

Heat treated and heat-resistant steels up to 1.000 N/mm² or 30 HRC										High speed steel class E with 3% vanadium 1.3344 (EMo5V3) (M-3/2) High speed steel 1.3343 (DMo5) (M-2)		DIN 371 184A 2002018400	DIN 374 184 2502018400	DIN 371 T184A 2002018410	DIN 374 T184 2502018410	DIN 371 A184A 2002018412	DIN 374 A184 2502018412	DIN 371 182A 2002018200	DIN 374 182 2502018200	DIN 371 T182A 2002018210	DIN 374 T182 2502018210	DIN 371 A182A 2002018212	DIN 374 A182 2502018212
										HOLE		≤ 3 x d₁ Through hole		≤ 3 x d₁ Through hole		≤ 3 x d₁ Through hole		≤ 3 x d₁ Blind hole		≤ 3 x d₁ Blind hole		≤ 3 x d₁ Blind hole
										Chamfer lead acc. to DIN 2197		B = 4xP		B = 4xP		B = 4xP		C = 2.5xP		C = 2.5xP		C = 2.5xP
										LIMIT		ISO 2 (6H)		ISO 2 (6H)		ISO 2 (6H)		ISO 2 (6H)		ISO 2 (6H)		ISO 2 (6H)
										COATING		Bright (without Coating or without Surface treatment)		TiN coating (Titanium nitride)		TiAlN coating (Titanium Aluminium Nitride)		Bright (without Coating or without Surface treatment)		TiN coating (Titanium nitride)		TiAlN coating (Titanium Aluminium Nitride)
										DIN		371	374	371	374	371	374	371	374	371	374	371	374
										ORDER No. EDP = Nr.+ ★		DIN 371 2002018400* 184A		DIN 371 2002018410* T184A		DIN 371 2002018412* A184A		DIN 371 2002018200* 182A		DIN 371 2002018210* T182A		DIN 371 2002018212* A182A
l₁ mm	l₂ mm	mm	l₃ mm	DIN 371		DIN 374		mm	d₁ x P mm		★	DIN 374 2502018400* 184		DIN 374 2502018410* T184		DIN 374 2502018412* A184		DIN 374 2502018200* 182		DIN 374 2502018210* T182		DIN 374 2502018212* A182
				d₂ mm	a mm	d₂ mm	a mm
												Z		Z		Z		Z		Z		Z
56	11	5	18	3.5	2.7	2.2	-	2.65	M 3	x 0.35	031	3		3		3		3		3		3
63	13	7	21	4.5	3.4	2.8	2.1	3.5	M 4	x 0.5	042	3		3		3		3		3		3
70	11	8	25	6	4.9	3.5	2.7	4.5	M 5	x 0.5	052	3		3		3		3		3		3
80	13	10	30	6	4.9	4.5	3.4	5.5	M 6	x 0.5	062	3		3		3		3		3		3
80	13	10	30	6	4.9	4.5	3.4	6.2	M 6	x 0.75	063	3 ■		3		3		3 ■		3		3
80	13	13	31	7	5.5	5.5	4.3	7.2	M 7	x 0.75	073	3		3		3		3		3		3
80	13	12	30	8	6.2	6	4.9	7.5	M 8	x 0.5	082	3		3		3		3		3		3
80	13	12	30	8	6.2	6	4.9	7.2	M 8	x 0.75	083	3		3		3		3		3		3
90	20	12	35	8	6.2	6	4.9	7	M 8	x 1	084	3 ■ ■		3 ■ ■		3 ■ ■		3 ■ ■		3 ■ ■		3 ■ ■
90	20	12	35	9	7	7	5.5	8	M 9	x 1	094	3		3		3		3		3		3
90	16	14	35	10	8	7	5.5	9.2	M 10	x 0.75	103	3		3		3		3		3		3
90	16	14	35	10	8	7	5.5	9	M 10	x 1	104	3 ■ ■		3 ■ ■		3 ■ ■		3 ■ ■		3 ■ ■		3 ■ ■
100	22	15	38	10	8	7	5.5	8.8	M 10	x 1.25	105	3 ■		3 ■		3 ■		3 ■		3 ■		3 ■
100	22	16				9	7	11	M 12	x 1	124	3 ■		3		3		3 ■		3		3
100	22	16				9	7	10.5	M 12	x 1.5	126	3 ■		3 ■		3 ■		3 ■		3 ■		3 ■
100	22	20				11	9	13	M 14	x 1	144	3 ■		3		3		3 ■		3		3
100	22	20				11	9	12.5	M 14	x 1.5	146	3 ■		3 ■		3 ■		3 ■		3 ■		3 ■
100	22	20				12	9	15	M 16	x 1	164	4		4		4		4		4		4
100	22	20				12	9	14.5	M 16	x 1.5	166	4 ■		4 ■		4 ■		4 ■		4 ■		4 ■
110	25	25				14	11	17	M 18	x 1	184	4		4		4		4		4		4
110	25	22				14	11	16.5	M 18	x 1.5	186	4 ■		4		4		4 ■		4		4
125	25	25				16	12	19	M 20	x 1	204	4		4		4		4		4		4
125	25	22				16	12	18.5	M 20	x 1.5	206	4 ■		4 ■		4 ■		4 ■		4 ■		4 ■
125	25	25				18	14.5	21	M 22	x 1	224	4		4		4		4		4		4
125	25	25				18	14.5	20.5	M 22	x 1.5	226	4 ■		4		4		4 ■		4		4
140	28	22				18	14.5	22.5	M 24	x 1.5	246	4 ■		4 ■		4 ■		4 ■		4 ■		4 ■
												■ = Stock				EDP: T184 M 12x1.5 = 2502018410126

We reserve the right to make technical changes.
