Zoller SmileCompact

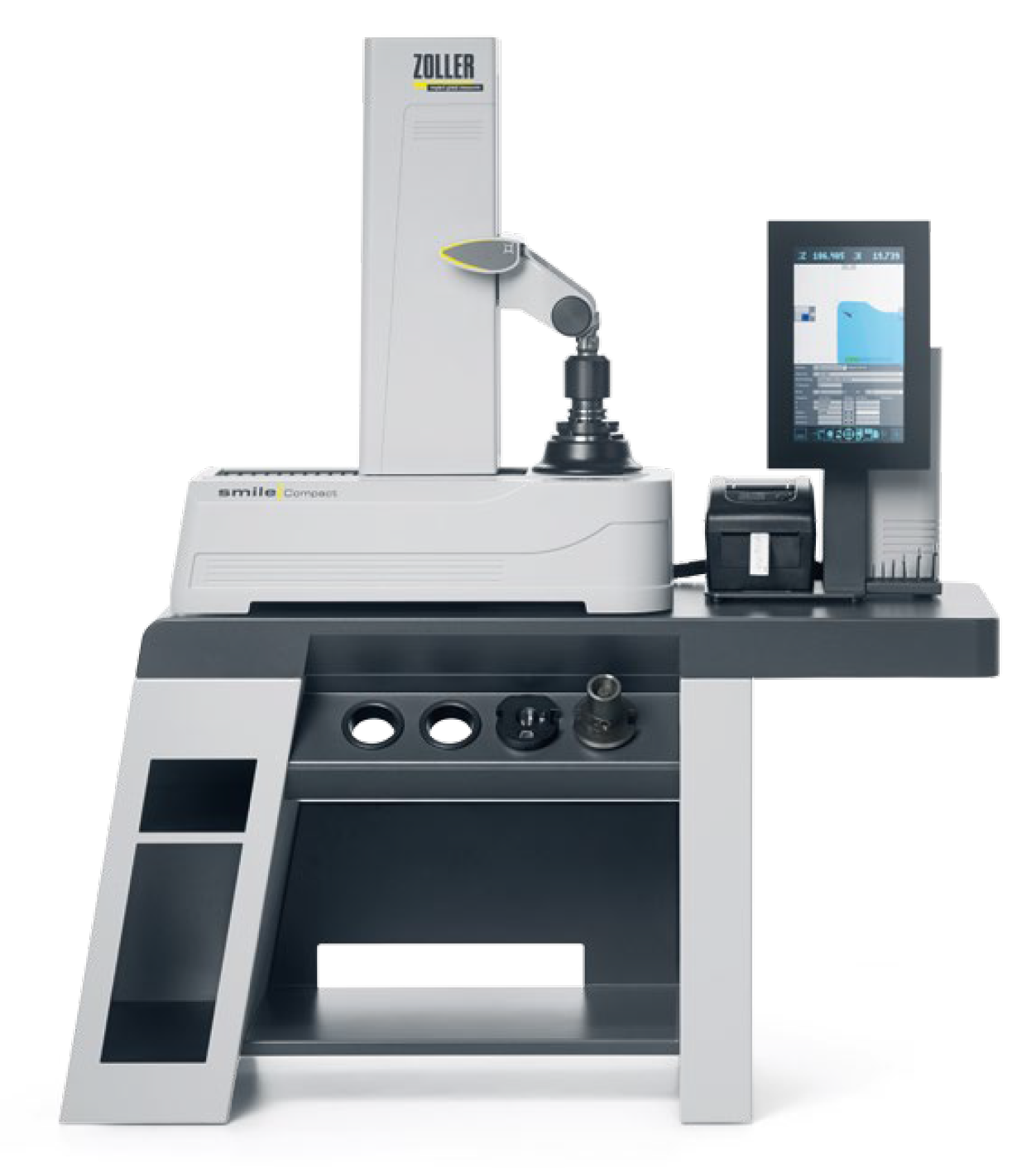

»smileCompact« is the perfect entry point into the world of ZOLLER! Absolute precision, simple operation, fast results. ZOLLER »smileCompact« is ideal for all standard tools and designed for the tool requirements of medium-sized and small batch sizes. Robust, space-saving, and flexibly — and can be placed directly beside the CNC machine, on the shop floor, or in production islands.

Efficient – Maximum scope of services in the
entry-level price segment

Long machine life – Use of high quality brand
components

Simple – ZOLLER image processing »pilotStarter«
on 13"' Panel PC

Quick – Standard measurements with a single click

Space-saving – Compact table top design

Flexible Placemanet – Next to the CNC machine,
on the shop floor, in manufacturing islands

User-friendly – Membrane keypad for power-
activated spindle clamping and spindle indexing

Technical data	Measuring range Z	Measuring range X	Diameter Ø	Snap gage Ø
»smileCompact«	350 mm 13.8 inch	160 mm 6.3 inch	320 mm 12.6 inch	0 mm
Drive	● Manual
Measuring Machine Control	● 13.3" »pilotStarter«
Machine Spindle	● SK 50 High-precision Spindle, Spindle Hand Wheel
Automatic Zero-point Monitoring	●
Machine Spindle	● Manual
Cutting Edge Inspection	●
Machine Table	☉
Membrane Keypad	●
Adjustable Air Valve with Water Drain	●
● standard ☉ option

   Simple, fast, and operator-independent.
   Provides all standard measurements such
   as the length and cross dimension, radius,
   angle, concentricity, and axial runout at the
   push of a button.

The »elephant« measuring program assistant for the easy measurement of a wide range of parameters for various tool types — without any special training or prior knowledge.

Software function for determining and measuring the maximum contour of all the cutting edges of a tool.

Projector function and cutting edge inspection for the qualitative assessment of the cutting tool edge.

Table with storage boards

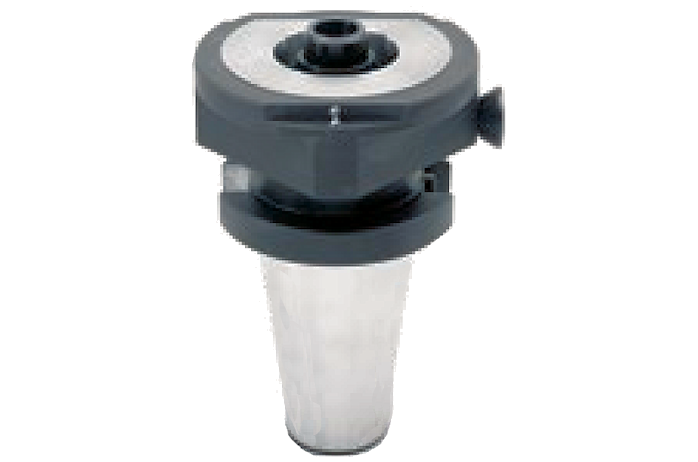

SK 50 High-precision Spindle
SK 10 to SK 60 steep taper	HSK 25 to HSK 125 hollow taper shunk	VDI cylinder shaft VDI 16 to VDI 60
Kennametal	Coromant-Capto from C3 to C8	Hydro expansion
