   3-jaw Chuck  Serration 90°  Serration 60°  Pipe  Bar  Flange  Disc  Length Machining  Side Machining |

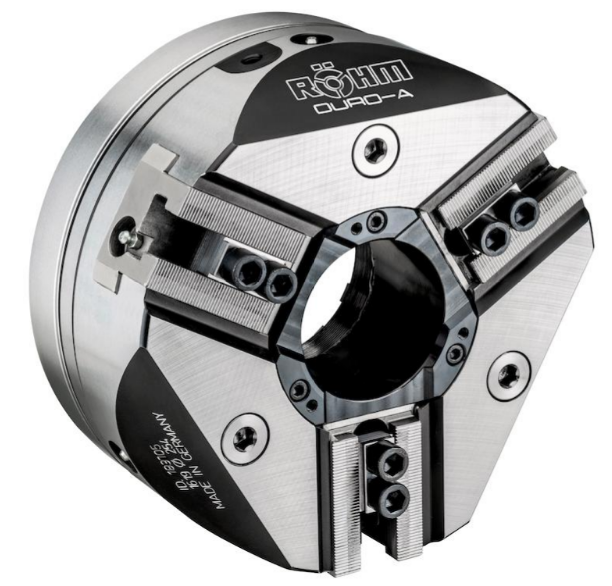

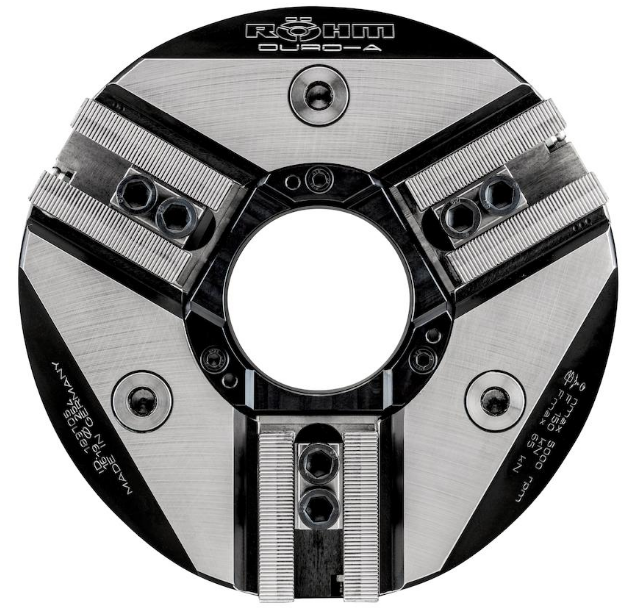

Power Chucks with Through-hole DURO-A - Constant clamping force for more than 500,000 cycles   |

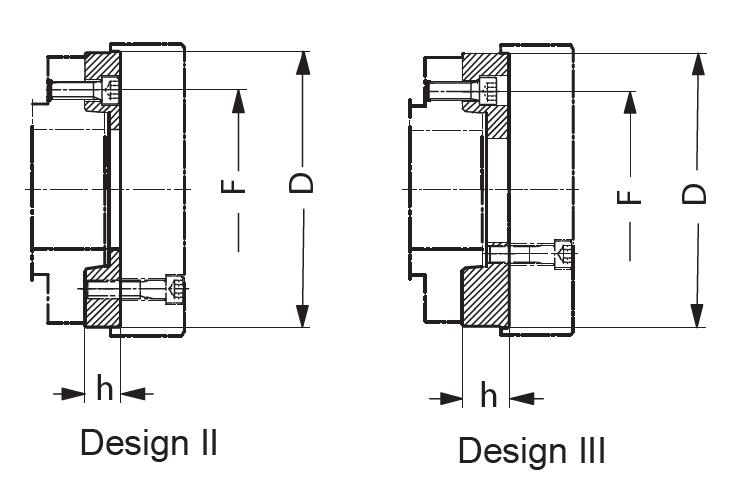

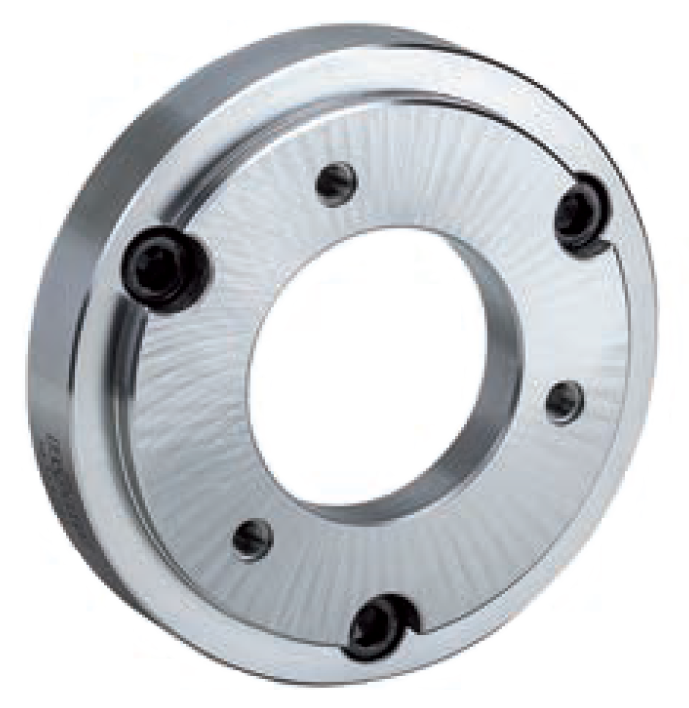

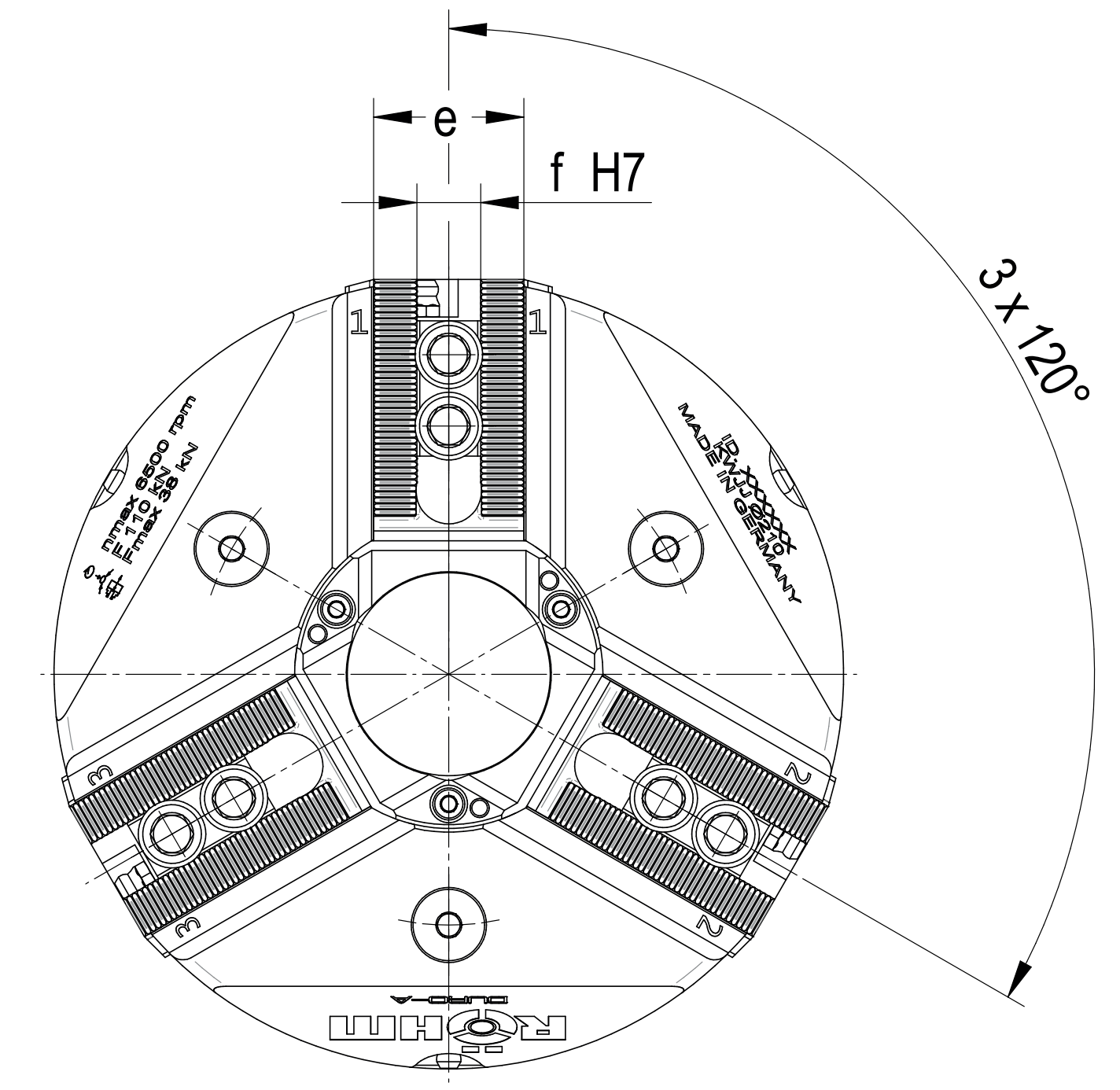

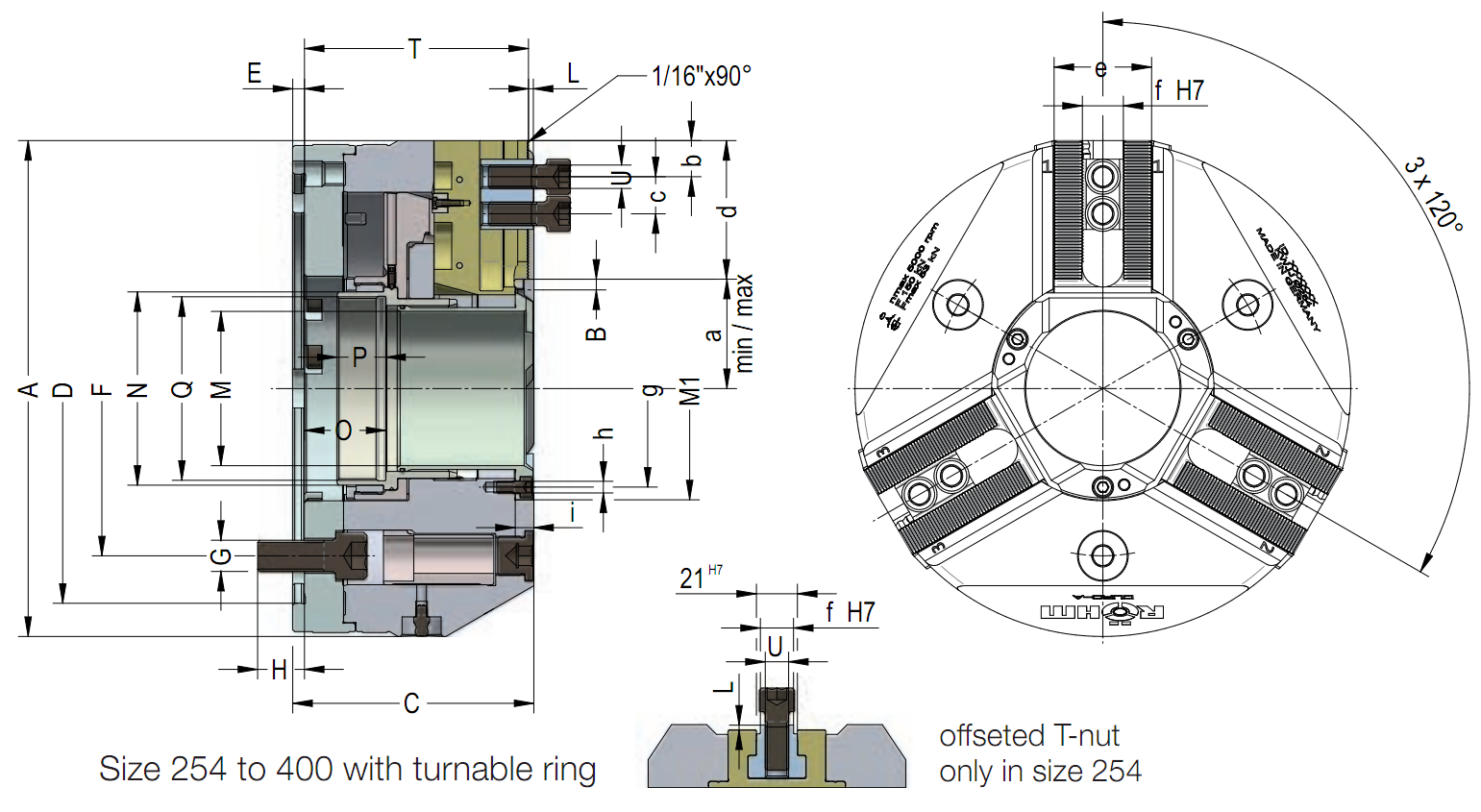

APPLICATION Premium power chuck with through-hole for the machining of bar, pipes and discs. With constant clamping force distribution for more than 500,000 cycles. TYPE Power chuck available with cylindrical centre mount. Connection dimensions according to DIN ISO 702-4. Adaption to short taper mount DIN ISO 702-1. 3-jaw version with serration 90° and 60°. TECHNICAL FEATURES - Up to 30% larger through-hole and up to 35% more maximum speed for a broader range of applications compared to similar power chucks |
 |
| - Optimized centrifugal force behavior and low centrifugal force losses and high speeds thanks to special wedge hook system with annular piston - High concentricity of 0.01 mm (for milled top jaws) through precision manufacturing CUSTOMER BENEFITS » Constant clamping force for more than 500,000 cycles » Up to 30% higher maximum clamping force » 3-year warranty (pursuant to DURO-A warranty) » Weight reduction of up to 10% by reducing overall height, as well as increased work envelope due to improved interference contours |
|

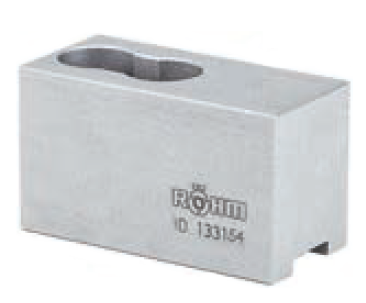

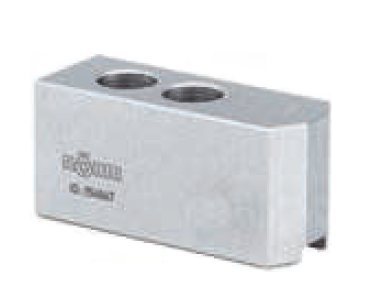

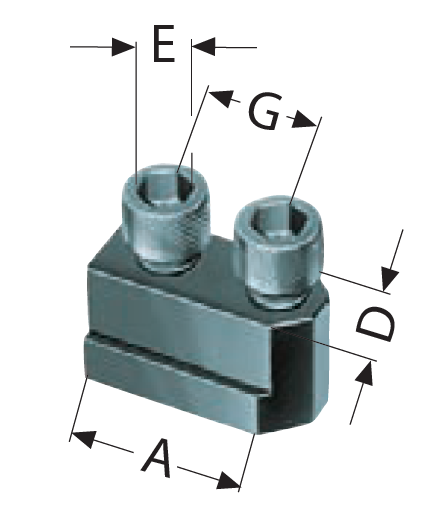

| Included in the scope of delivery: Chuck, chuck and jaw mounting screws, mounting wrench, slot nuts (without top jaws) |
|
