Drill / Chamfering Tools |
| Part nr. 20042 |
||||||||||||

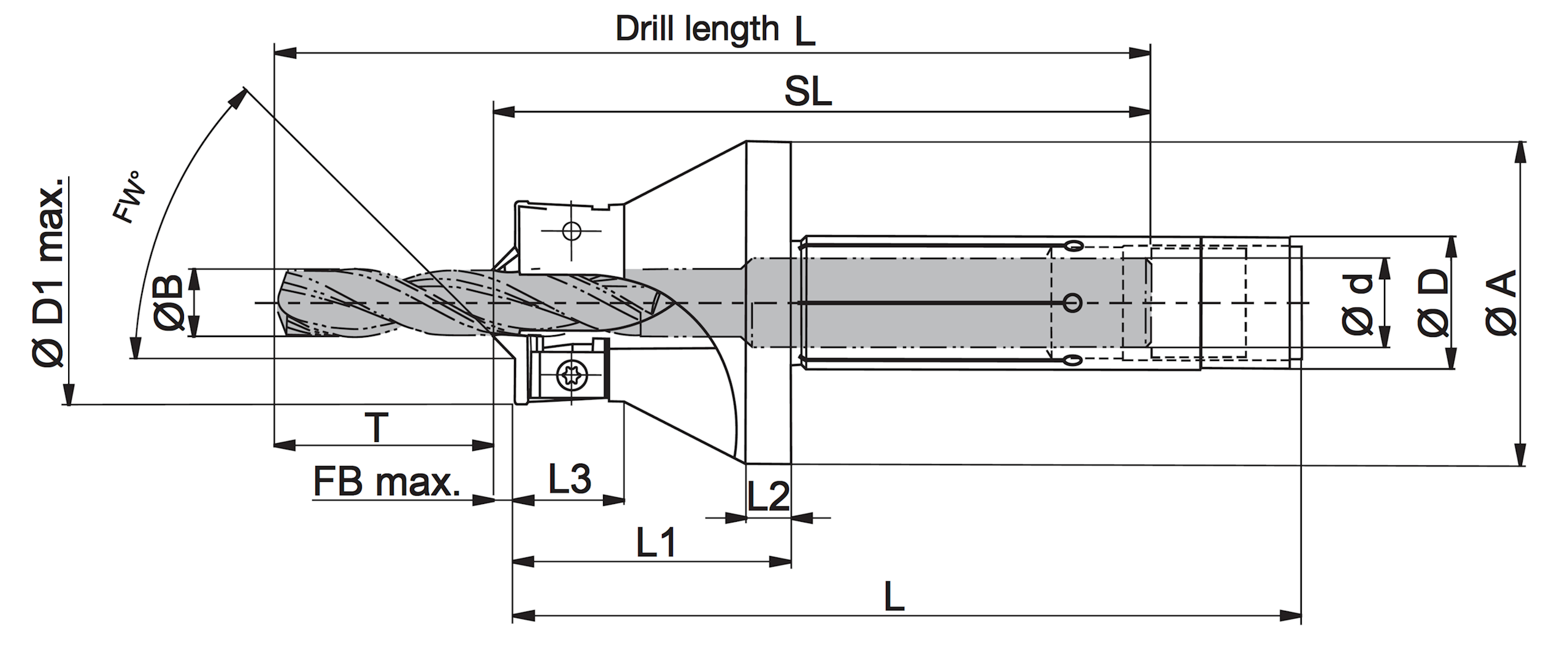

| Code | Drawing nr. | Ø B | FB max. | Ø D | Ø d | Ø A1 | L | L1 | L2 | L3 | Ø D1max | Insert |
| 6,012 | H2006-1206 0000R | 4.0 - 6 | 1.8 | 12 | 6 | 29 | 70 | 25 | 4 | 10 | 18.3 | W2006-…. L |
| 8,012 | H2006-1208 0000R | 6.1 - 8 | 1.8 | 12 | 8 | 29 | 70 | 25 | 4 | 10 | 20.2 | W2006-…. L |
| 6,020 | H2006-2006 0000R | 4.0 - 6 | 1.8 | 20 | 6 | 35 | 75 | 25 | 4 | 10 | 18.5 | W2006-…. L |
| 8,020 | H2006-2008 0000R | 6.1 - 8 | 1.8 | 20 | 8 | 35 | 75 | 25 | 4 | 10 | 20.2 | W2006-…. L |
| 10,020 | H2006-2010 0000R | 8.1 - 10 | 1.8 | 20 | 10 | 35 | 75 | 25 | 4 | 10 | 22.2 | W2006-…. L |
| 12,020 | H2006-2012 0000R | 10.1 - 12 | 1.8 | 20 | 12 | 35 | 75 | 25 | 4 | 10 | 24.4 | W2006-…. L |
| 6,032 | H2006-3206 0000R | 4.0 - 6 | 1.8 | 32 | 6 | 46 | 90 | 30 | 5 | 10 | 18.3 | W2006-…. L |
| 8,032 | H2006-3208 0000R | 6.1 - 8 | 1.8 | 32 | 8 | 46 | 90 | 30 | 5 | 10 | 20.2 | W2006-…. L |
| 10,032 | H2006-3210 0000R | 8.1 - 10 | 1.8 | 32 | 10 | 46 | 90 | 30 | 5 | 10 | 22.4 | W2006-…. L |
| 12,032 | H2006-3212 0000R | 10.1 - 12 | 1.8 | 32 | 12 | 46 | 90 | 30 | 5 | 10 | 24.4 | W2006-…. L |
| 14,020 | H3006-2014 0000R | 12.1 - 14 | 2.5 | 20 | 14 | 35 | 75 | 25 | 4 | 12 | 31.7 | W3006-…. L |
| 16,020 | H3006-2016 0000R | 14.1 - 16 | 2.5 | 20 | 16 | 35 | 75 | 25 | 4 | 12 | 33.6 | W3006-…. L |
| 14,032 | H3006-3214 0000R | 12.1 - 14 | 2.5 | 32 | 14 | 46 | 90 | 30 | 5 | 12 | 31.7 | W3006-…. L |
| 16,032 | H3006-3216 0000R | 14.1 - 16 | 2.5 | 32 | 16 | 46 | 90 | 30 | 5 | 12 | 33.6 | W3006-…. L |
| 18,032 | H3006-3218 0000R | 16.1 - 18 | 2.5 | 32 | 18 | 46 | 90 | 30 | 5 | 12 | 35.5 | W3006-…. L |
| 20,032 | H3006-3220 0000R | 18.1 - 20 | 2.5 | 32 | 20 | 46 | 90 | 30 | 5 | 12 | 37.7 | W3006-…. L |
| Ordering example: Part number + Code = Ordering number e.g. Clamping set for H 2006-… = Ordering number 20067 2,000 Spare Parts |
||||||||||||
| Part nr. 20067 |
||||||||||||
| Code | Drawing nr. | Clamping set for | Tx | |||||||||
| 2,000 | E4890 | H2006-... | 6 | |||||||||
| 2,500 | E4991 | H3006-... | 8 | |||||||||
We reserve the right to make technical changes.
