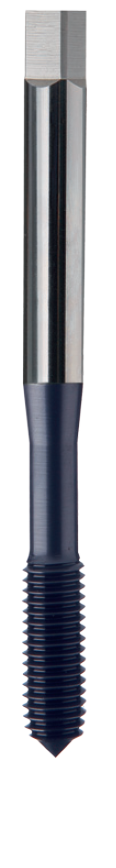

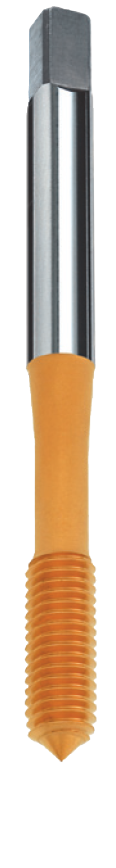

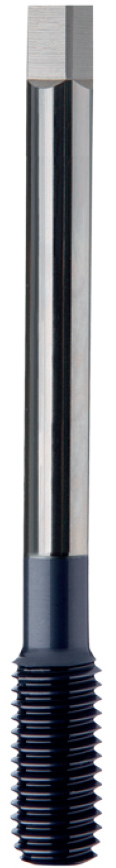

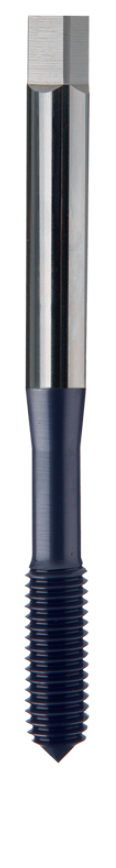

Ferg Threading Taps M T173A, T173, A173A, A173, AC173A, AC173

Threading Taps
ISO Metric coarse thread DIN 13

Any material with at least 12% elongation (cold forming)									High speed steel class E with 3% vanadium 1.3344 (EMo5V3) (M-3/2)		DIN 371 T173A 2000017310	DIN 376 T173 2500017310	DIN 371 T173A 2000217310	DIN 376 T173 2500217310	DIN 371 A173A 2000017312	DIN 376 A173 2500017312	DIN 371 A173A 2000217312	DIN 376 A173 2500217312	DIN 371 AC173A 2000017317	DIN 376 AC173 2500017317	DIN 371 AC173A 2000217317	DIN 376 AC173 2500217317
									HOLE		≤ 2.5 x d₁ Blind and through hole		≤ 2.5 x d₁ Blind and through hole		≤ 2.5 x d₁ Blind and through hole		≤ 2.5 x d₁ Blind and through hole		≤ 2.5 x d₁ Blind and through hole		≤ 2.5 x d₁ Blind and through hole
									Chamfer lead acc. to DIN 2197		C = 2.5xP		C = 2.5xP		C = 2.5xP		C = 2.5xP		C = 2.5xP		C = 2.5xP
									LIMIT		6HX		6GX		6HX		6GX		6HX		6GX
									COATING		TiN coating (Titanium nitride)		TiN coating (Titanium nitride)		TiAlN coating (Titanium Aluminium Nitride)		TiAlN coating (Titanium Aluminium Nitride)		AlCrN coating (Aluminium Chrome Nitride)		AlCrN coating (Aluminium Chrome Nitride)
									DIN		371	376	371	376	371	376	371	376	371	376	371	376
									ORDER No. EDP = Nr.+ ★		DIN 371 2000017310* T173A		DIN 371 2000217310* T173A		DIN 371 2000017312* A173A		DIN 371 2000217312* A173A		DIN 371 2000017317* AC173A		DIN 371 2000217317* AC173A
l₁ mm	l₂ mm	l₃ mm	DIN 371		DIN 376		mm	d₁ mm	P mm	★	DIN 376 2500017310* T173		DIN 376 2500217310* T173		DIN 376 2500017312* A173		DIN 376 2500217312* A173		DIN 376 2500017317* AC173		DIN 376 2500217317* AC173
			d₂ mm	a mm	d₂ mm	a mm
											Z		Z		Z		Z		Z		Z
45	9	-	2.8	2.1			1.82-1.78	M 2	(0.4)	020	3 ■		3 ■		3 ■		3 ■		3 ■		3 ■
45	9	-	2.8	2.1			2.02-1.98	M 2.2	(0.45)	022	3		3		3		3		3		3
45	9	-	2.8	2.1			2.12-2.08	M 2.3	(0.4)	023	3		3		3		3		3		3
50	9	-	2.8	2.1			2.32-2.28	M 2.5	(0.45)	025	3 ■		3 ■		3 ■		3 ■		3 ■		3 ■
50	9	-	2.8	2.1			2.42-2.38	M 2.6	(0.45)	026	3		3		3		3		3		3
56	11	16	3.5	2.7	2.2	-	2.83-2.77	M 3	(0.5)	030	3 ■		3 ■		3 ■		3 ■		3 ■		3 ■
56	12	17	4	3	2.5	2.1	3.28-3.22	M 3.5	(0.6)	035	4 ■		4 ■		4 ■		4 ■		4 ■		4 ■
63	13	19	4.5	3.4	2.8	2.1	3.73-3.67	M 4	(0.7)	040	4 ■		4 ■		4 ■		4 ■		4 ■		4 ■
70	14	22	6	4.9	3.5	2.7	4.18-4.12	M 4.5	(0.75)	045	4		4		4		4		4		4
70	15	29	6	4.9	3.5	2.7	4.68-4.62	M 5	(0.8)	050	5 ■		5 ■		5 ■		5 ■		5 ■		5 ■
80	17	30	6	4.9	4.5	3.4	5.60-5.50	M 6	(1)	060	5 ■		5 ■		5 ■		5 ■		5 ■		5 ■
80	17	31	7	5.5	5.5	4.3	6.60-6.50	M 7	(1)	070	5		5		5		5		5		5
90	20	35	8	6.2	6	4.9	7.45-7.35	M 8	(1.25)	080	5 ■		5 ■		5 ■		5 ■		5 ■		5 ■
100	22	38	10	8	7	5.5	9.35-9.25	M 10	(1.5)	100	5 ■		5 ■		5 ■		5 ■		5 ■		5 ■
110	24				9	7	11.25-11.15	M 12	(1.75)	120	6 ■		6 ■		6 ■		6 ■		6 ■		6 ■
110	26				11	9	13.15-13.05	M 14	(2)	140	6		6		6		6		6		6
110	27				12	9	15.15-15.05	M 16	(2)	160	6 ■		6 ■		6 ■		6 ■		6 ■		6 ■
125	30				14	11	16.95-16.85	M 18	(2.5)	180	6		6		6		6		6		6
140	32				16	12	18.95-18.85	M 20	(2.5)	200	6		6		6		6		6		6
140	32				18	14.5	20.95-20.85	M 22	(2.5)	220	6		6		6		6		6		6
160	34				18	14.5	22.70-22.60	M 24	(3)	240	6		6		6		6		6		6
							■ = Stock				EDP: A173A M 8-6G = 2000217312080

We reserve the right to make technical changes.
