| W1733 | W8008 |  Shank clamping flange |
 Shank round version |
 Carbide shank |
 Copying boring bars |
| W8003 | W5506 |
 |
Indexable Inserts precision ground for boring bars starting from 12 mm working diameter |

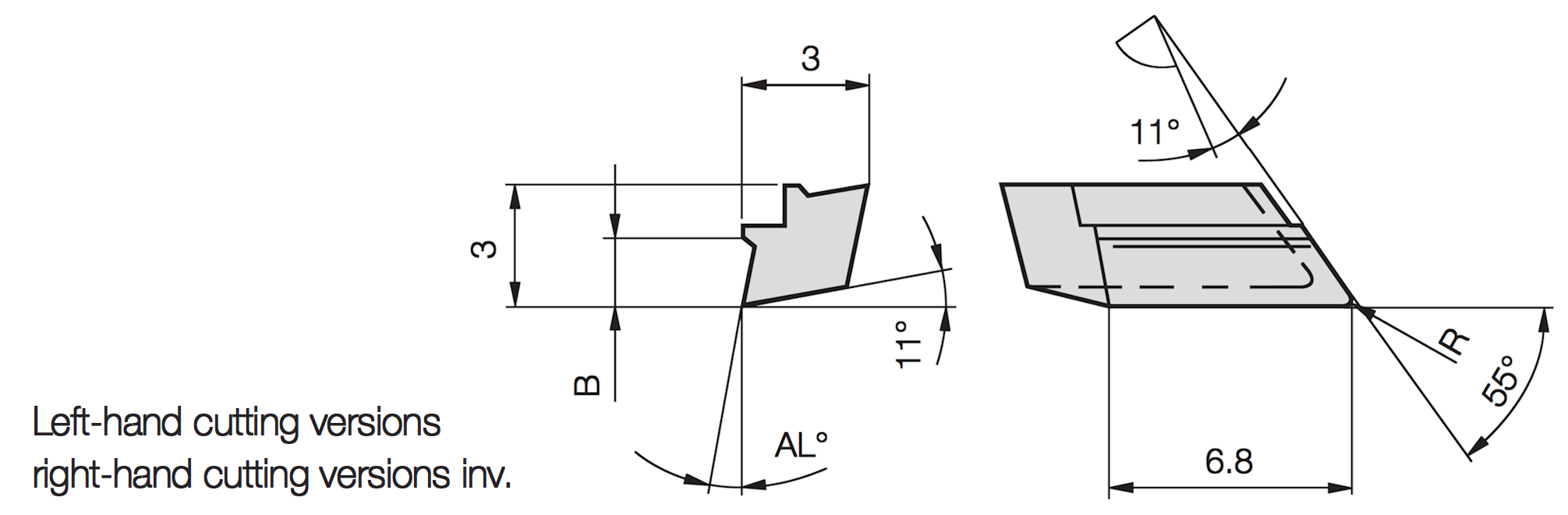

Insert W 5506-…. …. L/R* Carbide / carbide coated |
| Part nr. 20275 |
Part nr. 20276 |
Part nr. 20277 |
Part nr. 20278 |
Part nr. 20279 |
|||||
| uncoated | coated | ||||||||
| Code | Drawing nr. | R | B | AL° | P10 | P40 | K10 | H25 | H26 |
| 55,060 | W5506-0210 1000L | 0.2 | 1.0 | 10 | |||||
| 55,061 | W5506-0414 1000L | 0.4 | 1.4 | 10 | |||||
| 55,062 | W5506-0214 1620L | 0.2 | 1.4 | 16 | |||||
| 55,063 | W5506-0414 1620L | 0.4 | 1.4 | 16 | |||||
| H | H | ||||||||
| Part nr. 20280 |
Part nr. 20281 |
Part nr. 20282 |
Part nr. 20283 |
Part nr. 20284 |
|||||
| uncoated | coated | ||||||||
| Code | Drawing nr. | R | B | AL° | P10 | P40 | K10 | H25 | H26 |
| 55,060 | W5506-0210 1000R | 0.2 | 1.0 | 10 | |||||
| 55,061 | W5506-0414 1000R | 0.4 | 1.4 | 10 | |||||
| 55,062 | W5506-0214 1620R | 0.2 | 1.4 | 16 | |||||
| 55,063 | W5506-0414 1620R | 0.4 | 1.4 | 16 | |||||
| *Please note: Left-hand boring bars have to be fitted with right-hand inserts and right-hand boring bars with left-hand inserts! ex stock on request Ordering example: 1 piece W 5506-0210 1000 L H25 = Ordering number: 20278 55,060 |
|||||||||
We reserve the right to make technical changes.
